Specifications
1.Aviation Coalescer filter cartridge2.Graded pore structure
3.High dirt-holding capacity
4.ISO Certification

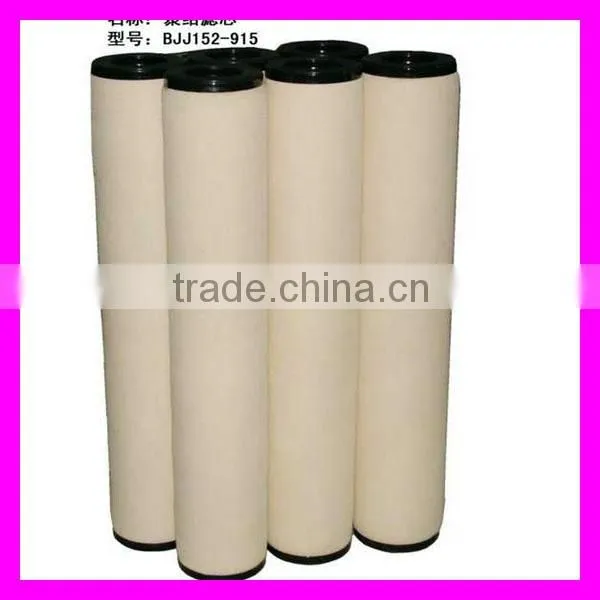

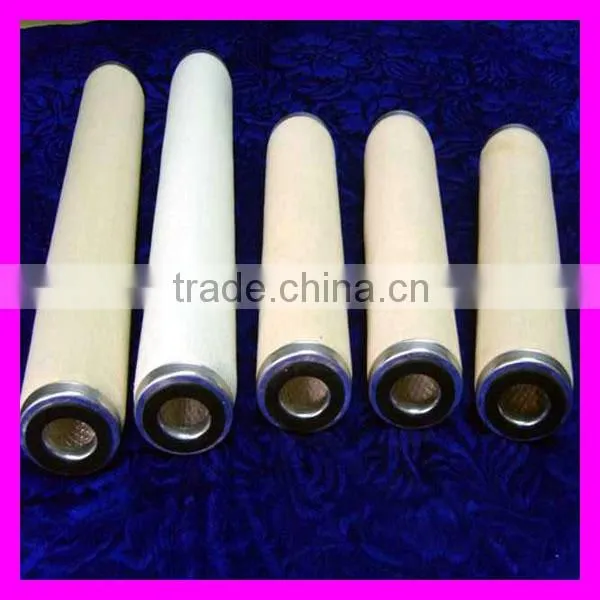

Avitation fuel oil filter cartridge
coalescer separator filter cartridges provide efficient and economical filtration
and coalescence of fluids in a wide range of applications where API certification
is not required. This broad range of liquid/liquid coalescers provides greater
coalescing efficiency and contaminant holding capacity than most conventional
coalescers or other separation techniques. As a result, Purolator industrial
coalescers improve product quality, reduce maintenance costs and help prevent
unscheduled shutdowns
Application
|
• Chemicals, Resins, and Solvents • Hydraulic Oils • Hydrocarbons • Petroleum Refining |
• Pipelines and Petroleum Terminals • Power Generation • Pulp and Paper Industry • Transformer Oils • Turbine Oils |
Features
|
• High Performance filter media provides effective particle removal and coalescence in a wide range of applications. • Proprietary design provides superior performance when compared to conventional coalescing cartridges. • Continuous lengths minimize process downtime, reduce cartridge change-out costs and eliminate filter bypass concerns. • Retention ratings available from 1 to 40 microns. • 90-95% nominal efficiency solids removal ratings.Water removal to 15 ppm. • Electro-tin plated components help prevent rust and corrosion. Coated components are available as standard options. • 75 psid burst strength permits use in demanding applications. |
Materials
| Filter Media Options: |
PCR, PCB, PCC Series: 2-25 micron: |
Combination fiberglass and cellulose medias with outer sock. |
|
PCIC Series: 1-40 micron: |
Wet glass shell, pleated media section and outer glass section with or without outer sock. | |
| Gasket Materials: | Standard: | Buna N (Standard) |
| Optional: | Vegetable Fiber, Neoprene, Viton,® Non-asbestos Replacement | |
| Metal Components: | Standard: | Electro-tin Plated Components |
| Optional: | Powder Coated Epoxy Components | |
| Optional (PCIC Only): | Non-metal components and synthetic end caps. | |
| Adhesives: | Thermoset PVC Urethane Epoxy | |
