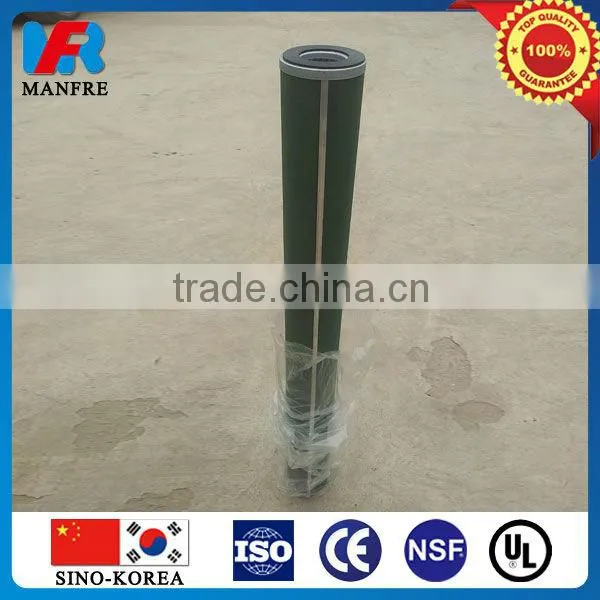

Help CenterOil Water Coalescer/separator Filter Cartridges (sino-korea Joint Enterprise)
Related Products
-
Replace Parker HCP Series Coalescer Filter Element For Industrial ApplicationsUS$ 30 - 200MOQ: 10 Pieces -
Replace Parker HCP43610S Coalescer Filter Element For Industrial ApplicationsUS$ 30 - 200MOQ: 10 Pieces
-
Coalescing Oil Filter Element by ManufacturerUS$ 50 - 100MOQ: 5 Pieces
-
High Precision Coalescing Filter Element for Aviation and Industrial UseUS$ 50 - 100MOQ: 5 Pieces
-
Coalescer Filter Cartridges in Aviation and IndustrialUS$ 50 - 100MOQ: 5 Pieces
Specifications
1.Oil spearator spearator cartridge2.TCS medium is 200 mesh stainless steel screen
2.Tubes are aluminum
4.ISO Test
Velcon SO series Separator Cartridges Filter/Separator 2nd Stage Elements
1.Features
1.Optimum 2nd stage water removal
2.Choice of Teflon ®Coated Screen, Synthetic or Pleated Paper Media
3.Field proven performance
4.Largest selection of replacement elements
2.General Function
Separator Cartridges are employed as the second stage in filter/separator vessels. Their sole function is to repel coalesced water drops produced by the first stage cartridges while allowing hydrocarbon fluids to pass through. Water drops settle into the filter/separator sump and are not carried downstream. All particle filtering is done by the first stage coalescer cartridge.
3.How Separator Cartridges Work
Flow direction is from outside-to-inside. water being repelled by the hydrophobic separator medium on the cartridge’s outside surface. Hydrocarbon fluids, on the other hand, easily pass through and exit the separator cartridge. Cartridges with three different types of repelling media are offered:
Teflon Coated Screen (TCS) Cartridges
are, by far, the most popular type of separator cartridge. With proper cleaning and inspection , cost effective TCS elements can be reused over many coalescer cartridge changeout cycles.
And, TCS cartridges generate considerably less static charge than pleated paper cartridges. These features have made them the preferred choice for aircraft fueling applications.
Pleated Paper Cartridges
cannot be reused and are replaced at every coalescer cartridge changeout. They are often used with diesel and other fuel oils which may contain materials that adhere to TCS cartridges and cannot be cleaned off.
Synthetic Media Cartridges
can be cleaned a maximum of two times. They are intended for customers who do not want to take the time to clean separators.
4.Separator Cartridge Performance
Maintaining a uniform flow along the length of the cartridge optimizes performance and reduces the number of cartridges required. Flow is controlled by a tube, inside each cartridge, through which the hydrocarbon fluid exits the cartridge and the filter/separator vessel. Two styles of inner tube are offered. See bottom photo.
Cartridges with uniform hole pattern inner tubes are adequate for many applications. However, where optimum flow distribution is required, cartridges with variable hole pattern inner tubes are recommended. When converting older equipment, a lesser number of variable hole pattern cartridges is usually required. Operating costs will therefore be reduced.
5.General Specifications
TCS medium is 200 mesh stainless steel screen coated on both sides with green Teflon. The screen
is lockseam folded and fastened with an internal aluminum clip.
Pleated medium is silicone treated resin impregnated paper with a protective outer aluminum screen jacket.
Tubes are aluminum
End caps are aluminum and/or glass filled nylon.
Gaskets : are Buna-N.
pH range: is 5 to 9.
Maximum operating temperature: is 200°F
