1.Product summarize
ZDM120 series include “With digital display tube” and“Without digital display tube”, support
contactless cards read and write, which absorbs the advantages of various products on the market, owns powerful function and good compatibility.

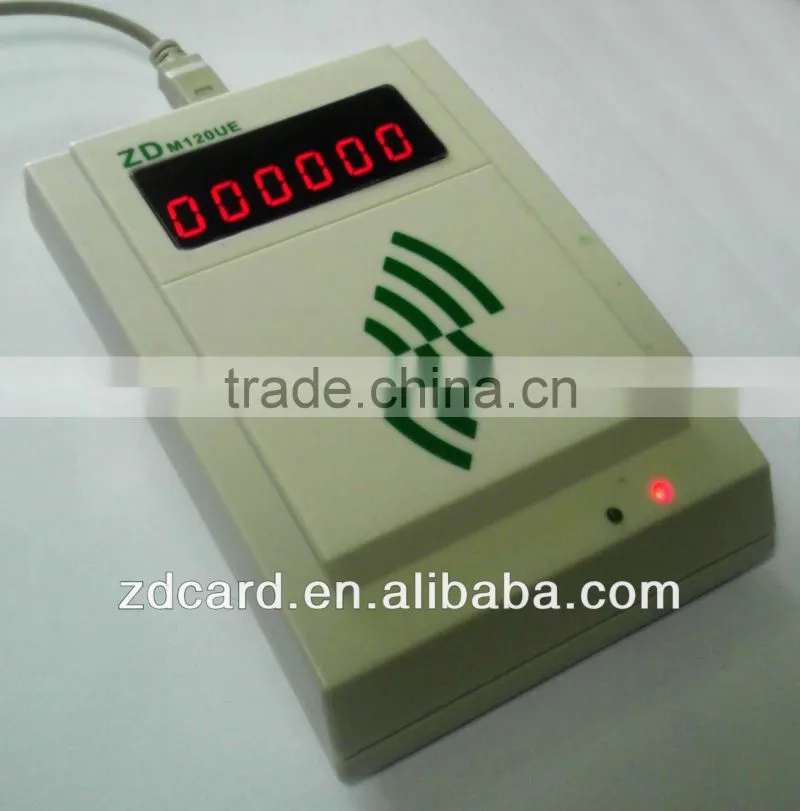

2. Product picture
3. Main feature
Ø Upgrading online could be realized
Ø LED demonstrated ;
Ø Buzzer indicating
Ø Status indicator lamp
Ø The basic parameters
Ø Operating frequency: 13.56 MHz
Ø Power: USB
Ø Voltage: DC5V
Ø Size (mm):140X100 X 30
Ø Color: white
Ø Reading distance: 0--80mm
Ø Meet protocol : ISO/IEC 14443 TypeA,ISO/IEC 14443 TypeB,ISO/IEC 15693,ISO/IEC 7816;
Ø Communication mode: USB2.0(No drive HID)/RS232/485;
Ø Cable communication distance (max) :3m
Ø The difference between each model
Without digital display tube
Model |
Operating frequency |
Security mechanism |
Read& write |
Meet protocol |
Communication port |
ZDM121U |
13.56 |
contactless |
15693/14443A |
USB |
|
ZDM121R |
13.56 |
contactless |
15693/14443A |
RS232 |
|
ZDM120U |
13.56 |
contactless |
14443A |
USB |
|
ZDM120R |
13.56 |
contactless |
14443A |
RS232 |
|
ZDM122U |
13.56 |
contactless |
14443A/14443B |
USB |
|
ZDM124U |
13.56/3.6 |
PSAM |
contactless / contact |
14443A/7816 |
USB |
With digital display tube
|
Model |
Operating frequency |
Security mechanism |
Read & write |
Meet protocol |
Communication port |
ZDM121UE |
13.56 |
contactless |
15693/14443A |
USB |
|
ZDM121RE |
13.56 |
contactless |
15693/14443A |
RS232 |
|
ZDM120UE |
13.56 |
contactless |
14443A |
USB |
|
ZDM120RE |
13.56 |
contactless |
14443A |
RS232 |
|
ZDM122UE |
13.56 |
contactless |
14443A/14443B |
USB |
|
ZDM124UE |
13.56/3.6 |
PSAM |
contactless / contact |
14443A/7816 |
USB |
4. Basic operation
Ø Drivers
Drive is not needed
Ø Micro USB
Ø Micro USB contact with computer USB or RS232, to make sure it link with the upper machine.
Ø ON/OFF
Ø Connected with the computer,the buzzer rings once and the digital tube display 6 "0", the red
power indicator light is lit, it means auto power On.
Ø Online
Ø During on-line control mode, the reader & writer link with the upper machine, reading card is realized by the
upper machine command control, the result go back to upper machine by card reader.
Ø Special instructions
Ø This product provides a second interface development, Windows demonstration program,
support upgrade online.
Ø Notes
² When card swiped, it should be put on the card area where has been noted in the front of the card
reader . The distance between card and the surface of the card reader front, with warranty card could
be read and wrote correctly.
² The duration could’t be too short when swiping card, otherwise the reader too late to read and
write card.
² The card reader/writer belongs to the electronic products, avoid by all means is water, otherwise
internal short circuit and damage to the machine.
² The card reader/writer exchanging data with induction IC card by radio frequency , therefore the
metal can’t between card reader/writer and induction IC card, otherwise radio frequency will be
shielded.
5. Product application
All kinds of IC card, staff attendance, access control, logistics, industrial control, library, mall,
membership system, special equipment and financial payment, etc.
6. After service
If the Reader/writer failure, please contact with local maintenance station quickly, or contact with our
company sales service department, must not disassemble & maintenance, lest cause unnecessary
loss.
Ø “7 days ”guarantee for returns: If the goods performance failures occur within 7 days from the
date of sold consumers can choose to return, exchange or repair.
Ø “15 days”guarantee for replacement:If the goods performance failures occur within 15 days from
the date of sold, consumers can choose to exchange or repair.
Ø One Year Repair :If the goods performance failures occur within 1 year from the date of sold, our
company will provide free maintenance services.
