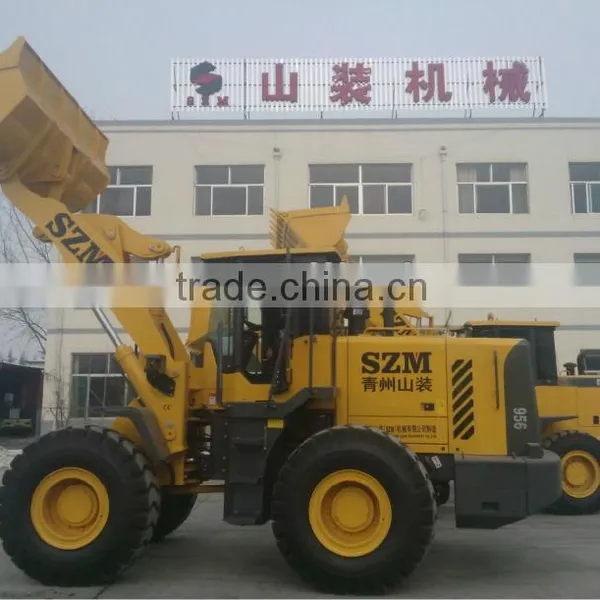

Help CenterSZM 5ton Top Quality Shovel Loader 956/856 With CAT Licensed C6121 Engine Made in China
Related Products
-
5TON Wheel Loader 958/956/955/953/950 WITH CE/with Original Cummins Engine Made in ChinaUS$ 41,000 - 48,000MOQ: 1 Set -
Wheel Loader Zl50 With CUMMINS/Cater6121 Engine ZF-gearbox Joystick Pilot Air Conditoner for ExportingNegotiableMOQ: 1 Set
-
New Type 2000kg Wheel Loader High Quality 1.1m3 Bucket Capacity for RussiaUS$ 8,000 - 15,000MOQ: 1 Set
-
New Type 2000kg Wheel Loader CE /Euro3/1.1m3 Bucket Capacity/jostick/air ConditionerUS$ 8,000 - 15,000MOQ: 1 Set
-
Mini Construction Machinery 916 Wheel Loader With 4wdUS$ 10,000 - 19,800MOQ: 1 Set
1.Good cost performance
2.High productivity
3.Good capability in climbing the slope
4.Operation flexible
5.Safe and reliable
6. High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
7. Good capability in climbing the slope: 4-wheel driven, strong driving power.
8. Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.
nudewe can perform according customers' requirements.
ZL50G 5tons Front Wheel loader with CE made in china
Performance |
1 |
rated loading |
1600kg |
2 |
overall weight |
4800kg |
|
3 |
rated bucket capacity |
0.9m3 |
|
4 |
maximum tractive force |
≥34KN |
|
5 |
maximum breakout force |
≥51KN |
|
6 |
maximum grade ability |
30°C |
|
7 |
maximum dump height |
2330mm |
|
8 |
maximum dump reach |
800mm |
|
9 |
overall dimension (L×W×H) |
5182×1910×2712mm |
|
10 |
minimum turning radius |
4367mm |
|
Engine |
11 |
model |
Wei chai ZH4100G14-3 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4—100×125mm |
|
14 |
rated power |
45kw—2200r/min |
|
15 |
maximum torque |
250N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ1—26501 |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral |
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheelbase (mm) |
2150mm |
|
24 |
wheel tread |
1440mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
Qing Zhou Shanzhuang Machinery Co., Ltd. (SZM) is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.
We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.
Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.
If you're interested in wheel loaders, please feel free to contact with us. We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
