Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Wheel Loader Zl50 With CUMMINS/Cater6121 Engine ZF-gearbox Joystick Pilot Air Conditoner for Exporting

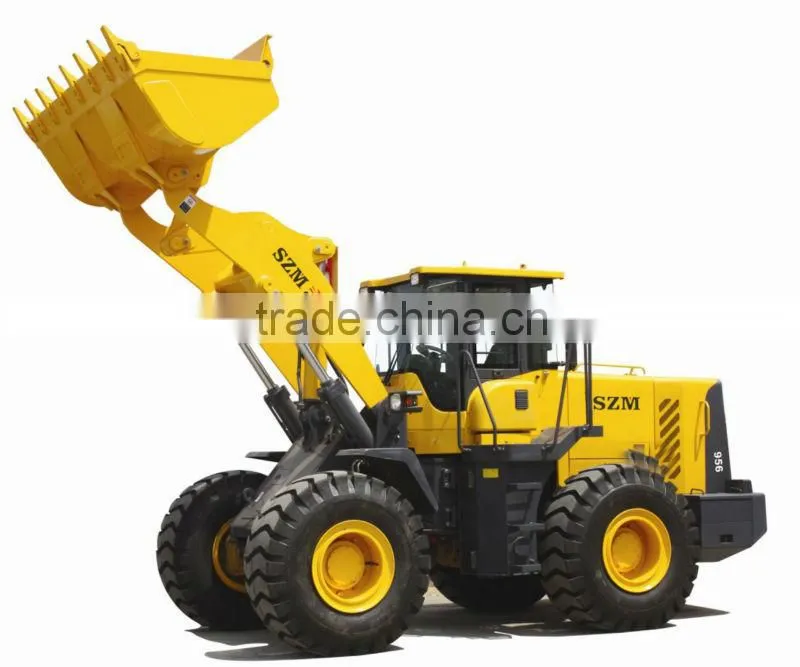

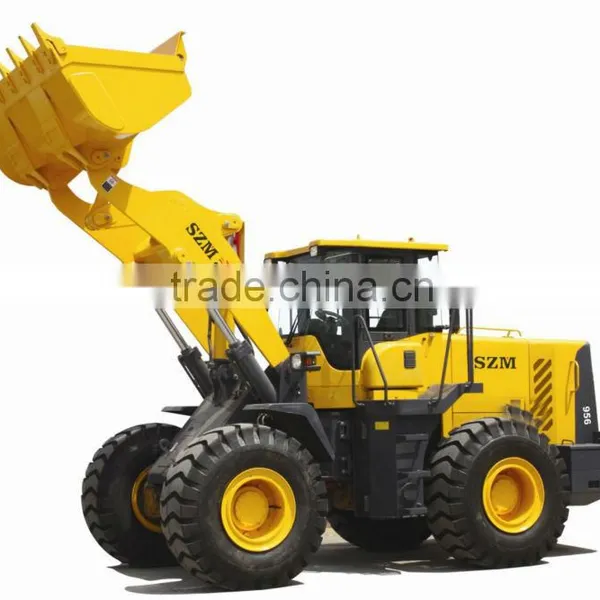

Wheel Loader Zl50 With CUMMINS/Cater6121 Engine ZF-gearbox Joystick Pilot Air Conditoner for Exporting
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SZM
Model Number:
956
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Type 2000kg Wheel Loader High Quality 1.1m3 Bucket Capacity for RussiaUS$ 8,000 - 15,000MOQ: 1 Set -
New Type 2000kg Wheel Loader CE /Euro3/1.1m3 Bucket Capacity/jostick/air ConditionerUS$ 8,000 - 15,000MOQ: 1 Set
-
Mini Construction Machinery 916 Wheel Loader With 4wdUS$ 10,000 - 19,800MOQ: 1 Set
-
ZL-936F WHEEL LOADER,3.6TON,DEUTZ/CUMMINS ENGINE PILOT CONTROL A/C AND WHEEL LOADER TIRE FOR 17.5-25US$ 300 - 30,000MOQ: 1 Set
-
ZL12 Mini Wheel Loader 912 Quick Attach Pallet Forks Joystick Control for Farming With Option Attachments Wheel Loader for SaleUS$ 8,800 - 12,800MOQ: 1 Set
Condition
New
Brand Name
SZM
Model Number
956
Place of Origin
Shandong, China
Type
Other, Front Loader, Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
(Long * Breadth * High) 7885X3000X3300
Rated Load
5000kg
Certification
CE
Warranty
long
After-sales Service Provided
Engineers available to service machinery overseas

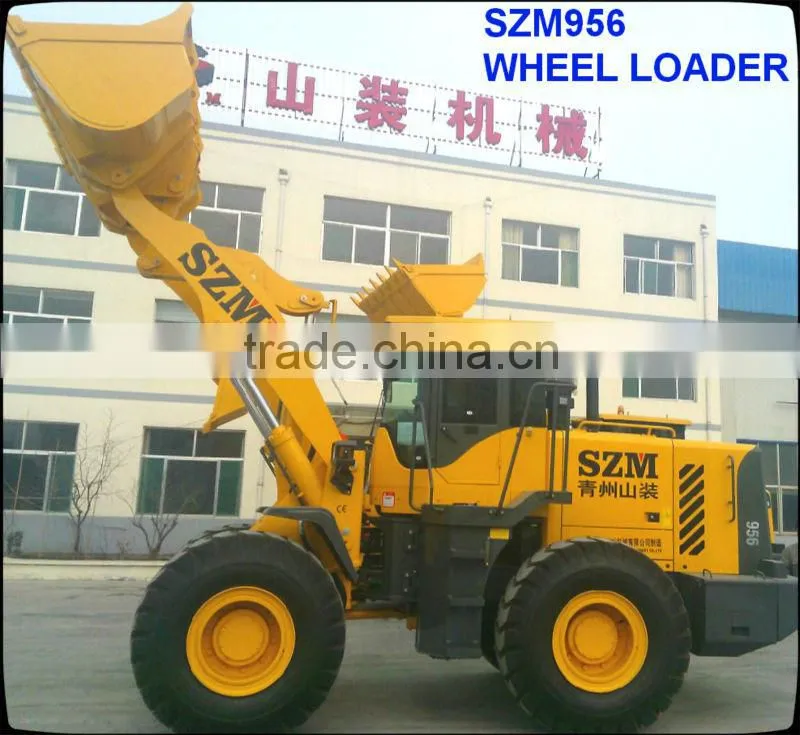

New product 956 wheel loader Steyr engine
| Specification | Rating loading capacity | 5000 kg | Travel speed | Forward 1st gear | 10 km/h | ||
| Bucket capacity | 3 m³(standard bucket) | ||||||
| optional bucket | 2.5m³(rock bucket) ;2.7 m³; | Forward 2nd gear | 34 km/h | ||||
| 3.6 m³ (lightweight bucket) | |||||||
| Dumping height | 3205 mm | Reverse 1st gear | 13 km/h | ||||
| Dumping reach | 1200 mm | ||||||
| Max. lifting height | 4315 mm | Diesel engine | Modl | standard | Steyr WD10G220E11 | ||
| optional | Xichai6110/Deutz | ||||||
| System pressure | 16 Mpa | Rating power | 162 kw | ||||
| Arm lifting time | ≤ 6.5s | Rating rev. | 2200 r/min | ||||
| Arm declining time | ≤ 4.5s | Min. specific fuel consumption | 215 g/kw.h | ||||
| Bucket forward tilting time | ≤ 2.5s | Transmission | type of torque converter | Dual-turbine type | |||
| Breakout force | 154 kN | Stall torque ratio | 4 | ||||
| Min. turning radius(center of outside wheels ) | 5745 mm | Oil pressure of torque converter inlet | 0.3 - 0.45 Mpa | ||||
| Type of Gearbox | Planetary, hydraulic powershift | ||||||
| Working pressure of steering system | 16 Mpa | Oil capacity | Fuel tank | 278 L | |||
| Max. turing angle | 38° | Hydraulic system | 278 L | ||||
| Wheelbase | 3200 mm | Engine oil | 20 L | ||||
| Tread | 2200 mm | Gearbox | 45 L | ||||
| Tyre | specification | 23.5-25 | Axles and final drive | 83 L | |||
| Air pressure | Front 0.32 Mpa Rear 0.28 Mpa | Brake system | 3.52 L | ||||
| Operation weight | 16500kg | Axles | Type of main transmission | Spiral bevel gear | |||
| Dimension | Overall length | 7785 mm | Reduction ratio | 5.286 | |||
| Overall width | 3000 mm | Type of final drive | Spur planetary gear | ||||
| Overall height | 3350 mm | Reduction ratio | 4.26 | ||||
is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.
We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.
Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc
1.Delivery time:within 20-30days after receiving the 30%deposit.
2.The shipment port:Qingdao.
3.Manufacturer name:SZM shanzhuang machinery.
4.Minimum Order Quantity :1 set (consider freight)
5.payment terms: --T/T :30% deposit,70%balance before shipping
6.packing:Nude packing.
