12 Channel Wireless Switch Power/relay/outdoor/remote Control Light Switch,digital Remote Controller 303/315/335/433/868MHz

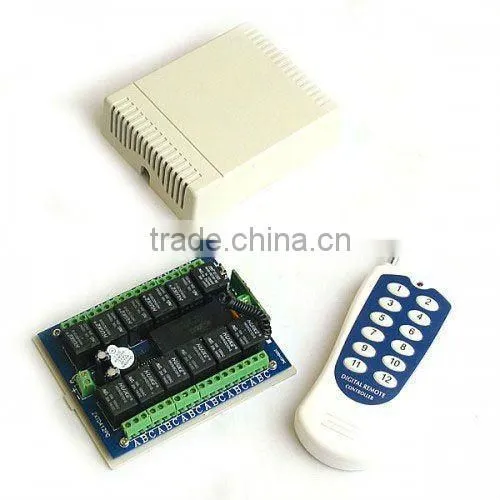

12 channel wireless switch

Description:

1channel, 2channel, 3channel, 4channel, 5channel, 6channel, 7channel, 8channel, 9channel, 10channel, 11channel and 12channel wireless remote control switch available

Voltage: AC90v~AC270v and DC9v~36V availabe 50Hz/60Hz available

Remote distance: 10m~10km meters available

Big load power: 1000~5000w available

Wide operating temperature range: -60~+500°C available

Optional Frequency: 303MHz/335MHZ/315MHZ/433MHz/868MHZ available

Coding way: Fix code or intelligent learning code/rolling code available

Application field: for wireless light control/Home electric appliance control/Agricultural long-distance control/Industrial long-range control/Door wireless open/close/car multi-route alarm/Motor rotation control.

Waterproof: Under water 5~10meters

Main function: self lock / no lock model/commutative lock model.

Explanation:

1):Self lock model:

[For example 4ch wireless switch]

Press remoter button A first time, the receiver relay is ON, press remoter button A second time, the receiver relay is OFF, the same as B/C/D.

Extend function:When Jumper is OFF possition, when press button A on the transmitter, receiver channel A goes on 2 seconds then goes off automaticaly...Same of channel B/C/D.

Use field: Electric equipment ON/OFF wireless control;garage door open/close,light ON/OFF

2):None lock model:

[For example 4ch wireless switch]

Press remoter button A always, the receiver relay is ON, release button A,

the receiver relay is OFF, the same as B/C/D.

Use field: Electric motor rotation positive and negative wireless control 3):Commutative lock model:

[For example 4ch wireless switch]

Press remote button A, the receiver relay A is ON, the relay B/C/D is OFF;

Press remote button B, the receiver relay B is ON, the relay A/C/D is OFF;

Press remote button C, the receiver relay C is ON, the relay A/B/D is OFF;

Press remote button D, the receiver relay D is ON, the relay A/B/C is OFF;

Use field: Electric fan wind speed wireless control
