Digital Textile Roll Heat Sublimation Printing Service

Name

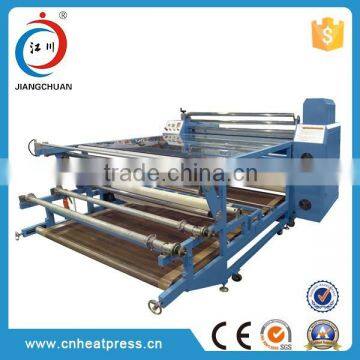

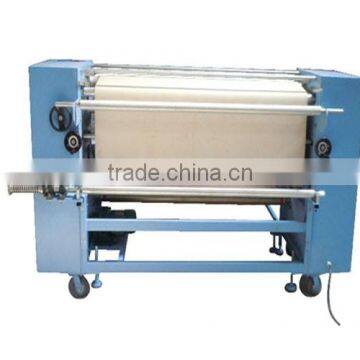

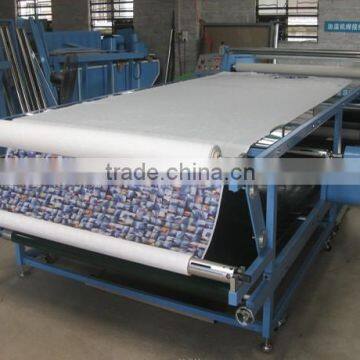

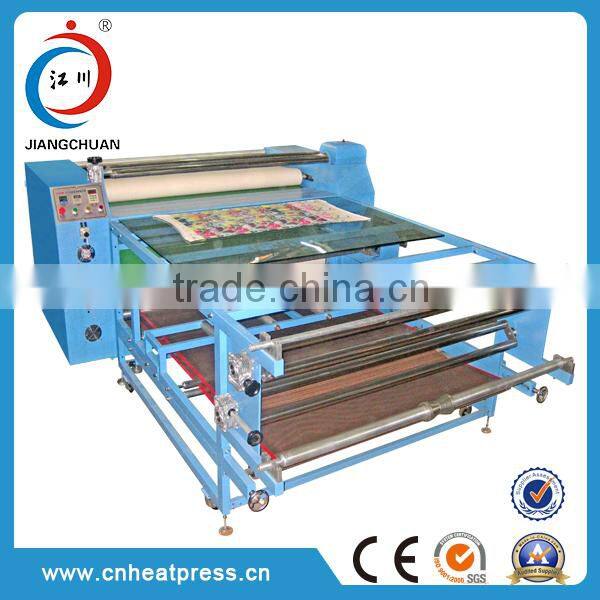

Multifunctional roller heat transfer machine  JC-26B

Feature

1. It is designed on the basis of human mechanics by improving upward material feeding for pack stamping, greatly improve efficiency.

2. Without cooling machine by using electrical control technology.

3. With power failure protection function, blanket and roller can be individually separated.

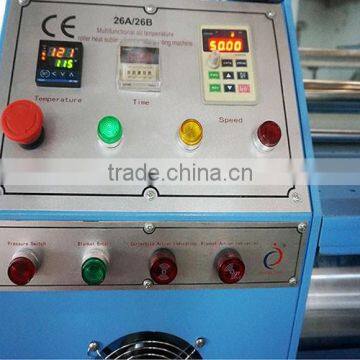

3. High accuracy by employing electronic digital temperature control and frequency conversion motor digital control.

3. Chrome plating in the roller, it is wear resistant, anti-sticking and transfer excellent.

4. The oil temperature heating technology circulates the thermal conductivity of liquid and averagely heating.

5. Peripheral gas tank and automatic closing valve to easily change heat transfer oil.

6. It is very safe and explosion-proof.

7. Multifunctional machine can transfer piece, cutting and ribbon, improving the working efficiency by 2 to 3 times.

Technical parameters

Roller

width

Roller

diameter

Voltage

Power

Temp.

range

Speed

Weight

Packing   size

1.2m

420mm

220V/

380V

22KW

0-390°C

0-6m/min

1000KG

215*145*174

1.7m

420mm

220V/

380V

30KW

0-390°C

0-6m/min

1800KG

263*139*160

2.0m

420mm

220V/

380V

35KW

0-390°C

0-6m/min

2100KG

290*145*170

1.2m

600mm

220V/

380V

30KW

0-390°C

0-8m/min

1800KG

243*167*171

1.7m

600mm

220V/

380V

38KW

0-390°C

0-8m/min

2300KG

263*167*171

2.0m

600mm

220V/

380V

45KW

0-390°C

0-8m/min

2700KG

288*167*171
