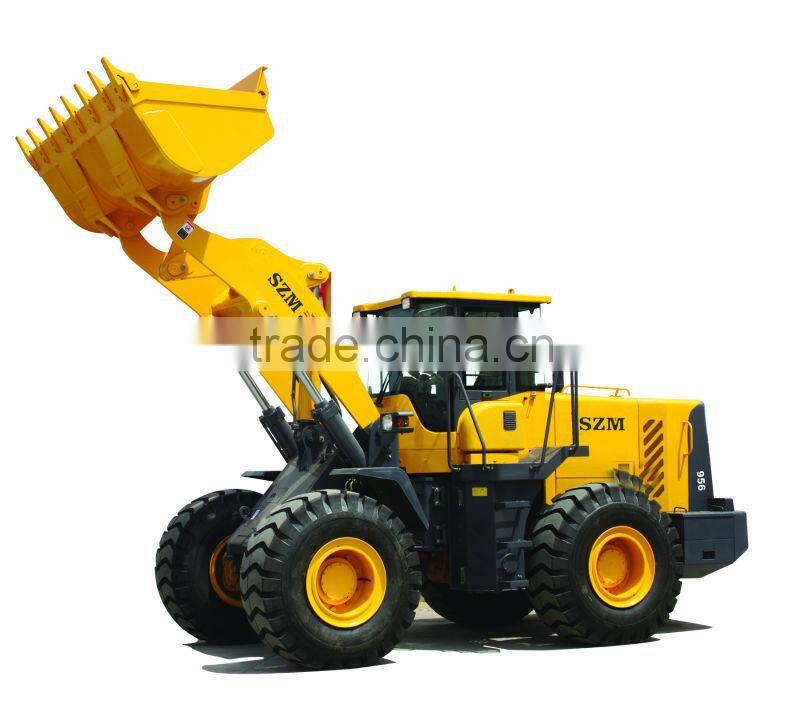

5 Tons Wheel Loader With Cummins Engine and ZF Transmission

FOB Price

US$ 41,000 - 48,000 / Set

1 Set(Min. Order)

Port qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	szm
Model Number	956	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	7885X3000X3300	Rated Load	5000kg
Certification	ce	Warranty	long time

Product Description

Specifications

wheel loader ZL50G
1,bucket :3.0m3
2,rated load:5000kg
3,STEYR engine
4,joystick,hydraulic pilot

1.Good cost performance
2.High productivity
3.Good capability in climbing the slope
4.Operation flexible
5.Safe and reliable

6. High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.

7. Good capability in climbing the slope: 4-wheel driven, strong driving power.

8. Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.

nudewe can perform according customers' requirements.

ZL50G 5tons Front Wheel loader with CE made in china

Performance	1	rated loading	1600kg
	2	overall weight	4800kg
	3	rated bucket capacity	0.9m3
	4	maximum tractive force	≥34KN
	5	maximum breakout force	≥51KN
	6	maximum grade ability	30°C
	7	maximum dump height	2330mm
	8	maximum dump reach	800mm
	9	overall dimension (L×W×H)	5182×1910×2712mm
	10	minimum turning radius	4367mm
Engine	11	model	Wei chai ZH4100G14-3
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4—100×125mm
	14	rated power	45kw—2200r/min
	15	maximum torque	250N.m
	16	min fuel-consume ratio	≤243g/kw.h
Transmission system	17	torque converter	YJ1—26501
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing spiral	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheelbase (mm)	2150mm
	24	wheel tread	1440mm
	25	ground clearance	310mm
Hydraulic system	26	system working pressure	16MPa

Qing Zhou Shanzhuang Machinery Co., Ltd. (SZM) is located in Qing Zhou Economic Development Zone, Shandong Province. As a professional manufacturer, we provide construction machinery and mining machinery ,like loaders for export, backhoe loaders etc.

We have 9 Series loaders now, with loading capacity ranged from 0.8T to 5.0T and option attachments like rock bucket, coal bucket, rice bucket, log grapple, grass fork, snow shovel, sweeper etc.

Currently, our products sold to Russia, Brazil, South Africa, Malaysia, France, Sweden, Kazakhstan, Mongolia, Vietnam, Myanmar,Tailand, Australia, Iraq etc.

If you're interested in wheel loaders, please feel free to contact with us. We'll send you our quotation immediately, including PRICE, PICS, SPECIFICATION.
