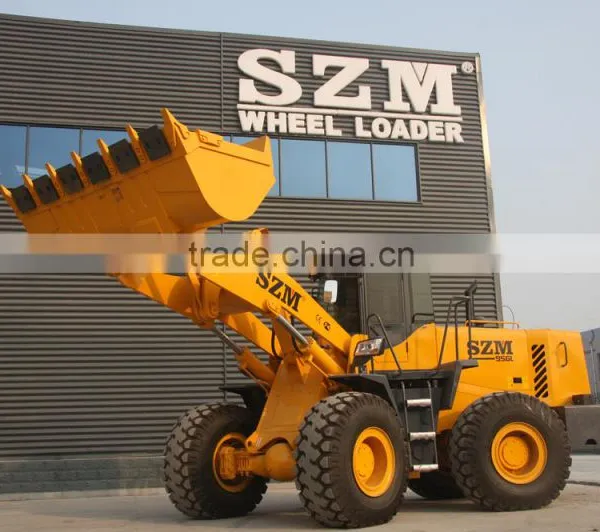

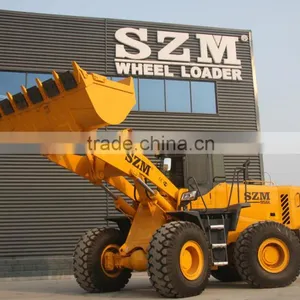

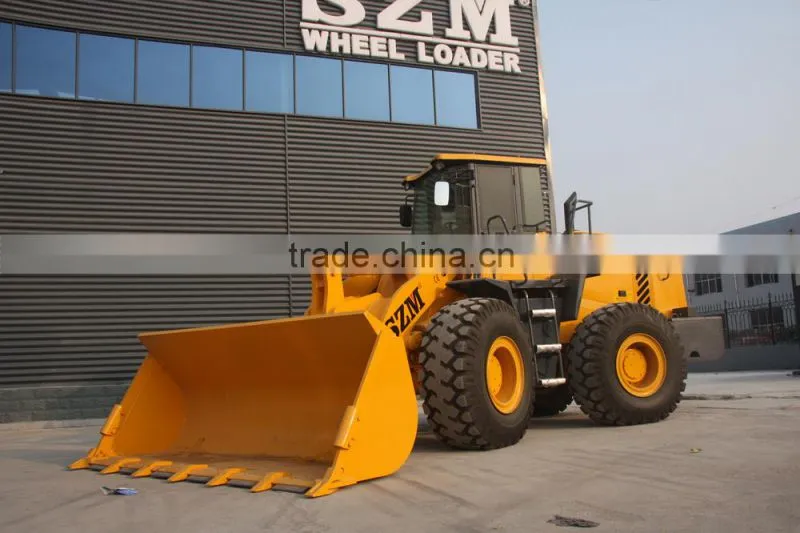

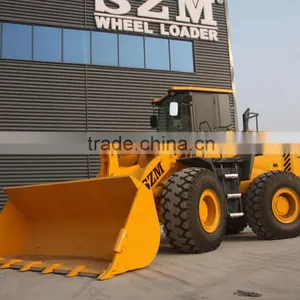

New Product Wheel Loader Zl50 High Quality 5t Wheel Loader ZL50G

US$ 41,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

szm

Model Number:

956

Qingzhou Shanzhuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name szm

Model Number 956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7885X3000X3300

Rated Load 5000kg

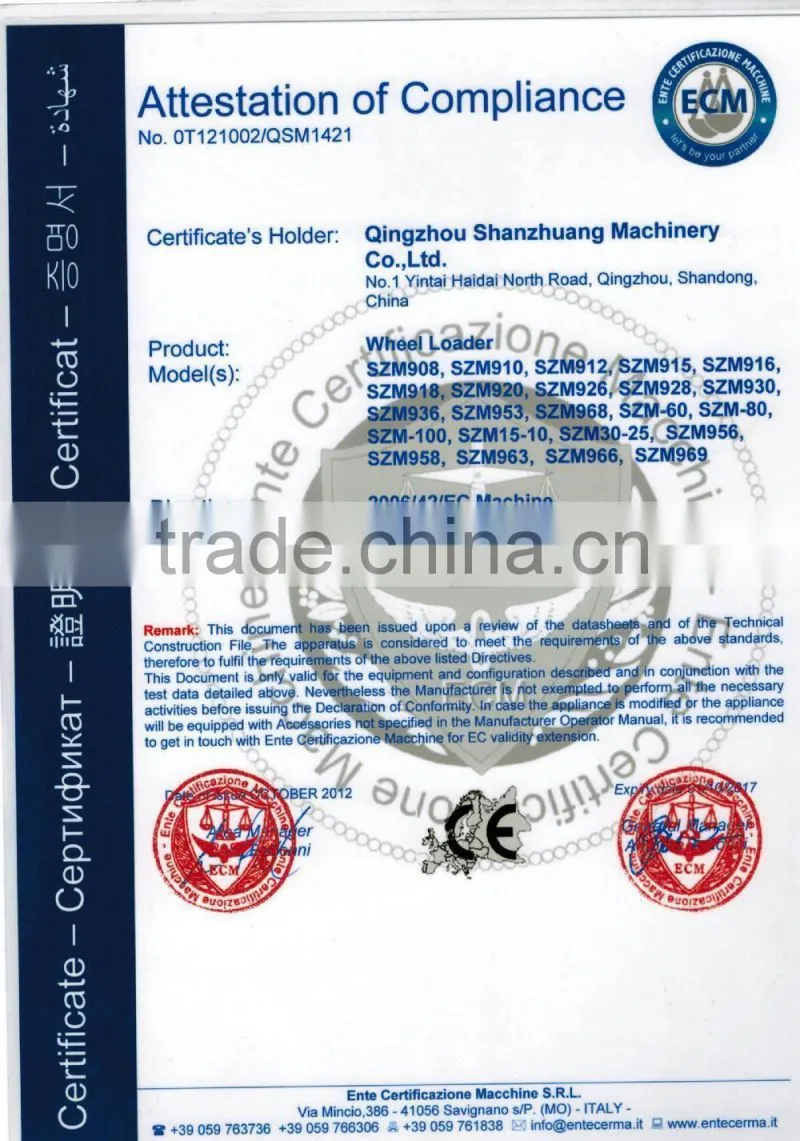

Certification ce

Warranty 18 months or 2000 hours

After-sales Service Provided Engineers available to service machinery overseas

5000kg 3cbm powerful performance wheel loader 956
Specification	Rating loading capacity		5000 kg	Travel speed	Forward 1st gear		10 km/h
	Bucket capacity		3 m³(standard bucket)
	optional bucket		2.5m³(rock bucket) ;2.7 m³;		Forward 2nd gear		34 km/h
			3.6 m³ (lightweight bucket)
	Dumping height		3205 mm		Reverse 1st gear		13 km/h
	Dumping reach		1200 mm
	Max. lifting height		4315 mm	Diesel engine	Modl	standard	Steyr WD10G220E11
						optional	Xichai6110/Deutz
	System pressure		16 Mpa		Rating power		162 kw
	Arm lifting time		≤ 6.5s		Rating rev.		2200 r/min
	Arm declining time		≤ 4.5s		Min. specific fuel consumption		215 g/kw.h
	Bucket forward tilting time		≤ 2.5s	Transmission	type of torque converter		Dual-turbine type
	Breakout force		154 kN		Stall torque ratio		4
	Min. turning radius(center of outside wheels )		5745 mm		Oil pressure of torque converter inlet		0.3 - 0.45 Mpa
					Type of Gearbox		Planetary, hydraulic powershift
	Working pressure of steering system		16 Mpa	Oil capacity	Fuel tank		278 L
	Max. turing angle		38°		Hydraulic system		278 L
	Wheelbase		3200 mm		Engine oil		20 L
	Tread		2200 mm		Gearbox		45 L
Tyre	specification	23.5-25			Axles and final drive		83 L
	Air pressure	Front 0.32 Mpa Rear 0.28 Mpa			Brake system		3.52 L
Operation weight			16500kg	Axles	Type of main transmission		Spiral bevel gear
Dimension	Overall length		7785 mm		Reduction ratio		5.286
	Overall width		3000 mm		Type of final drive		Spur planetary gear
	Overall height		3350 mm		Reduction ratio		4.26
