Help CenterDTEC DRT320 Surface Roughness Tester,28 Parameters,built-in SD Card,bluetooth Printer,remote Control,USB to PC With Software,ISO
Related Products
-
DTEC DRT310 Surface Roughness Tester,4 Parameters,Segment LCD,High Precision,ISO CertificateUS$ 600 - 960MOQ: 1 Piece -
DTEC DRT200 Surface Roughness Tester,15 Parameters,built-in Strorag,mini Printer,USB to PC With Software,ISO Certificate,US$ 600 - 960MOQ: 1 Piece
-
DTEC SRT6200 Surface Roughness Tester,2 Parameters,support Bluetooth Printer,USB to PC With Software,ISO Certificate,US$ 600 - 960MOQ: 1 Piece
-
DTEC DRT P4 Surface Roughness Tester,4 Parameters,built-in Transducer,pocket-size,Dot Matrix LED,good Price Quality ChoiceUS$ 550 - 800MOQ: 1 Piece
-
DTEC DC30N Digital Coating/Painting Thickness Gauge With Data Pro Software,Measuring Rang:0-2000um,Best-selling GaugeUS$ 200 - 600MOQ: 1 Set
When measuring roughness on specimen surface, the probe is placed on the surface of the specimen, and then tracing the surface at constant rate. The probe acquires the surface roughness by the sharp stylus inside. The roughness on surface causes displacement of stylus which results in change of inductive value in induction coils, thus generates analogue signal which is in proportion to the tested surface roughness at the output end of phase-sensitive rectifier. This signal enters data collection system after amplification and level conversion. After that, those collected data are processed with digital filtering and parameter calculation by DSP chip and the measuring result can be read on LCD, or printed out through printer or communicated through PC.
- 28 parameters:Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS),RSk,R3z,Rmax,RPc,Rmr, Rku,RΔa,RΔq,Rδc,Ry Rk,Rpk, Rvk,Mr1,Mr2,A1,A2,V0;
- Employ 320um electric-induction transducer with large testing range and high precision;
- 4 filtering modes: RC, PC-RC, GAUSS and D-P;
- 4 Compatible standards:ISO, DIN, ANSI and JIS;

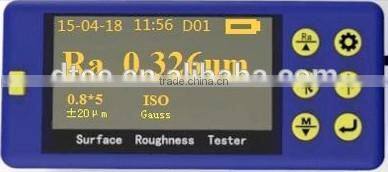

- 2.7-inch large screen 128 × 64 dot matrix OLED display, no backlighting, no dead ends, can display full parameters, contour graphs and menu;
- Adopts the most mainstream for instrument controlling and data processing;
- With built-in storage,can store 20 groups complete testing data;
- With built-in SD card for expand memory;
- With built-in wireless remote module, support remote measurement;
- With built-in standard Bluetooth module, enable to connect with optional bluetooth printer without cable, all parameters and graphs can be printed out;
- With built-in micro USB port, can connect to PC for further data analysis with data pro software;
- Built-in lithium polymer rechargeable batteries and charging protection circuit;
- Automatic switch off, memory and various prompt instructions;
- Optional bluetooth mini-printer, analysis software, special probes and measurement platform
Measuring Range |
Z Axis(Vertical) |
320μm(Ra=80μm) |
|
X Axis(Horizontal) |
17.5mm |
||
Resolution |
Z Axis(Vertical) |
0.01μm/±20μm |
|
0.02μm/±40μm | |||
0.04μm/±80μm | |||
0.08μm/±160μm | |||
Measurement item |
Parameters |
Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS),RSk,R3z,Rmax,RPc,Rmr, Rku,RΔa,RΔq,Rδc,Ry;Rk,Rpk,Rvk,Mr1,Mr2,A1,A2,V0 |
|
Standard |
ISO,ANSI,DIN,JIS |
||
Graphic |
Roughness profile,Material ratio curve,Direct profile |
||
Filter |
RC,PC-RC,Gauss,D-P |
||
Sampling length (lr) |
0.25,0.8,2.5mm |
||
Assessment length ln) |
Ln= lr×n n=1~5 |
||
Probe |
principle |
Differential inductance |
|
Stylus |
Natural Diamond, 90B cone angle, 5μm tip radius |
||
Force |
<4mN |
||
Skid |
Ruby,Longitudinal radius 40mm |
||
Traversing speed |
lr=0.25, Vt=0.15mm/s |
||
lr=0.8, Vt=0. 5mm/s | |||
lr=2. 5, Vt=1mm/s | |||
Return Vt=1mm/s | |||
Accuracy |
Less than or equal to ±10% |
||
Repeatability |
Less than or equal to 6% |
||
Power supply |
Built-in Lithium ion battery,AC adapter 8.4V,800mA |
||
Dimension |
38×25×10cm(LxWxH) |
||
Packing Weight |
3KG |
||

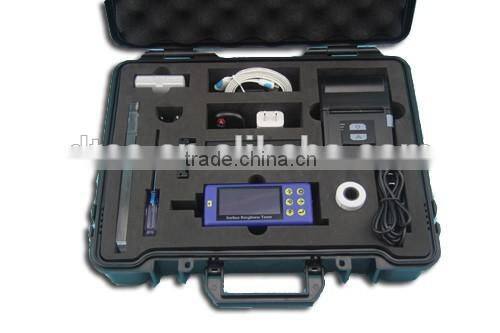

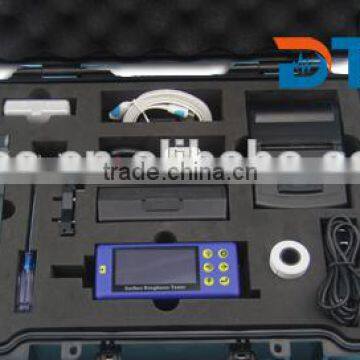

Standard Packing List:
|
NO. |
Items |
Qty. |
1 |
Main Unit |
1 |
2 |

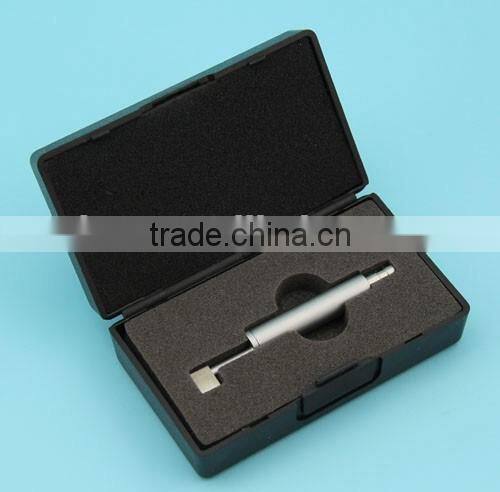

Standard Probe |
1 |
3 |
Screwdriver |
1 |
4 |
Calibration Specimen |
1 |
5 |
Specimen Plate |
1 |
6 |
Power Adapter |
1 |
7 |
Remote –controller |
1 |
8 |
User’s Manual |
1 |
9 |
Produce Certificate |
1 |
10 |
Guarantee Card |
1 |
11 |
Case |
1 |
Optional Accessories:

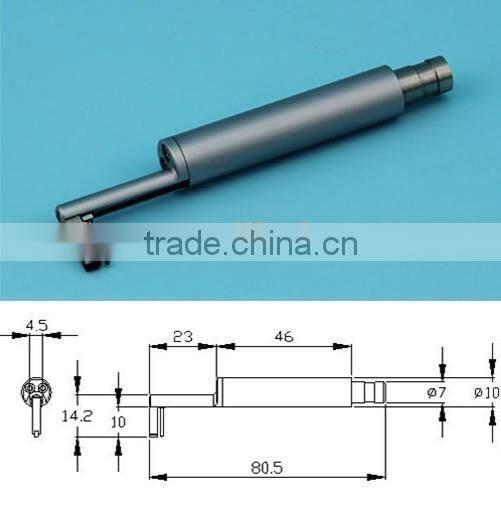

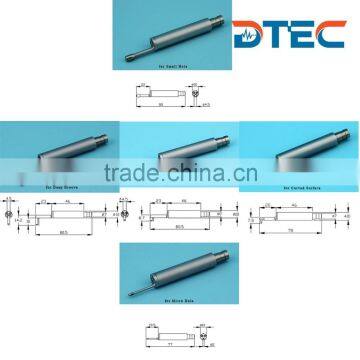

Transducers:

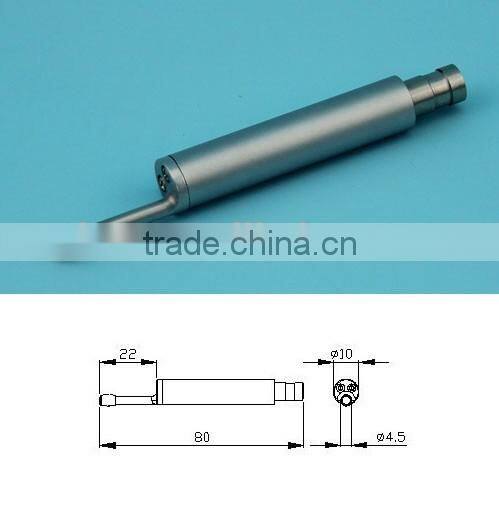

Standard Type

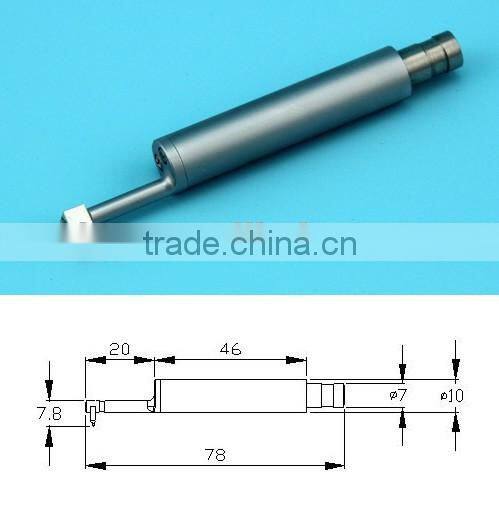

For Curve Surface

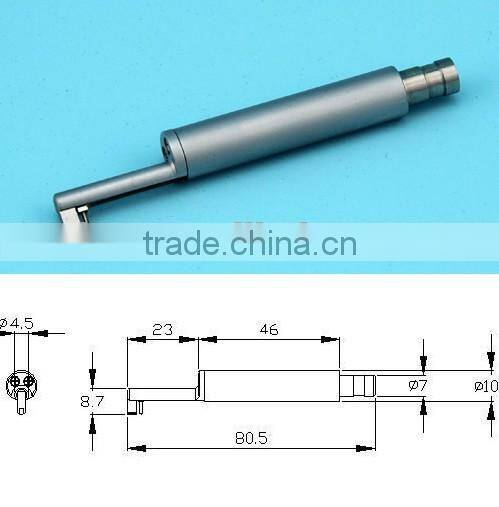

For Deep Groove

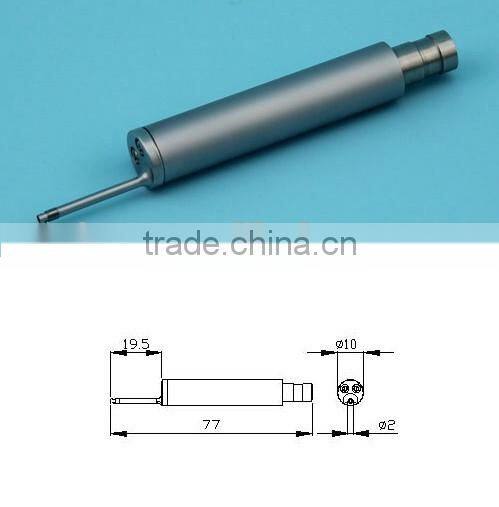

For Small Hole
For Even Smaller Hole

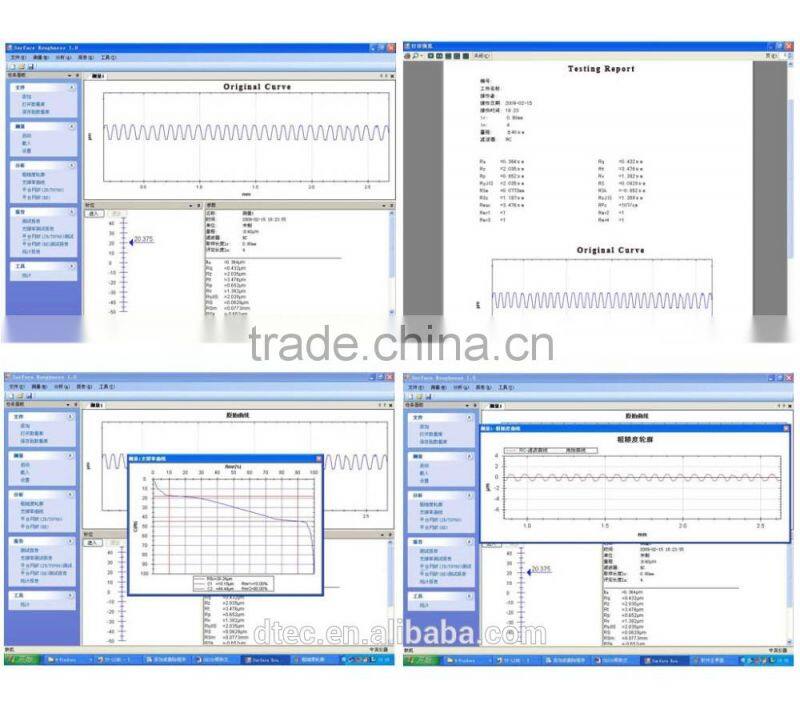

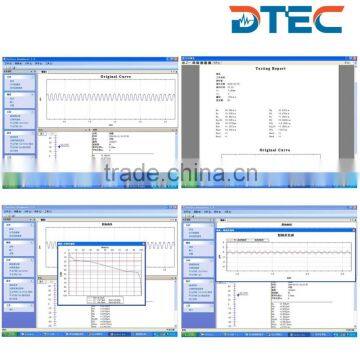

Data Analysis Software
Bluetooth Mini Printer
Fine Adjustment Platform & Stand
