DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate

Name: DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate
Brand: DTEC
SKU: 121554555

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate thumbnail-1

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate thumbnail-2

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate thumbnail-3

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate thumbnail-4

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate thumbnail-5

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate photo-1

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate photo-2

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate photo-3

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate photo-4

DTEC DUT-1000A Portable Digital Ultrasonic Flaw Detector NDT Testing, Ultrasound,Weld Inspection, A Scan ,CE ISO Certificate photo-5

US$ 2,000 - 4,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

DTEC

Model Number:

DUT-1000A

Contact Supplier Request Quote Chat Now

Beijing Deity Testing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing Air Port;Tianjin Sea Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name DTEC

Model Number DUT-1000A

Product Description

DUT-1000A is also designed for the severe environment, its domestically unique omniseal design enables it to resist the damp, sandstorm, dust, and pollution in all sorts of environmental extremes ranging from ocean to desert.

DUT-1000A contains all the performance carried on DUT-1000,and it add some other function like AVG curve functiuon,function of DAC Curvilinear Distance Compensation,and function of Φ Value calculation.

Using Scopes:
The instrument can be quickly, nondestructively and accurately used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.

The Main Difference among the four models:

Model	DUT-1000	DUT-1000A	DUT-1800	DUT-1800A
True Color TFT LCD	√	√	√	√
DAC Curve	√	√	√	√
AVG Curve	χ	√	χ	√
Φ Value Calculation	χ	√	χ	√
Distance Compensation	χ	√	χ	√
Changeable Squared Ultrasonic Pulse	χ	χ	√	√
Wide/Narrow Band Filters	χ	χ	√	√
Four Impedance Matching	χ	χ	√	√
Data Logger	√	√	√	√
UtView Software	√	√	√	√

Major Structure of the Instrument:

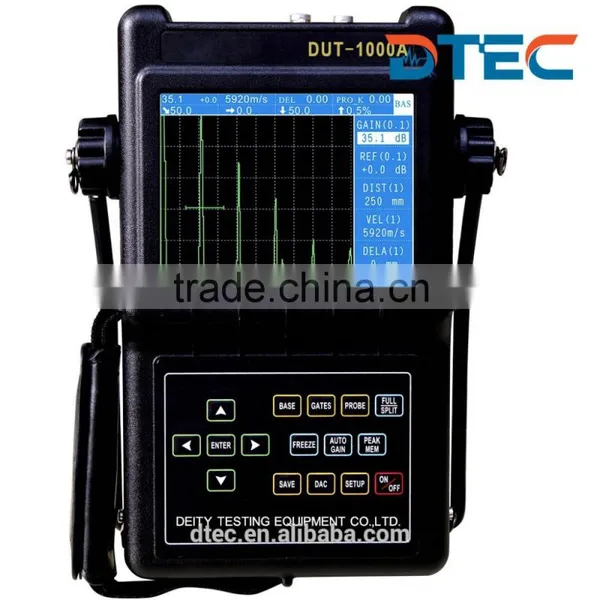

Power on the instrument (the probe is not connected), and the screen is shown as following:

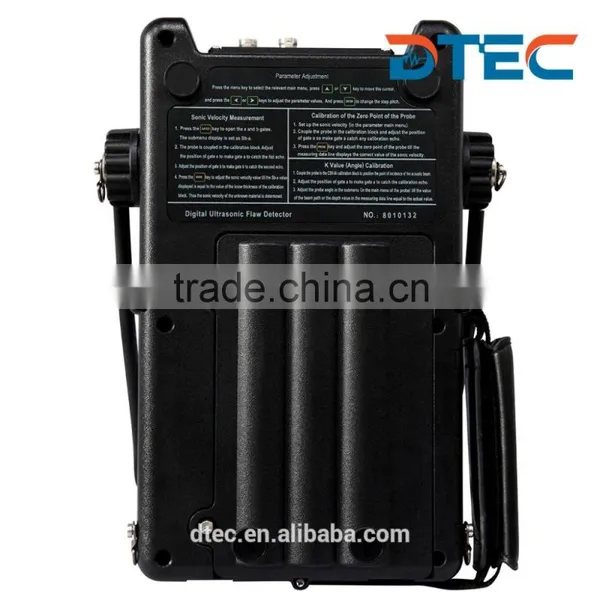

A pack of exclusive rechargeable built-in batteries or 6 mon LR14 batteries can be used in DUF-1000A, as shown:

Main Menu:

Main Menu	Submenu Functions	Guide
Basic	Gain, Compensation, Sound Velocity, Sound Path, Displacement, Scale, Reject, Wave Height Readings	Basic Parameters in Detection
Setting	Waveform Filling, Color Scheme, Language, Unit, Alarm, Automatic Wave Height, Date, Time, Parameter Resetting, Lighting	Basic Functions of the Instrument
Gate	Gate A Start, Gate A Width, Gate A Height, Gate A Mode, Display Mode, Gate B Start, Gate B Width, Gate B Height, Gate B Mode, Measurement Point	Relevant Options Setting Gate
Probe	Dual Probes, Probe Zero, Probe K Value, Front Edge Length, Work Piece Thickness	Relevant Options Setting Probe
Curve	DAC Echo, Gate A Start Position, RL, SL, EL	Setting of Making DAC Curve
Storage	Memory Number, Call Out, Storage, Deletion, Communication	Setting of Data Storage

Functional Keys:

Automatic Gain	Increase or decrease the highest wave inside the gate to 80% of the screen
Freezing	Waveform freezing
Wave Peak Memory	Automatically store the highest wave
Full Screen	Full screen display
On/Off	Switch on and off
Menu Control Keys Up, Down, Left, Right, Ok	Up/down keys are used to switch among options, left/right keys are used to adjust values.

DTEC Advantages

Main Features:

Pan-seal Design of IP67 Standard, Real Waterproof, Waterproof, and Dustproof;

Two battery schemes(unique in China):when there is no AC supply, if the battery pact exhausts, you can use 6 ordinary LR14 batteries;

31 copper screw nuts are inlaid in the hard plastic casing;

Innovative rotating positioning stand,which is convenient to place instrument anywhere;

Hand strap installed enable to hold the machine with any hand;

Selectable for BNC or LEMO probe port;

D-shaped ring on the instrument convenient for you to install a chest-strap;

Full screen function, the echo display area can cover the entire screen, satisfying you the feeling of the maximum window;

Solid waveform display, which strengthens the visual contrast of waveforms ,make it hard to miss detection when fast scan is carried out;

Bulk storage, up to 1000 data sets can be stored, including waveforms, curves, and parameters (containing the traditional 1000 channels);

Echo-echo thickness measurement, zero calibration is avoided, and the net thickness of the base material can be directly measured through the coating;

Easy to use, the user can master the operation method fast.

Basic Functions:

Wave peak memory: real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to position the flaws precisely and scan the work piece quickly. With the help of envelope waveform, the quality of the flaws can be determined;

Automatic gain: automatically adjust the gain to the preset amplitude height;

Alarming function: afferent echo/echo loss alarming;

Real-time clock: automatically record and store the date and time of waveforms;

Display freezing: catch waveforms and sound path data at any moment, and the gate can be moved after freezing to measure the echo parameters;

Flaw positioning: real-time display sound path S, horizontal X, depth Y, and wave height H;

Digital Reject: 0-80%, increase by 1%, unaffecting the linearity and gain;

Wave height reading: three display modes, namely relative wave height, dB difference relative to the gate, and dB difference relative to DAC curve;

Data communication: communicate with the computer through RS232 port to transmit waveforms and data so as to manage the result of detection on the computer, and generate the flaw detection reports, as well as print out reports;

Two independent measurement gates:monitoring the echo amplitude and the sound path distance;

When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness;

Perfect DAC/AVG curve functions:the curves change along with the changes of the gain, sound path, and displacement;

5.7’’True color TFT LCD:whose brightness is adjustable, with many color schemes to choose freely;

DAC Curvilinear Distance Compensation: the device is designed for distance compensation. When the resolving power in the near field is not influenced, only the remote signal will be compensated for its sensitivity so as to improve the testing range of the device significantly;

Φ Value calculation: the device can calculate the equivalent of the flaw according to the flaw wave height automatically.

Specification

Testing Range	0-177 inch or 0-4500 mm
Working Frequency	0.5-15 MHz
Material Sound Velocity	0.039-0.394 inch/µs or 1000-9999 m/s
Resolution	≥32dB (5P14)
Pulse Displacement	0-7.87 inch
Probe Zero	0-99.99 µs
Damp	33/50/100/500Ω
Displaying	True Color TFT LCD Screen (5.7’’)
Operating Mode	Pulse Echo /Dual Crystal
DAC/AVG Curve	Perfect DAC and AVG Curve Function, Function of DAC Curvilinear Distance Compensation
Gain Adjustment	(0-110)dB,0.1dB,1.0dB,2.0dB,6.0dB (Full Automatic Adjustment of Steps)
Reject Scope	0-80% Adjustable
Vertical Linearity Error	≤3%
Horizontal Linearity Error	≤0.3%
Dynamic Range	≥30dB
Sensitivity Allowance	≥55dB (0.787’’ Deep Φ2 Flat-bottom Hole)
Data Storage	1000 Data Sets, Including Flaw Detection Status Parameters, Echoes and DAC Curves
Average Electric Noise and Level	≤10%
Battery Types	6 Pcs. Ordinary LR14 Batteries or High Power Lithium Battery
Power Supply	220V AC, 12V DC
Working Hours	> 8 Hours
Enclosure	Pan-seal Design of IP67 Standard, Real Waterproof, Waterproof, and Dustproof.
Working Temperature	14℉ to 122℉
Dimension	45x38x13cm
Packing Weight	6KG

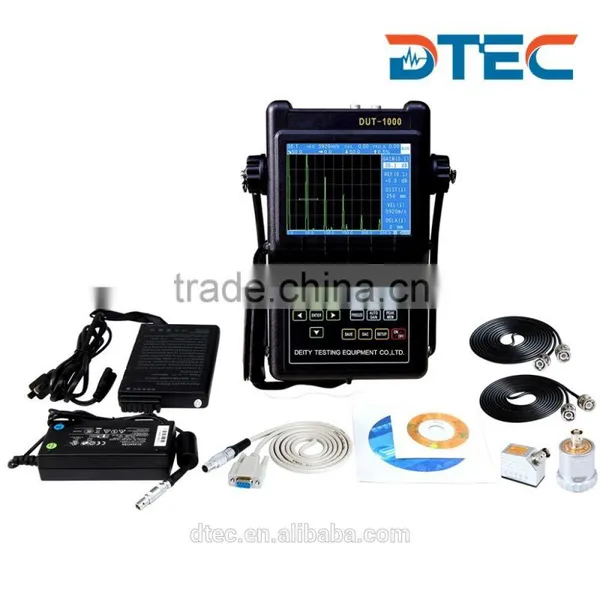

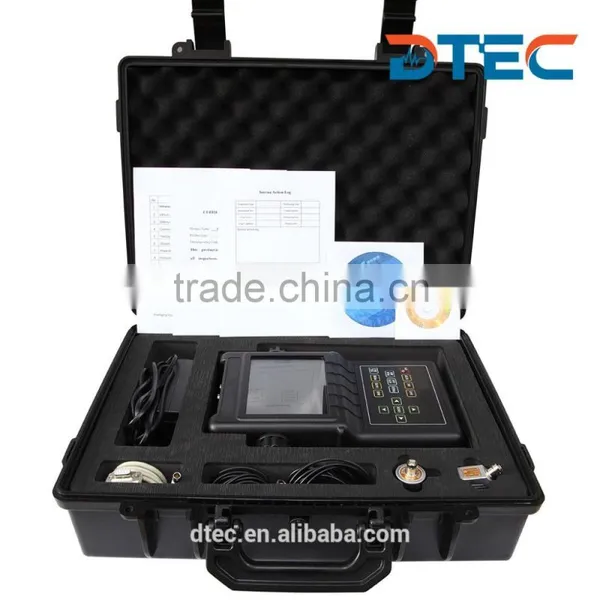

Packing List & Accs

Standard Packing List:

Items	Qty.	Items	Qty.
Main Unit	1	Normal/Angle Probe	1 each
Recharger	1	Strap	1
Probe Cable	2	Instrument Case	1
Data Processing Software	1	Warranty Card, User’s Manual Quality Certificate Packing List	1 each
Communication Cable	1	Lithium Battery	1

UT Probes:

All probe specification can be customized according to your requirement.

Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);
3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).

The probe price mainly depends on the crystal size.
And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°.

General Specification of UT Probe:

Crystal Size	5-25mm
Crystal Type	Single or Double Crystal
Crystal Angle	0°-70°
Testing Range	1mm-280mm(according to required focus distance)
Center Frequency	2-8MHz
Test Standard Based	EN12668-2
Material	Stainless Steel
Sensitivity	52-54dB
Resolution	34dB
Initial Pulse Width	3mm
Angular deviation	±1°
Electrical Impedance	49Ω
Working Temperature	-5-50°C

Packaging & Shipping

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
