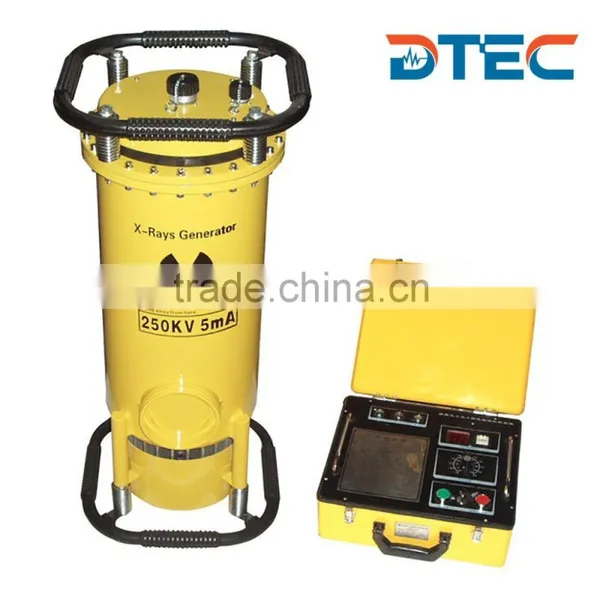

DTEC XXQ-2505 Portable Gas-filled X-ray Flaw Detector

XXQ-2505 Portable Gas-filled X-ray Flaw Detector comes with 250kv output tube voltage, 5mA maximum tube current;it is suitable for directional filming the material of thin iron plate, aluminum, rubber and so on, which can get picture with good quality and clarity.

Equipment Structure:
Each model of X-ray equipment is composed of the controller, X-ray generator, power cable, connecting cable and cable accessories.

• Controller

• Automatically Checking the software and hardware after starting the machine;

• Excellent anti-jamming performance, which is suitable for field operation without power supply, due to the motor support;

• Adjustable of exposure parameters with keys (easy operation);

• Function of delaying to open HV, convenient for operator to keep away from dangerous field;

• Adjustable of high voltage slowly for protecting X-ray generator;

• Automatically controlling according to 1:1 working and rest operating mode, the longest continuous exposure period is 5 minutes;

• Complete protecting system included: over KV, low mA, over mA, over temperature and optical-sound alarming;

• Convenient for repairing and maintenance;

• Much more Substance for structure designing, much more convenient for local operation;

• Time can be changed for±0.3 according to the power supply net to make the exposure more precise.

  Standard Packing List:

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
