CNC Plasam Cutting Machine HD-1325
- 700 Set / Sets per Month
- Qingdao
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | Hongda Boke | Model Number: | HD-1325 |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
cnc plasma cutting machine HD-13251.cutting metal materials from 0.5mm to 45mm.
2.cutting steel metals from 0.5mm to 6mm.

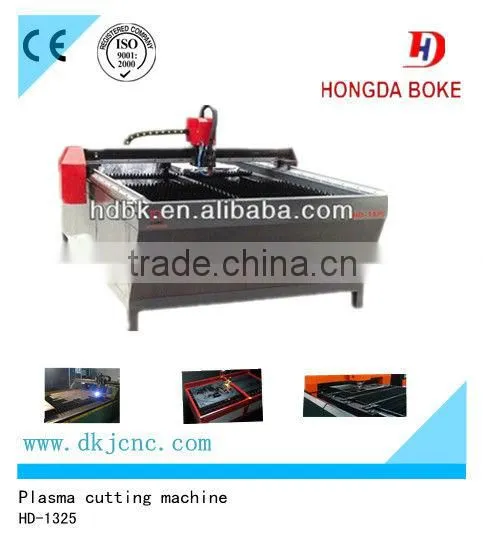

CNC Plasam Cutting Machine HD-1325
Technical-Parameters :
Working Area(X and Y) | 1300x2500mm |
Cutting thickness | 0.3-16mm |
Cutting Speed | 0-8000mm/min |
Document Transmission Form | USB Interface |
Working Form | Untouched Arc Striking |
Working Voltage | 3-Phase 380V |
G.W. | 980KGS |
Packing Size | 10.1 CBM |
Remarks | Configured with Taiwan servo speed reducing device |
Location precision | <0.02mm |
Repeat accuracy | 0.1mm/10Mtrs. |
Features:
1 Welded lathe bed of thick-wall profiled steel, more solid and stable.
2 Reasonable lathe table design, 10mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
3 Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
4 Panasonic Servo motor, Taiwan servo speed reducing device and high accuracy rack transmission. Lower noise,stable and accurate coordinate movement.
5 Start control system made in Sino-US joint venture and Germany design Software FASTCAM with auto material saving function.
6. Domestic famous brands Plasma gun power (Power: 40A/120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
7 Best choice for all kinds of different thickness material and heterotypic sheet cutting.

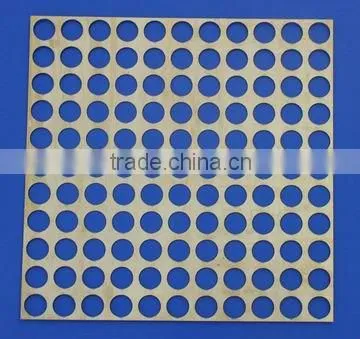

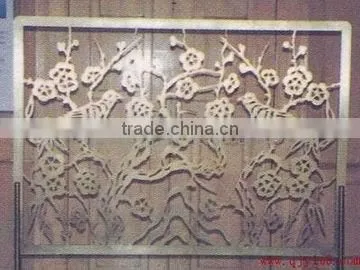

SAMPLES:
Service:
