Help CenterDTEC HR-45A Manual Superficial Rockwell Hardness Tester,Superficial Scales of HRN/HRT,Easy Loading,ISO,ASTM Certificate
Related Products
-
DTEC HR-150M Motorized Rockwell Hardness HRC ,Qualified With ISO,ASTM Certificate Quality ChoiceUS$ 750 - 1,000MOQ: 1 Set -
DTEC XHRS-150 Digital Plastic Rockwell Hardness Tester,Built-in Printer,,Adjustable Loading Speed,insid,ISO,ASTM CertificateUS$ 2,600 - 3,000MOQ: 1 Set
-
DTEC HR-150MH Heighten Motorized Rockwell Hardness HRC,test Sample in Higher Size,Qualified With ISO,ASTM CertificateUS$ 750 - 1,000MOQ: 1 Set
-
DTEC HRS-150H Digital Heighten Rockwell Hardness Tester Automatic Loading,test Samples in Higher Size, ISO,ASTM CertificateUS$ 2,500 - 2,800MOQ: 1 Set
-
DTEC DHBRV-250T Universal Hardness Tester,Touch Screen,Full Auto Loading, Brinell, Rockwell, Superficial Rockwell and VickersUS$ 15,000 - 17,000MOQ: 1 Set

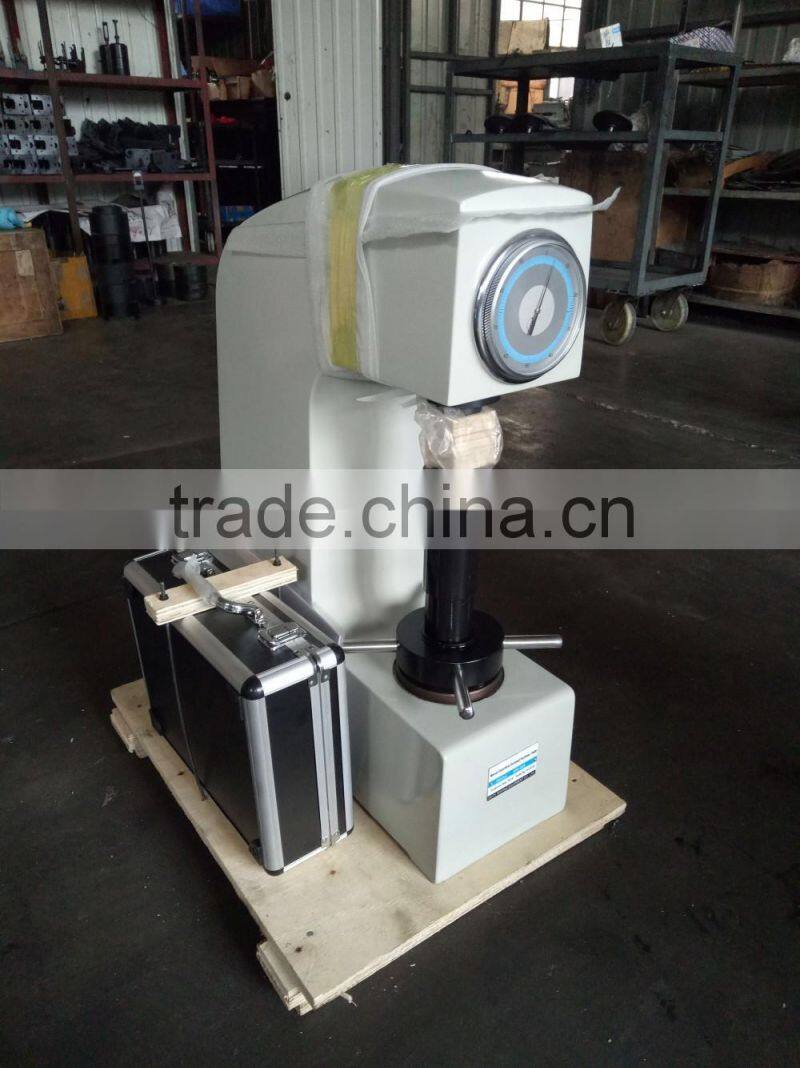

HR-45A Manual Superficial Rockwell Hardness Tester is used to test the superficial hardness of ferrous metal,alloy steel,hard alloy and other matellic materials whose surface is processed by means of carburization,nitridation,cladding etc.especially used in the precision measurement on the parallel surface.
Using Scopes:
- Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metalt and Non-metallic Material.
- Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
Rockwell hardness scale |
Hardness symbol
|
Indenter type |
Initial l force Fo (kg) |
main force F1 (kg) |
Total force F(KG) |
Constant |
Scope of application |
Examples of application |
A |
HRA |
diamond cone indenter |
10 |
50 |
60 |
100 |
20-88HRA |
Hard metal and hard alloy |
B |
HRB |
1.5875mmball indenter |
10 |
90 |
100 |
130 |
20-100HRB |
Nonferrous metal and soft metal |
C |
HRC |
diamond cone indenter |
10 |
140 |
150 |
100 |
20-70HRC |
heat treatment steel |
D |
HRD |
diamond cone indenter |
10 |
90 |
100 |
100 |
40-77HRD |
Surface hardened steel |
F |
HRF |
1.5875mmball indenter |
10 |
50 |
60 |
130 |
60-100HRF |
Nonferrous metal |
G |
HRG |
1.5875mmball indenter |
10 |
140 |
150 |
130 |
30-94HRG |
iron, copper nickel, zinc alloy |
- A scale: It is suitable for testing the metal more than 70HRC, such as tungsten carbide, hard alloy as well as the hard sheet material and the hardening material on the surface layer.
- B scale: It is suitable for testing non-ferrous metals and alloys, annealing steel or soft or medium hardness of materials.
- C scale: It is suitable for testing the carbon steel, tool steel and alloy steel.
- Mechnical and manual testing mode,easy and simple operation,without electrical power supply;
- High testing efficiency,with high accuracy hydraulic buffer;
- Durable and reliable loading;
- Direct dial readings,with scales of HRN,HRT and other optional superficial scales;
- Quality certified with GB/T230.1/.2 Natioanal Standard,ISO 6508-2,ASTM E18.
Model |
HR-45A |
Initial Testing Force |
3kgf(29.42N) |
| Hardness Resolution | 0.5HR |
Testing Force |
15kgf(147.1N) 30kgf(294.2N ) 45kgf(441.3N) |
Rockwell Scale |
HR15N HR30N HR45N HR15T HR30T HR45T |
Testing Range |
HR15N:70-94;HR30N:42-86;HR45N:20-77; |
HR15T:67-93;HR30T:29-82;HR45T:10-72 | |
DataDisplay mode |
Dial |
| Operate Mode | Double Handle |
Carried Standard |
GB/T230.1/.2 Natioanal Standard,ISO 6508-2,ASTM E18 |
Max Height of Specimens |
170mm |
Max depth of specimens |
135mm |
Dimension (cm) |
61*40*75(L*W*H) |
Packing Weight |
70KG |

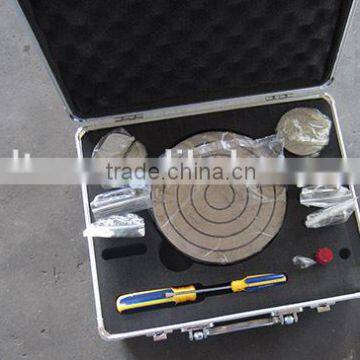

Standard Packing List:
Items |
Qty |
Items |
Qty |
Diamond Rockwell Indentor |
1 |
Dia.1/16'' ball indentor |
1 |
Standard Superficial Rockwell Hardness Block |
4 |
Big,Medium and V shaped Testing Platform |
1 each |
Weight(A,B,C) |
1 each |
Dustproof Cover |
1 |
User’s Manual Book |
1 |
Quality Certificate |
1 |
Optional Accessories for Rockwell Hardness Tester:
Rockwell Hardness Block:
Rockwell Hardness Indenter(Good Quality Diamond):
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
