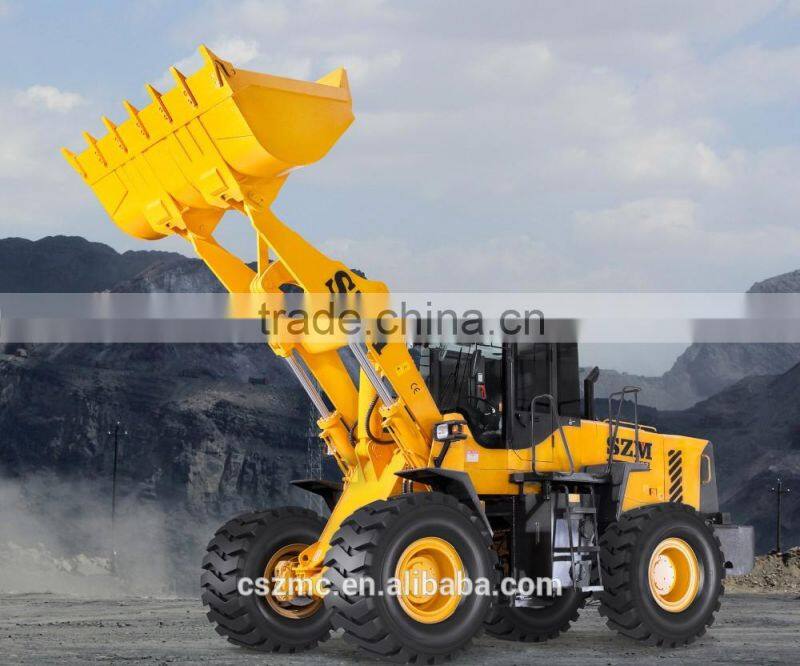

Wheel Loader 956 With Famous Engine
US$ 30,000 - 40,000
/ Set
1 Set(Min. Order)
- qingdao
- T/T Money Gram
You May Like
-
5Ton 4 Wheel Drive Hydraulic Front End Wheel Loader
-
Cheap Price Front End ZL 50 5t Wheel Loader for Sale
-
China High Quality Famous ZL50 5t Constructiom Mahcine Wheel Loader for Sale
-
New Brand SZM Wheel Loader 956 (rated Load 5000kg.3m3 Bucket Capacity)
-
3m3 Bucket Capacity ZL50 5T Wheel Loader With CE for Sale
-
High Quality Manufacturer ZL50 5t Wheel Loader for Sale
Product Details
| Condition | New | Brand Name | szm | |
| Model Number | 956 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7836*3010*3300mm | Rated Load | 5000kg | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Weichai Steyr diesel engine offers great power and torque reserve and has lower fuel consumption and less noise. The engine has relable performance and is equipped with the standard 2-stage air filter adaptable to the more dusted work sites.
The LG50 power shift planetary transmission is compact and has more durable gears.the new tyepe of vibration damper is used to improve shock absorbing effects.
The selected model is Lingong 5-ton reinforced drive axle featuring outstanding performance and mature technologies. This drive axle has more load bearing capability and higher reliability.
The whole piece of carriage structure has beem through finite element optimization design and 200,000 times of fatigue intensified test. Both the front and rear carriages use the plate-style structure and thus the gravity is well-distributed. It has strong loading capability and rigidity as well as good stability.
| SPECIFICATIONS | |
| Rated capacity | 3m3 |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time:lifting,dumping, lowering | 11.3s |
| Max.dump height | 3098mm |
| Max.dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline,water cooled, dir.inject,fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max.torsion | 779Nm |
| Model of engine | STEYR WD10G220E21 |
| Rated power | 220hp |
| Min.fuel consuming rate | 214g/kw.h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element,single stage |
| Number of great shift | 4 forward,4 revers |
| Max.travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering,load sensing meets |
| Steering angle(each direction) | 35°C±1 |
| Min.turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32·2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm2 |
