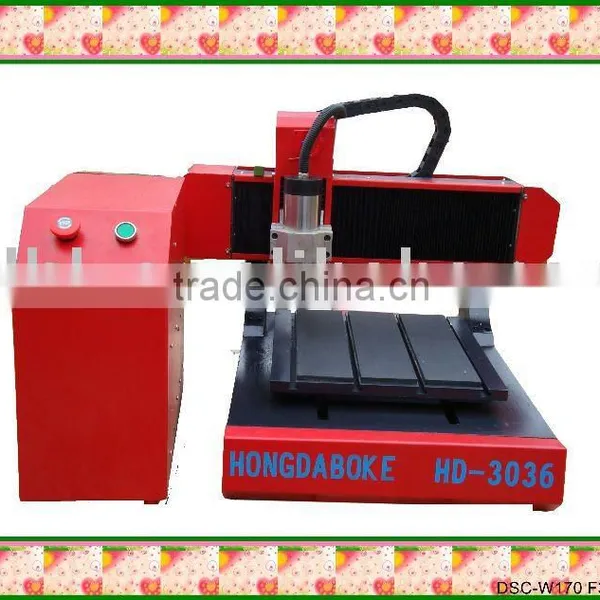

CNC Marble Engraving Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
hongda boke
Model Number:
HD-3036
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-Gantry Stone Cnc Marble Engraving MachineUS$ 1 - 1MOQ: 1 Set -
Engraving Machine HD-9015US$ 1 - 12,000MOQ: 1 Set
-
Stone CNC Router HD-1224NegotiableMOQ: 1 Set
-
HD-1218 Marble Stone Cnc Router Emgraving MachineUS$ 1 - 1MOQ: 1 Set
-
CNC Stone Marble Engraving and Cutting MachineUS$ 1 - 1MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
hongda boke
Model Number
HD-3036
Specifications
CNC Marble Engraving Machine1.Cast iron structure.
2.Imported orbits
3.1.5kw water cooling spindle
4.DSP control system
CNC Marble Engraving Machine:
Technical parameters:
Model |
HD-3036 |
XY working area |
300X360mm |
Z working area |
200mm |
Table size |
300X360mm |
Max feeding |
>35m/min |
Work-holding |
By suction |
Processor |
DSP/Frequency 100MHz |
Interface |
USB |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
DSP |
Power(not include the spindle) |
1840W |
Working voltage |
380V/50Hz |
spindle power rate |
1.5KW(italy air cooling) |
spindle rotating speed |
0-18000rmp/min |
Drive motor |
steper |
*Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
*German double nuts automatic ball screw.
*High speed driver, high speed ,high power
*No dust oiling structure, guarantee the long term running of the mechanical aspect.
*Break point and break knife continue engraving function, can engrave at any place as you like.
*The compatibility is high, CAD/CAM software such as Type3/artcam/castmate/proe/corelerow/Artcut.
*High power frequency changing water cooled spindle, can process hard materials efficiently.
Samples:
