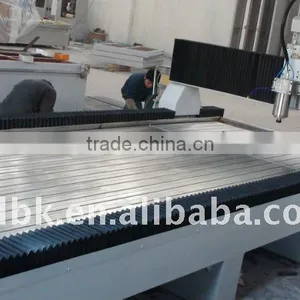

Help CenterStone CNC Router HD-1224
Related Products
-
HD-1218 Marble Stone Cnc Router Emgraving MachineUS$ 1 - 1MOQ: 1 Set -
CNC Stone Marble Engraving and Cutting MachineUS$ 1 - 1MOQ: 1 Set
-
HDM-1218 Cnc Marble Stone Cutting and Engraving MachineUS$ 1 - 1MOQ: 1 Set
-
China Jinan Marble Machine HD-9015US$ 6,800 - 7,800MOQ: 1 Set
-
HD-1218 Stone Marble Engraving and Cutting MachineUS$ 1 - 1MOQ: 1 Set
Specifications
Stone CNC Router HD-12241.Cast iron structure,
2.imported orbits and ballscrews.
3.DSP control system
4.big clamp table
Stone CNC Router:
Standard Features:
Integrally cast lathe bed, firm and non-deforming, high rigidity and accuracy, adopts Taiwan PMI linear square guide rail
Uses high-speed drive motor, the speed enhanced nearly 1.5 times faster than the original type
Memory function ensures the processing point when the blade is broken or having to postpone the process
With good compatibility, this machine can work with many programs such as Type3, Artcam, Castmate, ProE, CorelDraw/CAD and CAM
It achieves 2D and 3D works easily
Technical index:
Working area (X x Y x Z): 1200X2400mm
Structure: whole cast iron
Spindle power: 4.5 kW water cooling spindle or others
Maximum moving speed: 20,000mm/min
Maximum engraving speed: 5,000mm/min
X/Y/Z traveling positioning accuracy: ±0.01/300mm
X/Y/Z repositioning accuracy: ±0.03mm
Cutting thickness of material: ≤40mm
Platform pressure deformity: <0.02mm (150kg)
Spindle speed: 0 to 24,000rpm
Voltage: 220V AC, 50 to 60Hz
Drive motor: high-precision stepper motor (option: servo motor)
Command language: G code, HPGL
ystem: NC-studio (option: DSP)
Tools: specially for metals
Stone CNC Router:
Specifications:
*Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
*German double nuts automatic ball screw.
*High speed driver, high speed ,high power
*No dust oiling structure, guarantee the long term running of the mechanical aspect.
*Break point and break knife continue engraving function, can engrave at any place as you like.
*The compatibility is high, CAD/CAM software such as Type3/artcam/castmate/proe/corelerow/Artcut.
*High power frequency changing water cooled spindle, can process hard materials efficiently.
Suitable Industry
1. Granite, Marble, Bluestone, Sandstone and other stone engraving
2. Hard stone like Granite can be layered engraved to reach 3mm
3. Marble, Bluestone and so on can be engraved to 5mm each time
