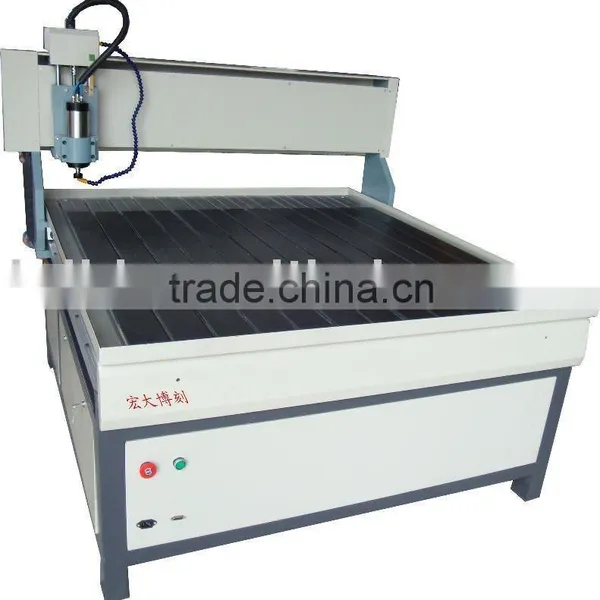

Specifications
cnc machine-glass routerA.Cast iron structure
B.Imported ballscrew
C.DSP control
D.The compatibility is high
cnc machine-glass router Equipment features
One. Linear guide rail from Taiwan, the bearing of the lead guide rail is face to face. Is the linear guide surface contact, high-precision linear guide rail of CNC equipment manufacturers use some of the ordinary life of the 2200-advisory times, long-term use of high accuracy, German automatic double-nuts ball screws, high precision
Two. High-speed driver, faster than the original model, up nearly two meters
Three. X-axis adopt popular no dust structure, effectively guaranteed the long-term operating performance of the mechanical aspects
Four. Break point and break knife continue engraving guarantee the long-term and can engrave at any places as you like
Five. the compatibility is high, compatible Type3/artcame/castmate/proe/Corelerow/Wentai,and other CAD/CAM software, which can operate exquisite relief, video sculpture, three-dimensional art works
High-power frequency changing water cooled spindle can cut 20-30mm organic glass at one cut, widely applies to advertising, mold, gifts, woodworking building model processing and production
cnc machine-glass router technical parameters:
Model |
HD1218 |
Table size |
1200x2000mm |
XY working area |
1380 x 2300mm |
Z working area |
300mm |
Max running speed |
20m/min |
Max engraving speed |
5m/min |
Resolutions |
0.005mm |
Max feeding heigh |
300mm |
Spindle power |
3-8KW |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
stepper |

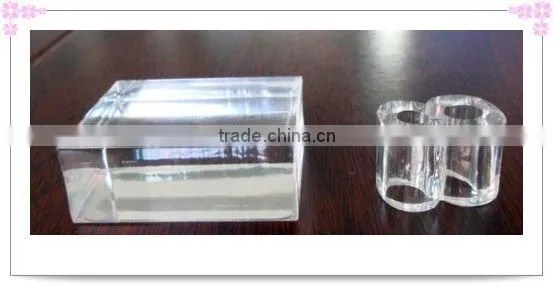

SAMPLE:
In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting machines and so on.
we can make carving machines with all specifications to meet users.
