HD-1325 Advertising Cnc Router

Specifications

advertising cnc router:1300*2500mm
1.step drive motor
2.3.0kw spindle power
3.z working area>110mm
4.120mm max feeding

HD-1325 Advertising cnc router:



 Equipment Features:



1.  German automatic double-nut ball screws.

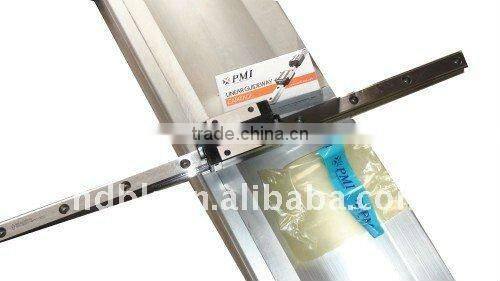

2.Linear guide rail ,the bearing of the lead guid rail is face to face. Is the linear guide surface contact, high-precision linear guide rail of CNC equipment manufacturers use some of the ordinary life of the 2200-Advisory times, long-term use  of high accuracy.
3.High-speed driver, faster than the original model, up nearly two meters.
4.X-axis adopt popular no dust structure, effectively guaranteed the long-term operating performance of the machinical aspects.
5.Break point and break knife continue engraving fuction supporting up to nine points and can engrave at any places as you like
6.The compatibility is high;compatibleType3/artcarm/castmate/proe/Corelerow / Wentai, and other CAD / CAM software, which can produce exquisite relief, video sculpture, three-dimensional art works.
7.High-power frequency changing water cooled spindle can cut  20-30 mm organic glass at one cut , widly applies to advertising, mold, gifts, woodworking building model processing and production.







Technical -parameters:



Model	HD-1325
XY working area	1250x2440mm
Z working area	>110mm
Table size	1440x3000mm
Max travel speed	8m/min
Max engraving speed	6m/min
Resolution ratio	0.01mm
Reposition accuracy	0.05mm
Max feeding height	120mm
Command	G code*.u00*.mmg*.plt
Surroundings for software	Windows98/2000/xp
Power(not include the spindle)	1.5KW
Power	AC220V/50Hz
spindle power rate	3KW
spindle rotating speed	0-24000rpm/min

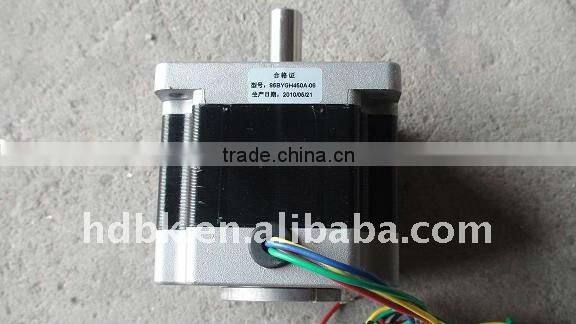

Drive motor	Stepper



SAMPLES for advertising cnc router:







In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting  machines and so on.



we can make carving machines with all specifications to meet user's requirements.
