Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > ow Consumption Desktop Laser Machine for Acrylic,leather,wood,cloth,paper
ow Consumption Desktop Laser Machine for Acrylic,leather,wood,cloth,paper
US$ 2,500 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
CNC
Place of Origin
China
Brand Name
HD
Model Number
HD-6090
Specifications
Cheap CNC Wood Carving Machine 60901.DSP/NC studio control system
2.T-slot/vacuum table
3.High speed stepper/servo motor
Cheap CNC Wood Carving Machine 6090 (CEcertification)
Features:
1) Lathe bed is cast wholly and firmly and will not deform
2) Imported ball screw rod and round guide rail to ensure accuracy
3) Subdivision stepper motor with excellent performance, quick speed, stable operation, and large cutting movement to ensure long and safe operation
4) Frequency conversion water-cooling large power motor, low noise, even speed
5) Humanistic design, the machine can be disassembled, so it is easily transported
Specifications:
| Working size X,Y,Z | 600×900×100mm or longer | |||||
| Command accepted | G code,u00,mmg,plt | |||||
| Spindle Motor(optional) | 1.5kw,Inverter-driven spindle motor cooled by water Option: Italian HSD air-cooled | |||||
| Working mode | stepper | |||||
| Spindel speed | 0-24000rpm w/best frequency inverter | |||||
| Drive mechanism | German imported ballscrew for x,y,z axis | |||||
| XYZ Guide rail | X,Y,Z Round shaft Option: Square linear rail for Y, round rail for X,Z | |||||
| Motion positioning accuracy | ± 0.03/300mm | |||||
| Repositioning accuracy | ± 0.05mm | |||||
| Max motion Speed | 25,000mm/min | |||||
| Max working speed | 9,000mm/min | |||||
| Engraving Tools | Ø3.175mm,Ø6.00mm | |||||
| Operating voltage | AC110V/220V/50Hz/60Hz (optional) | |||||
| Software | Type3, Ucancam, ArtCAM, Variable CAD/CAM software | |||||
| Support software | Windows98/2000/XP | |||||
| Operating system | Ncstudio PC control (Free) Option: Mach3 // DSP off-line control system with USB interface,128M flash memory | |||||
Optional equipments:
Rotary device with Dia 80mm, 100mm, 200mm.
Mist sprayer and flume

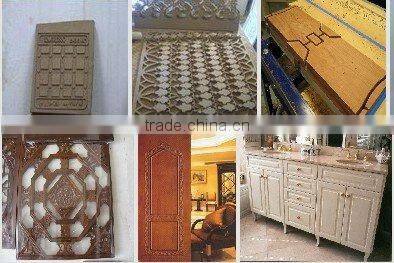

Applications(CE Authorized products):
a) Chest species
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
| Guarantee&Aftersales service: | |
| guarantee for one year | |
| 24 hour technical support by email or calling | |
| user friendly english manual and Video CD for manchine using and manitenacing |
| Spare parts | Qty | Unit | Description | ||
| cutter | 12 | pcs | 90x32mm Conical Carbide Router Bit & 30mm Flat Carbide Cutter | ||
| collet | 2 | pcs | 3.175mm, 6.0mm | ||
| clamp | 8 | pcs | |||
| water(air) -cooling pump | 1 | unit | 50w,135w | ||
| spanner | 2 | pcs | |||
| brush | 1 | pcs | |||
| power cord | 1 | pcs | |||
| USB cable | 1 | pcs | |||
| software | 1 | pcs | Type3 English Ver. 5.3 w/License | ||
