Cnc Engraver With Working Size 1200*1200mm HD-1212

Specifications

cnc engraver:
1.with three spindle heads
2.Leadshine MD2278 high speed driver
3.1.5kw water cooling spindle
4.Step motor

cnc engraver with working size 1200*1200mm HD-1212 :



• Cast aluminium structure
• linear orbits
• ballscrew
• Wei Hong control system
• Wentai Software
• 1.5Kw water cooling  spindle
• 20 cutters (φ3.175,  φ4,  φ6),  3 collet
• step motors
• work holding: by suction



Equipment Features:

• German automatic double-nut screws
• Linear guide rail,the bearing of the lead guid rail is face to face.Is the linear guide surface contact,high-precision linear guide rail of CNC equipment manufactures use some of the ordinary life of the 2200-Advisory times,long-term use of high accuracy
• High-speed driver,faster than the original model,up nearly two meters
• X-axis adopt popular no dust structure,effectively guaranteed the long-term operating performance of the mech anical aspects
• Break point and break knife continue engraving fuction supporting up to nine points and can engrave at any places as you like

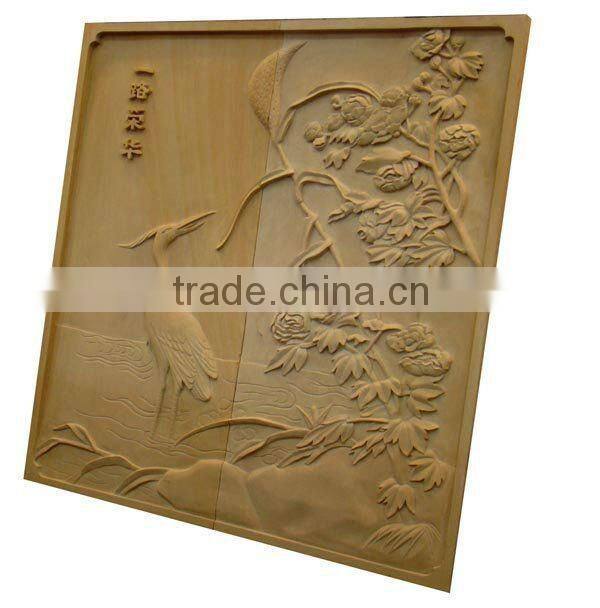

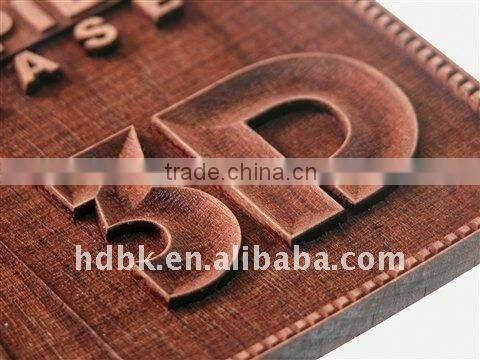

• The conpatibility is high;compatible Type3/artcarm/castmate/proe/Corelerow/Wentai,and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works

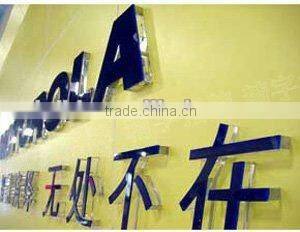

• High-power frequency changing water cooled spindle can cut 20-30mm organic glasss at one cut,widly applies to adertising,mold,gifts,woodworking building model processing and production.

Technical Parameters:



Model	HD-1212
XY working area	1200x1200mm
Z working area	>100mm
Table size	1340x1420mm
Max travel speed	4m-5m/min
Max engraving speed	2m-3m/min
Resolution ratio	0.005mm
Reposition accuracy	0.05mm
Max feeding height	110mm
Command	G code*.u00*.mmg*.plt
Surroundings for software	Windows98/2000/xp
Power(not include the spindle)	400W
Working voltage	AC220V/50Hz
spindle power rate	1.5/2.2KW
spindle rotating speed	0-24000rpm/min
Drive motor	Stepper



In addition, we have woodworking engraver, relief engraver, cylinder craft wood engraver, special mould engraver, stone engraver, advertising machines, laser engraving/cutting  machines and so on.



we can make carving machines with all specifications to meet user's requirements.
