Specifications
Cheap wood machine priceDSP control system
1.5/2.2KW water/air cooled spindle
T-slot table
High speed stepper and driver
Cheap wood machine price for wood, acrylic, aluminum, copper, PVC, MDF etc
wood machine standard features:
1. Germany automatic double-nut ball screw.
2. Linear guide rail, the bearing of the lead guid rail is face to face. For the guide surface contact, high-precision linear guide rail of CNC equipment manufactures use some of the ordinary life of the 2200-Advisory times, long-term use of high accuracy
3. High-speed driver, faster than the original model, up nearly two meters.
4. X-axis adopt popular no dust structure, effectively guaranteed the long-term operating performance of the machinery aspects.
5. Break point and break knife continue engraving function supporting up to nine points and can engraver at
any places as you like.
6. The compatibility is high. Compatible Type3/ artcarm/ castmate/ proe/ Corelerow/ wentai, and other
CAD/CAM software, which can produce exquisite relief, video sculpture, three-dimensional art works.
7. High-power frequency changing water cooled spindle can cut 20-30mm organic glass at one cut, widely applies to advertising, mold, gifts, woodworking building model
processing and production.
wood machine technical-parameters:
Model |
HD-1212 |
XY working area |
1200x1200mm |
Z working area |
>100mm |
Table size |
1340x1420mm |
Max travel speed |
4m-5m/min |
Max engraving speed |
2m-3m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
110mm |
Command |
G code*.u00*.mmg*.plt |
Surroundings for software |
Windows98/2000/xp |
Power(not include the spindle) |
400W |
Working voltage |
AC220V/50Hz |
spindle power rate |
1.5/2.2KW |
spindle rotating speed |
0-24000rpm/min |
Drive motor |
Steper |

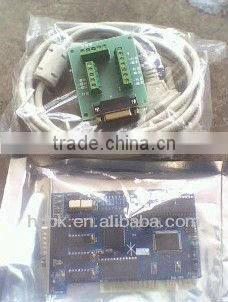

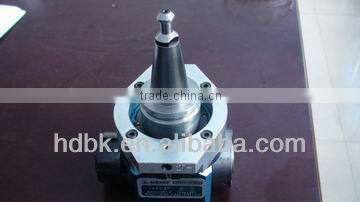

Parts of wood machine price:
Applicable areas:
