Mini CNC Engraving Machine HD-6090

Name: Mini CNC Engraving Machine HD-6090
Brand: Hongda Boke
SKU: 121550327
Availability: InStock

Beijing Hongda Boke Scien-Tech Development Co., Ltd.

US$ 2,000 - 3,800 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Hongda Boke

Model Number HD-6090

Voltage AC220V/50HZ

Dimension(L*W*H) 600*900*150mm

Specifications

Mini CNC Engraving Machine
1.Cast iron structure,ballscrew
2.1.5KW water cooled spindle
3.DSP control system
4.stepper

Mini CNC Engraving Machine

Mini CNC Engraving Machine Features:

HD-6090 style is an unique CNC engraver , which is designed for 3D basso-relievo in mahogany, classical furnitures.And it has high precision , fast speed, it can meet the needs of cutting flowers completely.
Three axises are dustproof, the lathe bed is cast wholly. It is stable, durable, no deshape, high precision location.
Internagonal advanced DSP handle(Weihong system optional), a way to break memory, produce on accident (break) or next day .
Ball screw rod and round rail, original screw nut, imported linear and square rail. Water-cooled 1.5kw spindle motor.

Mini Engraving Machine applicable areas:

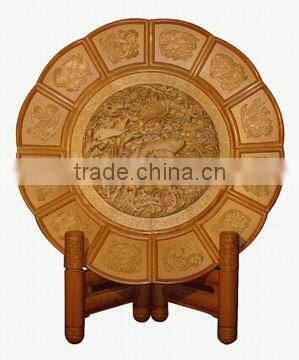

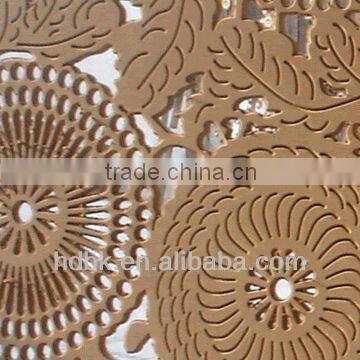

Wooden areas:may used in redwood classical and antique furnitures, wood carving,girts wooden box, redwood jewelry boxes, ink-stone cutting, decorative products sculpture,fine jewelry carving.

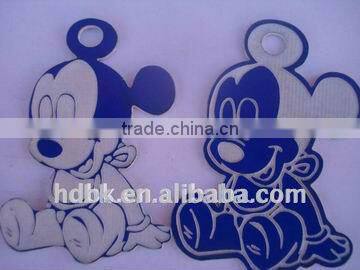

ADS: used in producing all models:company plate,signs,buliding models, emblem, badge, display panels, fair signs, building numbers, signs of decoration , furniture and other decoration.
Other lines:also used in portraits, landscapes, calligraphy lettering , seal carving and other plane surface carving, basso-relieve.

Mini Engraving Machine Technical-Parameters:

NO.	Description	Parameter
1	X,Y,Z Working Area	600x900x120mm
2	Table Size	780X1380mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z repositioning Positioning Accuracy	±0.02mm
5	Table Surface	Aluminum
6	Frame	cast iron
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings or Ball Screw
9	Max. power Consumption	0.8Kw
10	Max.Rapid Travel Rate	8000mm/min
11	Max.Working Speed	6000mm/min
12	Spindle Power Motor	1.5Kw self cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz/AC380V 50HZ
16	Command Language	G code
17	Operating System	DSP System (Option:wEIHONGSYSTEM)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatability	Type3 software, Ucancam software, (Option:Artcam software)
23	Running Environment	Temperature: 045 Relative humidity: 30%75%
