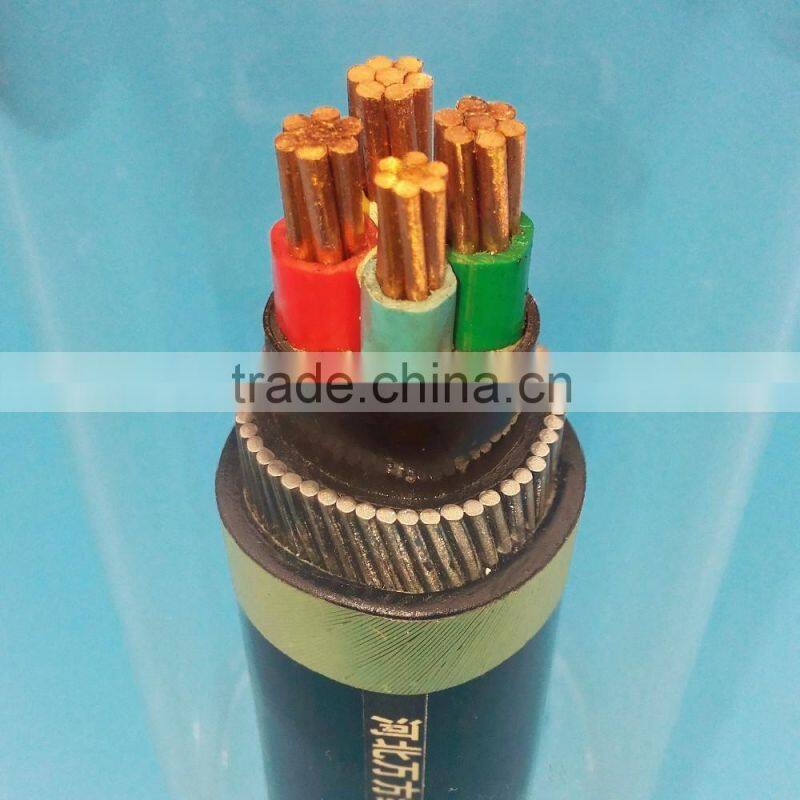

Low Voltage pvc insulated flexible pvc cable
PVC/XLPE power cable is used to transmit and distribute power in power transmission and distribution system. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Type: VV-0.6-1 3*10+1*6mm2( Low Voltage pvc insulated flexible pvc cable )
Rated Working Temperature:0ºC to 70ºC
Short Circuit Temperature:160ºC(Not more than 5s)
Laying Temperature:≥0ºC
Bending Radius:Multi-core≥15D,single ≥20D
Certificate: ISO9001,ISO14001,ISO18001,CCC
SIZE |
CORE NO. |
CROSS-SECTION AREA(mm²) |
|
CU |
AL |
||
VV,VY |
VLV,VLY |
1 |
1.5~630 |
|
VV,VY VV22,VV23 VV32, VV42
|
VLV,VLY VLV22,VLV23 VLV32, VLLV42
|
2 |
1.5~300 |
3 |
1.5~300 |
||
4 |
1.5~300 |
||
3+1,3+2,4+1 |
2.5~300 |
||
Power cable is used for fixed installations such as electric power distribution network or industrial installations, which is laid indoors,outdoors, in tunnel or in cable trench, unable to bear external mechanical force.
cross-section area (mm²) |
nominal Insulation thickness(mm) |
maximum conductor dc resistance at 20℃(Ω·km) |
carrying capacity (A) |
||||
air |
underground |
||||||
Cu |
Al |
Cu |
Al |
Cu |
AL |
||
1.5 |
0.8 |
12.1 |
18.9 |
15 |
- |
22 |
- |
2.5 |
0.8 |
7.41 |
12.1 |
19 |
15 |
29 |
23 |
4 |
0.8 |
4.61 |
7.41 |
26 |
20 |
38 |
30 |
6 |
0.8 |
3.08 |
4.61 |
32 |
26 |
47 |
39 |
10 |
1.0 |
1.83 |
3.08 |
46 |
35 |
65 |
50 |
16 |
1.0 |
1.15 |
1.91 |
60 |
47 |
84 |
65 |
25 |
1.2 |
0.727 |
1.20 |
77 |
60 |
110 |
84 |
35 |
1.2 |
0.524 |
0.868 |
95 |
74 |
130 |
100 |
50 |
1.4 |
0.387 |
0.641 |
115 |
90 |
155 |
120 |
70 |
1.4 |
0.268 |
0.443 |
145 |
115 |
195 |
150 |
95 |
1.6 |
0.193 |
0.320 |
185 |
140 |
230 |
185 |
120 |
1.6 |
0.153 |
0.253 |
210 |
165 |
260 |
205 |
150 |
1.8 |
0.124 |
0.206 |
245 |
190 |
300 |
230 |
185 |
2.0 |
0.0991 |
0.164 |
280 |
215 |
335 |
260 |
240 |
2.2 |
0.0754 |
0.125 |
335 |
260 |
390 |
300 |
300 |
2.4 |
0.0601 |
0.100 |
375 |
295 |
435 |
340 |
Hebei Wanfang Wire & Cable Group Co., Ltd. established in 2004. Our main and advantage products include 35K V or lower X L P E insulated power cable, 1 and 3 K V P V C insulated power cable, 10 K V or lower aerial cable, pre-branch cable, control cable, computer cable, A C S R, A A C, building cable.
Wooden drum, Iron drum or Iron-wooden drums or as your request.
1. Q: Are you manufacturer or trading company?
A: We are Group company with 40000m² total building size, big production capacity.
2. Q:Can you provide Type Test Reports?
A: Yes we can provide type test reports issued by Chinese laboratories.
3. Q:What is your MOQ?
A: You are advised to confirm it with us directly as it’s based on different cable type.
Usually it’s 500 meters for Medium Voltage Cables.
10000 meters for electrical wire.
4. Q:How can I get your price list?
A: Please leave your contact way such as Email/MSN/Skype/Trademanager to us. We will contact to you and send our quotation sheet to you.
5. Q: Required mainly certificates?
A: Our products are certified by ISO9001/ISO14001/CCC/TUV etc.
