Small Signal MOSFET
30 V, 0.56 A, Single N−Channel, SOT−23
Features
• Low Gate Voltage Threshold (VGS(TH)) to Facilitate Drive Circuit
Design
• Low Gate Charge for Fast Switching
• ESD Protected Gate
• SOT−23 Package Provides Excellent Thermal Performance
• Minimum Breakdown Voltage Rating of 30 V
• These are Pb−Free Devices
Applications
• Notebooks:
♦ Level Shifters
♦ Logic Switches
♦ Low Side Load Switches
• Portable Applications
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Parameter Symbol Value Unit
Drain−to−Source Voltage VDSS 30 V
Gate−to−Source Voltage VGS ±20 V
Continuous Drain
Current (Note 1)
Steady
State
TA = 25°C ID 0.5 A
TA = 85°C 0.37
Power Dissipation
(Note 1)
Steady State PD 0.69 W
Continuous Drain
Current (Note 1)
t < 10 s TA = 25°C ID 0.56 A
TA = 85°C 0.40
Power Dissipation
(Note 1)
t < 5 s PD 0.83 W
Pulsed Drain Current tp = 10 s IDM 1.7 A
Operating Junction and Storage Temperature TJ,
Tstg
−55 to
150
°C
Source Current (Body Diode) IS 1.0 A
Lead Temperature for Soldering Purposes
(1/8" from case for 10 s)
TL 260 °C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.

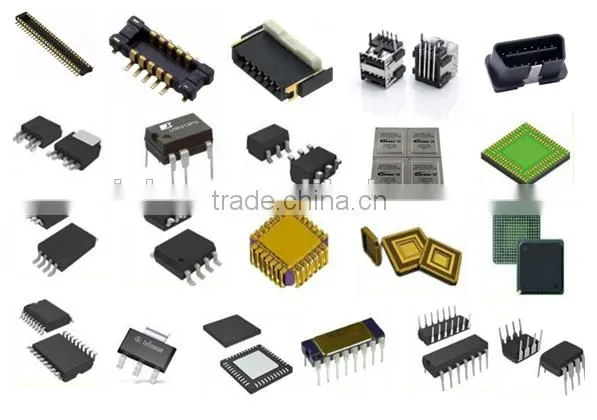

Shenzhen Ruichengao Technology co.,Ltd is a distributor of various types of electronic components .We specialized in connentor,IC,capacitance,resistance etc.
Our company is committed to supplying components for portable computers,touch screen,mobile phones,audio equipments,car DVD and other household appliances.
To support our customers,we have large stock inventory for the rare parts in Hong Kong and Shenzhen.We also have wide supply chains in Europe,America,Southeast Asia and other markets.So that we are qualified to assist all of our intemational customers with price and delivery quotations.
| Ics | Memory | Resistors | Buzzer |
| MCU | Relay | Capacitors | Diode |
| Connector | Crystal | Switches | Terminal |
| IGBT | Rectifiers | Transistors | Audion |
| Module | Inductors | LCD | LED |
Our advantage
-We have large stock inventory for the rare parts in Hong Kong and Shenzhen;
-100% Quality guarantee on all productes
Quality Warranty
1. Quality Assurance for 30-120days
2. New, unused and original goods
Mode Of Payment
1. T/T in advance
2. West Union
3. Escrow
4. Paypal
Send Inquiry to This Supplier
