H*D*M*I Switch
1.support 12-bit deep color,full 1080p
2.multifunctional on switching:intelligent or mechanical
3.supports with hdmi 1.3b
4.maintains high resolution video beautiful,sharp hdtv resolutions up to 1080p,2k,1440p graphics and computer resolutions up to 1920*1200 easily achieved

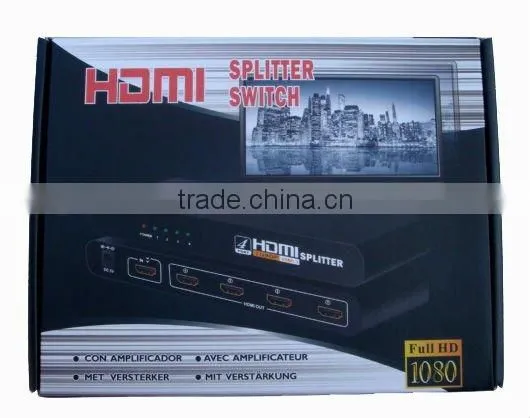

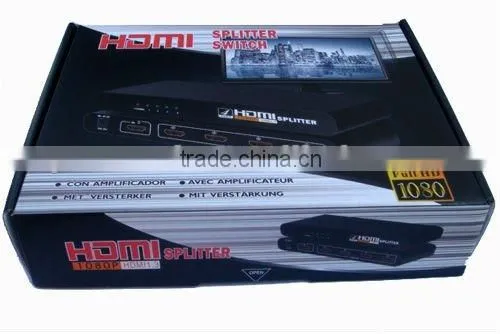

5. colorfull box packing: ( the below box packing picture is for your reference)

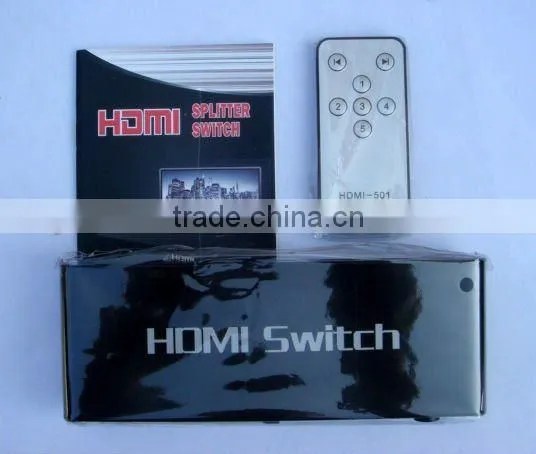

1x hdmi switch
1x user manual
1x remote control
Product details hdmi switch
The mini HD*I Switcher allows access to multiple H*D*M*I sources, using a single H*D*MI sink. The Switcher allows three H*D*M*I devices to be switched easily through one HD*I compatible monitor or projector. The Switcher can also be placed at the end of a long H*D*MI cable to regenerate the H*D*M*I signal.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES hdmi switch 5 to 1
l Three H*D*M*I 1.3 input signals switched to a single H*D*M*I 1.3 sink devices
l HDCP 1.2 protocol compliant
l Support deep color 30bit, 36bit
l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
l Support signal retiming
l Support input up to 15metres AWG26 H*D*M*I 1.3 standard cable length,
output up to 25metres AWG26 cable length
l Inputs can be switched with the IR remote control,also can be controlled by button.
l It can smartly jump over those input sources which are not connected.
l With the smart function of memory, it can come back to the latest status when restarted
or reconnected.
l No loss of quality
l Installs in minutes
l Need DC5V/0.8A power supply
CONNECTING AND OPERATING hdmi switch
1. Connect one cable from each H*D*M*I source devices into HD*I Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HD*I Switcher outputs.
3. Connect 5V power supply to the H*D*M*I 2x1 Switcher.
4. Use the RMT-IR remote control port to remotely switch between sources.
5.MINI Size
SPECIFICATIONS:MINI HDMI Switch
H*D*M*I version:H*D*M*I 1.3
HDCP version:HDCP1.2
H*D*M*I resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format :24bit/deep color 30bit,36bit
Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth:10.2Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p
Input/Output DDC signal : 5Volts p-p (TTL)
Input cable distance :.≤15m HDMI AWG26
Output cable distance:.≤25m AWG26 HDMI 1.3 standard cable
Max working current :600mA
Power adapter format..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/0.8A
Operating Temperature range: (-15 to +55°C)
Operating Humidity range:5 to 90%RH (No Condensation
