Sealing oils fuels gases freons CAF Non asbestos gasket sheet
| Oil-resisting Asbestos Rubber Sheets with Wire Inserted Physical Property | ||||||||||
| GB/T 539 - 2008 | ||||||||||
| Item | NY150 | NY200 | NY250 | NY300 | NY400 | NY510 | NY600 | |||
| Reference | Density | 2.0 g/cm3 | ||||||||
| Thickness | 0.4 mm - 6.0 mm | |||||||||
| Compressibility | 7-17 | |||||||||
| Transverse Tensile Strength ≥ | 9MPa | 10MPa | 11MPa | 12.7MPa | 15MPa | 18MPa | 20MPa | |||
| Stress-relaxation ≤ | 45 | 40 | ||||||||
| Recovery ≥ | 35 | 40 | 45 | 50 | 50 | 50 | 60 | |||
| Max. pressure | 1.5MPa | 2.0MPa | 2.5MPa | 3.0MPa | 4.0MPa | 5.8MPa | 6.0MPa | |||
| Max. temperature ℃ | 150 | 200 | 250 | 300 | 400 | 510 | 580 | |||
| Flexibility | No crack | |||||||||
| Oil resisting performance | IRM #903 Normal Oil 150℃ x 5h | Tensile Strength (MPa) ≥ | 8 | 8.5 | 9 | 10.8 | 12 | 15 | 16 | |
| Change in Thickness (%) ≤ | ----- | 20 | 20 | 15 | 15 | 10 | 10 | |||
| Change in Weight (%) ≤ | 23 | 23 | 23 | 23 | 9 | 15 | 15 | |||
|
ASTM Fuel 8RT x 5 h
|
Tensile Strength (MPa) ≥ | 6 | 6.5 | 7 | 7.9 | 10 | 12 | 14 | ||
| Change in Thickness (%) ≤ | ----- | 25 | 25 | 25 | 20 | 15 | 15 | |||
| Change in Weight (%) ≤ | 22 | 22 | 22 | 22 | 15 | 18 | 18 | |||
| Nitrogen gas sealability ml/Min ≤ (Q/YSM BJS001-2007) | 2.5 | 2 | 1.5 | 1.5 | 1 | 0.8 | 0.5 | |||
| Oil sealability | No Leakage | |||||||||
| Color | Black, Green, Red, Yellow, Blue, Grey or as request | |||||||||
| Size |
4120mm x 1520mm, 2060mm x 1520mm, 1520mm x 1360mm, 3810mm x 1270mm, 1270mm x 1270mm, 1520mm x 1520mm, 1520mm x 1020mm or as request |
|||||||||

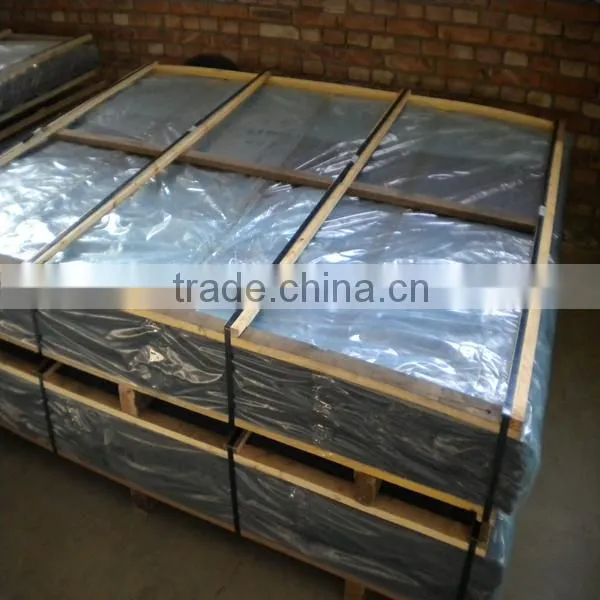

In rolls with plastic bags inside and weave bags outside or with wooden pallets
Dalian Shangdu WJH Co., Ltd is a professional manufacture of non-asbestos rubber sheet,industrial rubber sheet, sealed gasket materials and heat preservation materials.
1.Q: Are your Manufacturer or Trading Company?
A: We are a professional adhesive products manufacturer,and our plant locates in Cangzhou of Hebei Province,only 3 hours away from tianjin port.
2.Q:Can we get some Samples?
A:Samples are free.You just need to pay the international express freight.
3.Q: Can you OEM?
A: Yes,we can
4:Q:What's the Payment terms?
A:Our normal practice:30% deposit of total amount before production,and 70% balance payment before shippment. However this is open for discussion.
If any questions,please feel free to contact us.
Tel: +86-411-86641392
Fax: +86-411--86656622
What's app: 86-1394281-2962
