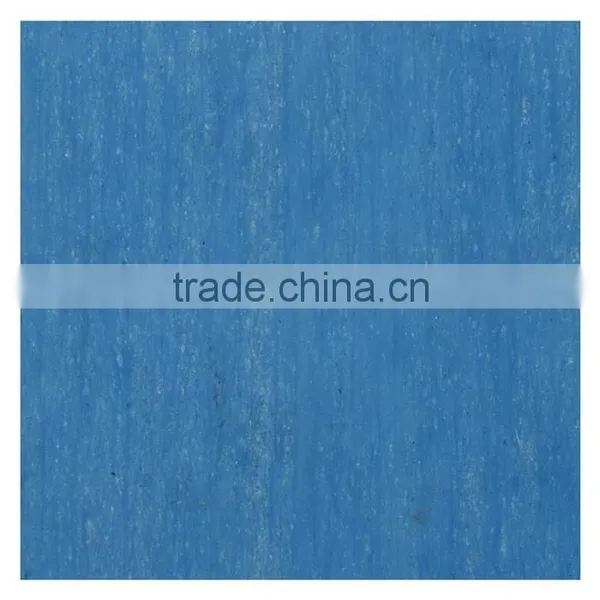

Good Quality 0.5mm Flat Sealing Sheet /No Paronite Gasket Sheet / Gasket Jointing Sheet

Name: Good Quality 0.5mm Flat Sealing Sheet /No Paronite Gasket Sheet / Gasket Jointing Sheet
Brand: DLSD
SKU: 121511599

US$ 0.55 - 3.15 MOQ: 500 Kilograms

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

DLSD

Model Number:

XB150-XB510

Dalian Shangdu WJH Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang(Tianjin) China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name DLSD

Model Number XB150-XB510

Material Rubber

Shape Flat Gasket

Standard or Nonstandard Standard

We are Factory of kinds of Non Asbestos Rubber Sheet / Seal Gasekt Sheet.

We are in this line for more than 23 Years!

Non Asbestos Rubber Sheet / Seal Gasket Sheet

(Non CAF Asbestos Jointing Sheet Paronite )

We produce kinds of Non Asbestos Rubber Sheet. It is without asbestos, but we also produce the sheet with it.

Non Asbestos Rubber Sheet without asbestos or with it XB150-XB510 NXB150-NXB510

Non Asbestos Rubber Sheet with Graphite and wire mesh

Non Asbestos Latex Sheet with Punched Sheet

Product Description

Non-Asbestos Rubber Sheet / Sealing Gasekt Sheet physical property
GB/T3985-1995
Item	XB150	XB200	XB250	XB300	XB350	XB400	XB450	XB510
Thickness	0.4mm ~ 6.0mm
Density	2.0 g/cm³
Burning loss≤	30%		30%			28%
Rebound degree	40		40			45
Temperature °c	150~170	200~220	250~270	300~320	350~370	400~420	450~470	510~550
Pressure MPa	1.5~2	2~3	3~4	4~5	7~8	8~9	11~12	14~15
Tensile Strength ≥	5MPa	6MPa	7~8MPa	9MPa	12MPa	15MPa	19MPa	22Mpa
Steam airtightness	with the temp of 150~170 °c and the pressure of 1.5~2MPa, keep for 30 min without puncture	with the temp of 200~220°c and the pressure of 2~3MPa, keep for 30 min without puncture	with the temp of 250~270°c and the pressure of 3~4MPa, keep for 30 min without puncture	with the temp of 300~320°c and the pressure of 4~5MPa, keep for 30 min without puncture	with the temp of 350~370°c and the pressure of 7~8MPa, keep for 30 min without puncture	with the temp of 400~420°c and the pressure of 8~9MPa, keep for 30 min without puncture	with the temp of 450~470°c and the pressure of 11~12MPa, keep for 30 min without puncture	with the temp of 510~550°c and the pressure of 14~15MPa, keep for 30 min without puncture
Aging Coefficient ≥	0.9
Compressibility %	12±5
Stress-relaxation ≤	50
Pliability	No Crack
Color	Black, green, red, grey, yellow, or as request
Size	4120mmx1520mm, 2060mmx1520mm, 1520mmx1350mm, 3180mmx1270mm, 1270mmx1270mm, 1520mmx1520mm, 1520mmx1020mm, or as request.
P.S.	Available with wire/metal mesh reinforcing or graphite coating
