Home > Products > Injection Mold > plastic container mould
plastic container mould
- 100 Set / Sets per Month
- Shanghai/Ningbo
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Eceng | Model Number: | zh-29 |
Shaping Mode: | Blowing Mould | Product Material: | Other, Steel, PE,PP,PS,PVC, etc | Product: | Household Product |
Product Description
Specifications
1.Knife edge temperature HRC40~45 degrees2.Use 3 CR17
3.Copy cool
4.plastic container mould
ntainer mould,mould
1.Knife edge temperature HRC40~45 degrees
2.Use 3 CR17
3.Copy cool
4.plastic container mould
ntainer mould,mould
1.Description
Brand Name | Eceng Company |
Application | All kinds of food bottles, shampoo and cosmetics bottles blow mould, high-temperature blowing moulds, ordinary preform bottle, fruit juice bottles, water bottles etc |
Working Conditions | -10~120 centigrade |
Product Material | PE,PP,PS,PVC, etc |
Mould Material | P20,H13,3Cr17, etc |
Hot Treatment hardness | HRC50-60 degrees,mirror surface electroplating |
Operating Life | 500000shots,Provide accessories for free in the first year and technical advices all life time long |
Packing Details | Packed in wooden cases, or package design according to the requirment of customers |
According to all kinds of special requirements of customers,for instance, we can engrave LOGO and Ads.
We can design products appearance and provide bottle blow produce according to customer requirements, and provide blow bottle lid and relevant handle related accessories.

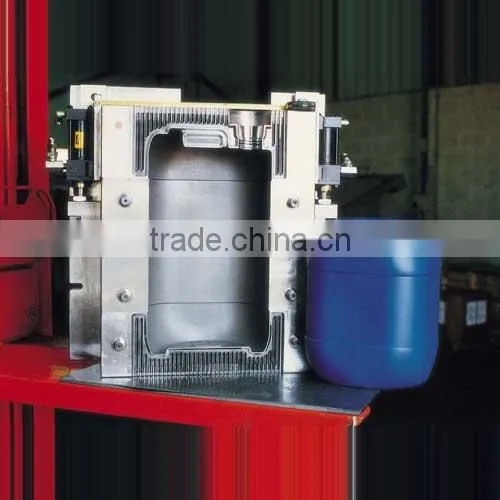

Structure of the mould
Bottle blowing mould is consisted of cavity, thread and bottom. General bottle blowing mould can be divided into two categories: PET bottle mould and non- PET bottle mould. Non-PET bottle blowing mould has three innovative advantages which don’t exist on the market at present:
Name | Category | Discriable |
Deflashing | General Mould | knife edge temperature 60 degrees around ,very hard,easily break,affect bottle appearance |
knife edge temperature under 30 degrees ,easy variant,affect bottle appearance | ||
Our Companys' Mould | Knife edge temperature HRC40~45 degrees,joint line is beautiful | |
Mould Whorl | General Mould | Ordinary materials |
Our Companys' Mould | Use 3 CR17,prolong the service life of mould, easy disassembly and replacement | |
Cooling | General Mould | General way, uneven cooling, product is easy to break |
Our Companys' Mould | Copy cooling, imitates the product itself shape to processing cooling,cooling evenly |
Mould Maintenance:
1.Thermal oil:Adopt the hydraulic oil for the maintenance to get in the inlet of cooling water ,which can play a lubrication, rust-proof role.
2.Maintenance of guiding column:guilding column shoulg be painted a small amount of hydraulic oil, cycle once a month.
3.It needs to be painted rustpreventive if it stops production for long term.
