Specifications
1.capacity:2000-20000bphntroler:PLC touch screen
3.certificate:CE
4.bottle:glass,PET
wine filling machine
Specification
Item |
Subject |
Parameter |
Parameter |
1 |
Model |
YCF-13-24-8F |
YCF-13-24-24-8F |
2 |
Name |
Filling capping two-in-one |
washing filling capping three in one |
3 |
Washing head |
/ |
24heads |
4 |
Filling head |
24heads |
24heads |
5 |
Sealing head |
8heads |
8heads |
6 |
Productivity |
6000bph-8000bph |
6000bph-8000bph |
7 |
Motor power |
3kw |
4kw |
8 |
Overall size |
2500*1850*2400 |
4000*1850*2400mm |
9 |
Weight |
3T |
4.5T |
10 |
Applicable bottle size |
glass bottle Diameter:50-92mm Bottle height:150~340mm volume: 350~2000ml
|
glass bottle Diameter:50-92mm Bottle height:150~340mm volume: 350~2000ml |
11 |
Applicable cap |
Aluminum and crown |
Aluminum or crown |
12 |
Timing type |
Transducer |
Transducer |
13 |
Cap settling motor power |
0.37kw |
0.37Kw |
14 |
Water pressure for washing |
|
>0.06Mpa <0.2Mpa |
14 |
Washing time |
|
2sec |
16 |
Washing drop dryer time:3.4sec |
|
3.4sec |
17 |
Valve space between |
|
104.72mm |
18 |
Pressure of washing |
|
0.25-0.3Mpa |
19 |
Filling temperature |
0-4°C |
0-4°C |
20 |
Compress air wastage |
20NM3/hour |
20NM3/hour |
Technical features
1.The suspending bottleneck clamping design make the bottle stable during the high speed moving conditions.By changing a few parts,it can meet the need of production of different types of bottles easily.
2.The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle's screw thread.Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3.The advanced micro negative-pressure filling technology used in this machine makes the filling quick,steady and accurate.The beverage -holding tank is fully-closed and also,temperature control device and CIP washing interface are intalled.
4.This machine can meet all the technical requirements for hot filling below 95 degree.And before capping,bottle mouth will be cleaned by RO washing device.
5.Advanced technologies ,such as human-machine interface touch-screen and PLC computer program control are adopted in this machine.
Advantages
1. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity,low labor intensity.
2. The main machine adopts advanced PLC control technology
3. The key electric elements adopt products made by international famous companies,such as Mitsubishi and Siemens.

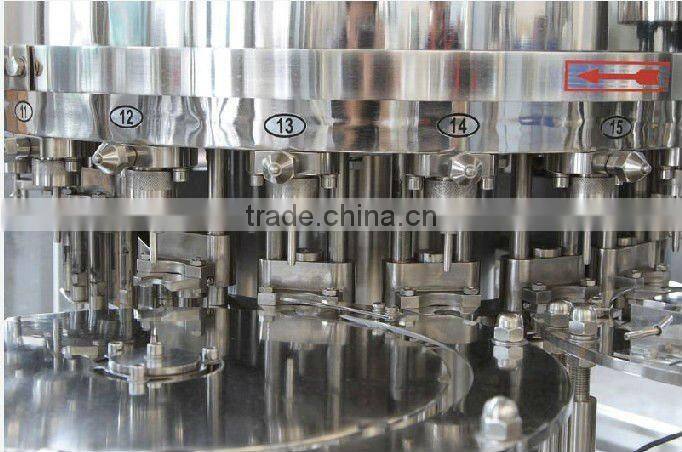

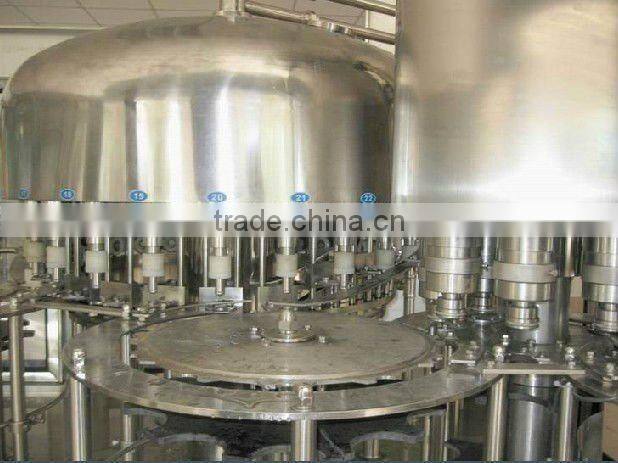

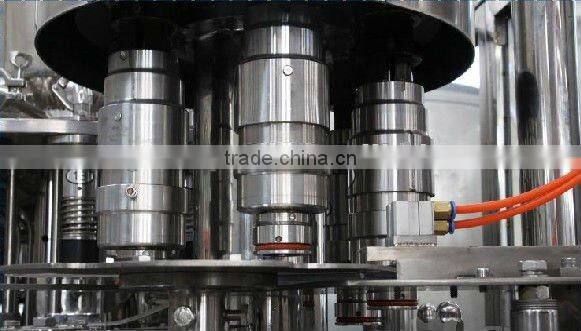

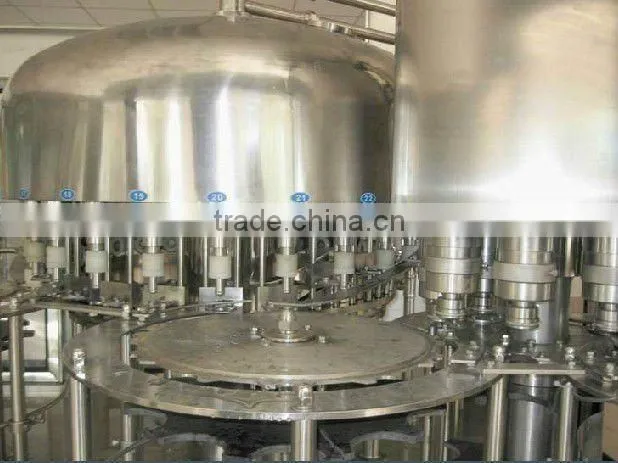

Pictures
