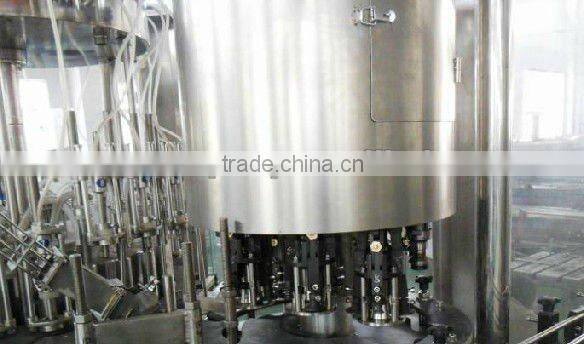

Mineral/Pure Water Bottle Filling Machine/Line

Specifications

Filling machine:
1.Water Bottle Filling Machine
2.Capacity:1000-30000b/h
3.Certificate: SGS, CE

Water Bottle Filling Machinery:

1. Capacity:1000-24000bph
2. Filling volume:0.25-3L
3, Advanced Technology
4, High Efficiency





The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.

Main Technical parameters :
Model	CGF16126	CGF18186	CGF24248	CGF32328	CGF404010	CGF484812	CGF606015
Heads of washing ,filling , sealing	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	48-48-12	60-60-15
Production capacity (bottle/hour)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
Suitable bottle diameter(mm)	φ=50-100 H=170 330-1500ml
Spraying pressure	2~3
Motor power	Main motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw	Main motor 12kw
Power of outer vacuum pump	0.75	1.1	1.5	2.2	2.2	3	4
overall dimension (LxWxH)	2100x 1400x 2500	2460x 1720x 2650	3100x 2100x 2650	3500x 2500x 2650	4600x 1800x 2650	5200x 4500x 3400	6500x 4500x 3400
Weight	2500	3500	4200	5500	6800	7600	9800
