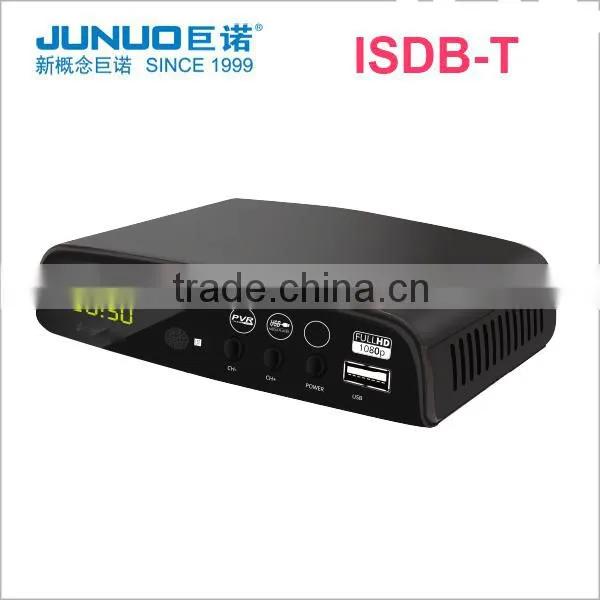

2016 Bestselling high quality sintonizador tv converter box ISDB-T Modulator for Brazil Peru Chile Venezuela
Model Number : ISDB-T300
Support ISDB-T HD MPEG4.R10
Automatic and manual tuning of all available TV and radio channels
HDMI 1.3
subtitle support
Electronic program guide 7 days
teletext
Parental Control
Supports time-shift
Supports USB2.0
PVR function via USB
Multimedia playback via USB
Memory for up to 1000 channels
ISDB-T SET TOP BOX Detail Specification
CPU |
MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz |
|||
Memory |
32X16Mbit DDR2 Frequency1066 |
|||
Flash |
32M bytes |
|||
Demodulator Type |
ISDB SOC Chip Set |
|||
TUNER |
Rafael R836 |
|||

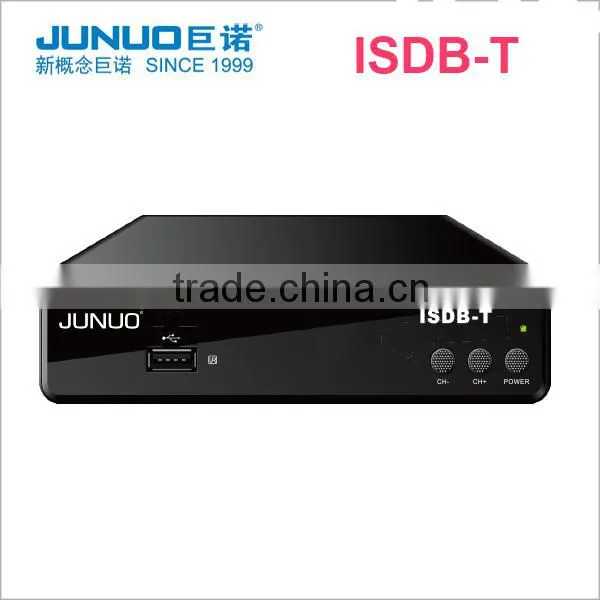

Front Panel |
USB 2.0 Embedded One Host, |
|||
4-digit LED display on front panel | ||||
red LED Standby,green LED Lock | ||||
Panel KEY, POWER, CH+ ,CH- | ||||

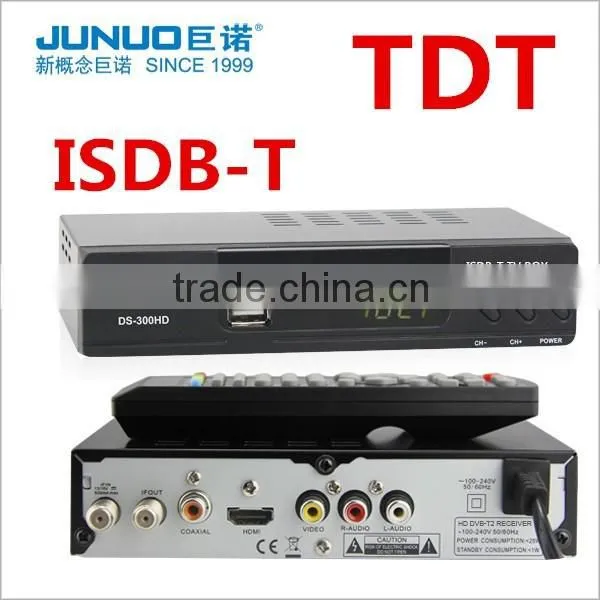

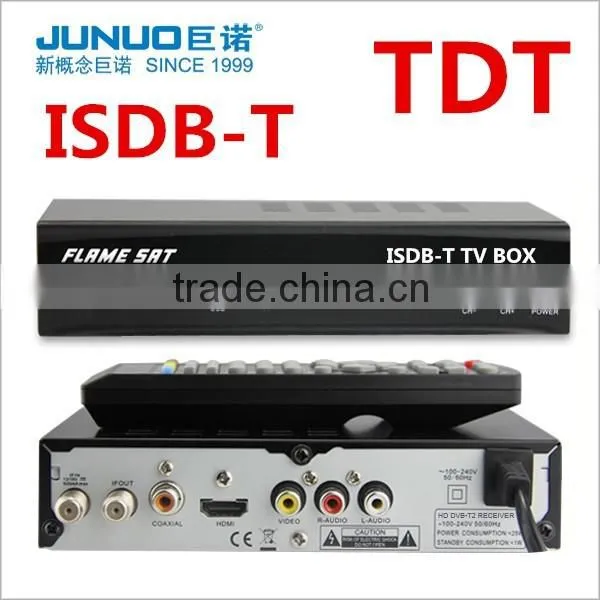

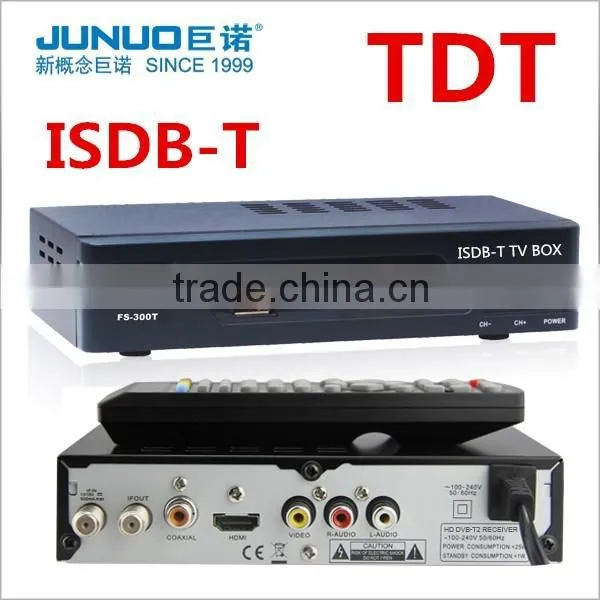

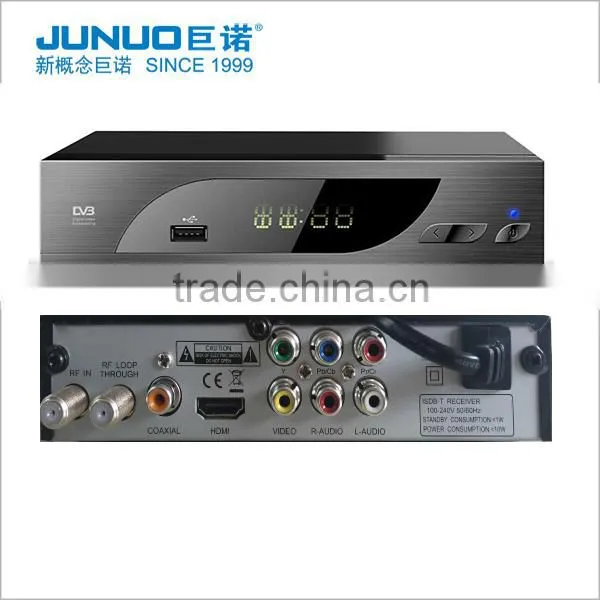

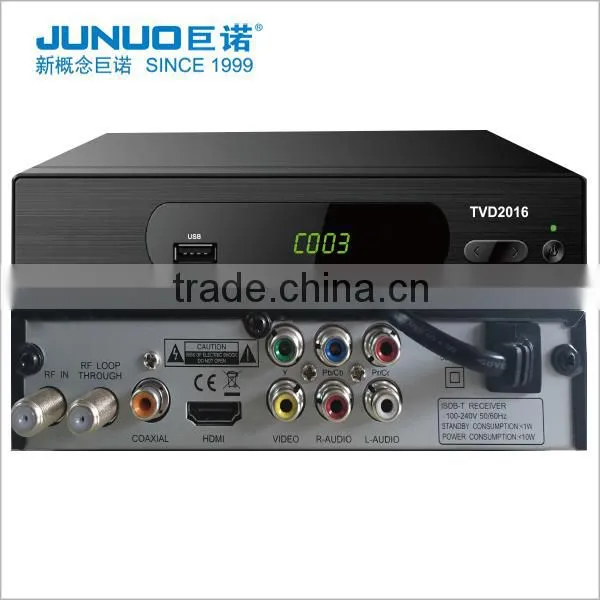

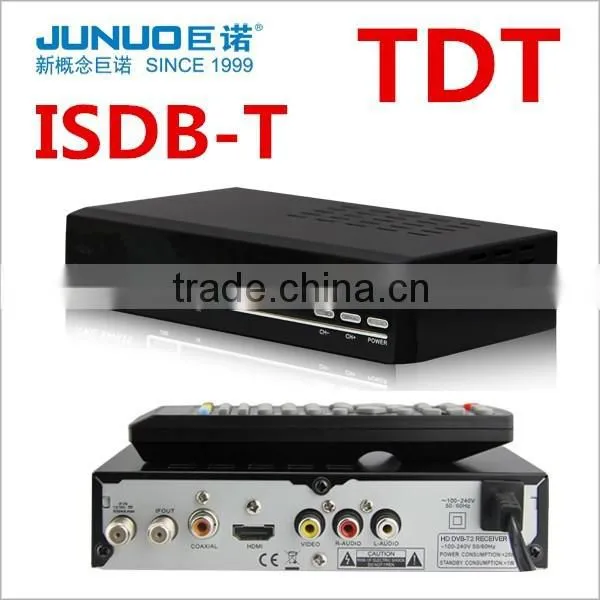

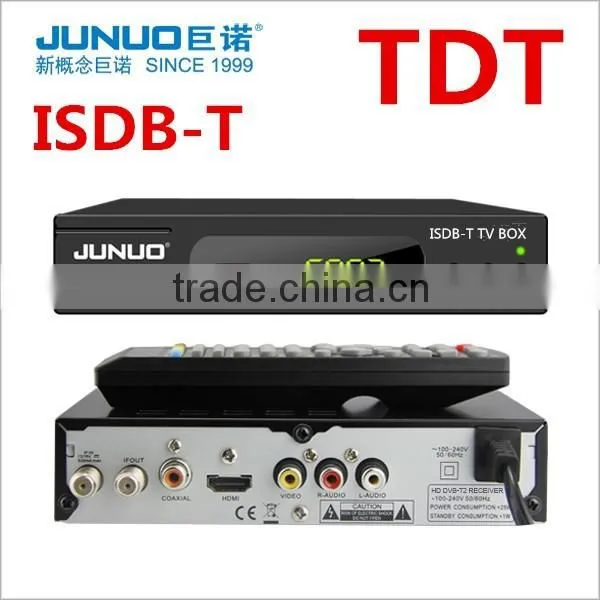

Rear Panel |
Tuner RF input connector |
|
EC-type IEC169-2 Female |
|
Tuner RF Loop through connector |
|
IEC-type IEC169-24 Male |
||
HDMI V1.3/V1.4 | ||||
RCA CVBS AL AR Connector x1 | ||||
Coaxial x1 | ||||
Power AC100~240V 50Hz/60Hz | ||||
Demodulation | ||||
Terrisal Receiver Standard |
ISDB-T broadcast (1, 3, 13 segment) |
|||
Input RF Frequency |
VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. |
|||
Bandwidth |
6MHz |
|
|
|
Demodulatio |
QPSK / 16QAM / 64QAM/QPSK or DQPSK |
|||
FEC |
1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic |
|||
Guard Interval |
1/4,1/8,1/16,1/32 |
|||
FFT Mode |
2K/ 8K/32K |
|||
Input level |
-83 - -5dBm |
|||
Sortware Features | ||||
•used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,Philippines Ecuador | ||||
•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant | ||||
•Support 3D interface | ||||
•Support teletext/subtitle/muti-language | ||||
•Supported 7-Day EPG function, VBI Teletext | ||||
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
Decoder | ||||
Video Decoder |
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 |
|||
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) | ||||
MPEG-2 Main Profile# Main Level(15Mbps) | ||||
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | ||||
Audio Decoder |
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 , AAC-LC, WMA |
|||
E-AC-3,ecoding HE-AAC 5.1 multi-chhannel decoding | ||||
Powerful Multimedia Features | ||||
MediaCodec |
avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc |
|||
Audio Codec |
WMA,MP3,AAC (.wma,.mp3,m4a) |
|||
Photo Codec |
JPEG, BMP, PNG |
|||
Accessories | ||||
Accessories |
gift box |
|||
AV cable | ||||
HDMI cable optional | ||||
IR remote control | ||||
User Manual | ||||
Loading | ||||
Loading |
machine size |
168*100*38mm |
Packaged size |
41*31*33cm |
Pcs/Ctn |
20pcs |
Carton weight |
11kg |
|
Loading for 40GP |
18360pcs |
Loading for 20HQ |
9180pcs |
|
Giftbox. 20 pcs per carton
CTN SIZE:41*31*33cm
CTN CBM:0.0419
G/W:11.51KG
Export standard , safety and environmental packing
Quick lead time for mass production.
Accept EXW, FOB, CIF and other price terms
Sales service time:24 hours for one day, 6 days for one week to supply completely service for your any time.
warranty time:12 months

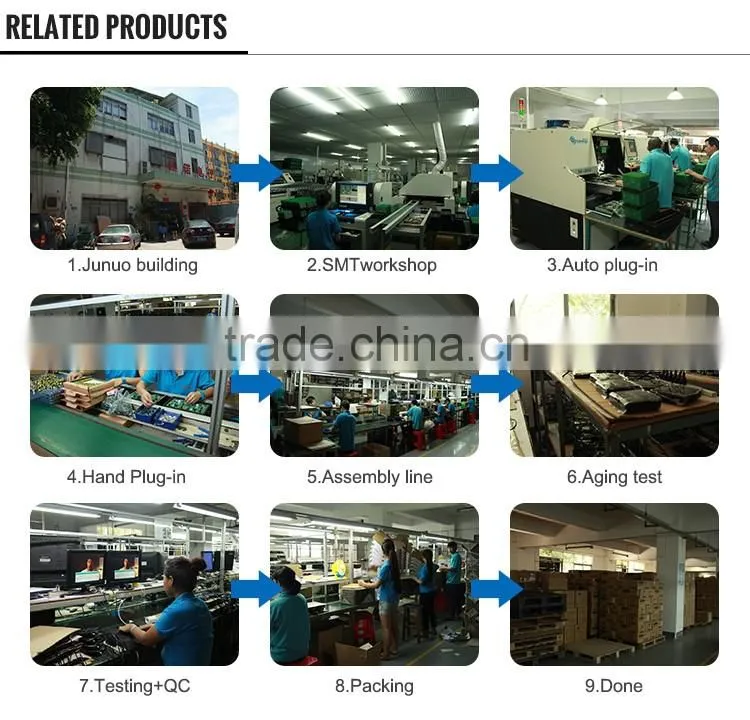

Quality service
100% quality testing for every finished products before delivery;
Professional Aging testing room for aging testing time over 8 hours.
Professional function testing for every process.
One years warranty service for all products

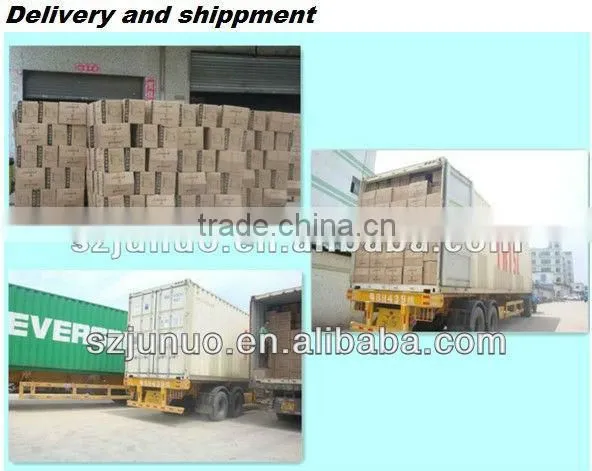

Delivery Service
Export standard , safety and environmental packing
Quick lead time for mass production.
Accept EXW, FOB, CIF and other price terms
Technical Service
Professional Engineering supplies technical supporting
Support OEM, ODM project
Decodificador ISDB-T Ecuador, Brazil,Chile, Uruguay,Paraguay,Venezuela,Peru,Phillipines,Argentina
Welcome to your inquiry any time!!!
