Specifications
1,AVR control
2,IP22, Insulation Class H
3,2/3 pitch winding . 100% copper wire and 100%output .
4,Single or double bearing
Single bearing or double bearing arrangement
Three Phase Brushless AC Alternators
A range of quality dual voltage three phase brushless alternators available in a variety of sizes and prices, so you can find the configuration that works best for your application.
These units provide self excitation and a stable output withthe use of an automatic voltage regulator.
These alternators may be coupled to a prime mover (driving engine) either by a direct shaft to shaft coupling or by conventional belt and pulleys. The AC frequency of the output power is determined solely by the speed of rotation of the prime mover, the alternators must spin at 1500 RPM to generate 50Hz power. They can be driven either clockwise or anti clockwise to suit your application.
Please note that the colour supplied may vary from that shown in the picture.BUT WE CAN MEET YOUR REQUIRMENTS.
Specification:
| 4-Pole Farrand brushless alternator | ||||
| specifications | 3 phase H Class Temperture-rise(125°C) | |||
Rating Power Factor |
0.8/1 |
|||
| Altitude | 1000m | |||
Insulation Class |
H | Excitation System |
Shunt |
|
Lead Number |
12 | A.V.R Model |
SX460/MX321/MX341/SX440/SX440T/AS440 |
|
Winding Pitch |
2 / 3 |
Voltage Regulation |
±1% |
|
Ingress Protection |
IP 22 / 23 |
Transient Voltage Recovery Time(s) |
≤1.0 |
|
Waveform:NEMA-MG1 |
≤50 |
Waveform:IEC-THF |
≤2% |
|
Ambient Temperature |
40° C |
40° C |
40° C |
40° C |
Temperature Rise |
125° C |
150° C |
125° C |
150° C |
Phase / Insulation |
3 Phase / H Class |
3 Phase / H Class |
||
Frequency |
50Hz(1500rpm) |
50Hz(1500rpm) |
||
Voltage ( V ) |
170-454 |
110-240/230-460 |
||
Type |
Capacity |
Capacity |
||
Rated capacity/kva |
Rated power/kw |
Rated capacity/kva |
Rated power/kw |
|
FLD224C16 |
42.5 | 34 | 52.5 | 42 |
FLD224D16 |
50 | 40 | 62.5 | 50 |
FLD224E16 |
62.5 | 50 | 72.5 | 58 |
FLD224F16 |
75 | 60 | 87.5 | 70 |
FLD224G16 |
85 | 68 | 100 | 80 |
Features:
1.Optional permanent magnetic alternator , provide invariable excitation in any situation.
2.Easy to be connected with power network or other alternators. Standard 2/3pitch windings avoid excessive neutral current.
3.Dynamically balanced rotors, with single or two sealed ball bearings.
4.Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptor and single bearing coupling disc.
6.Built to conform to all leading industrial standards.

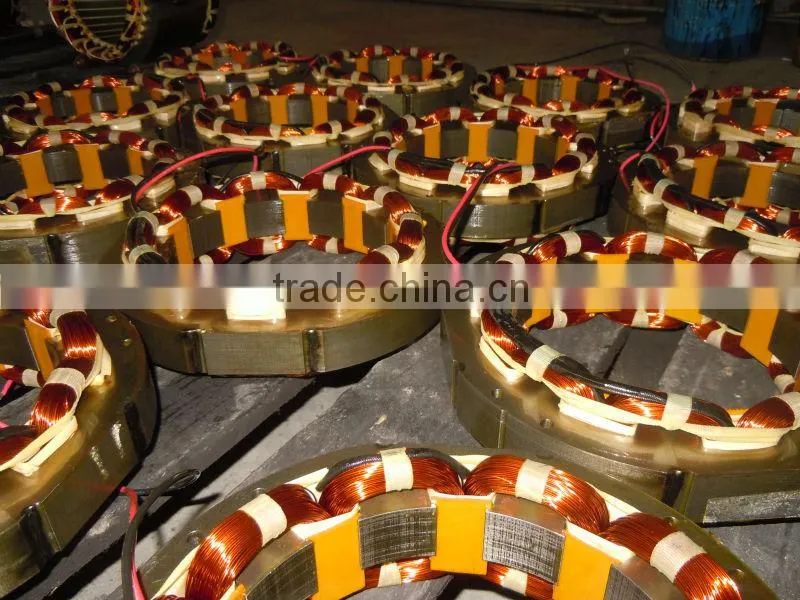

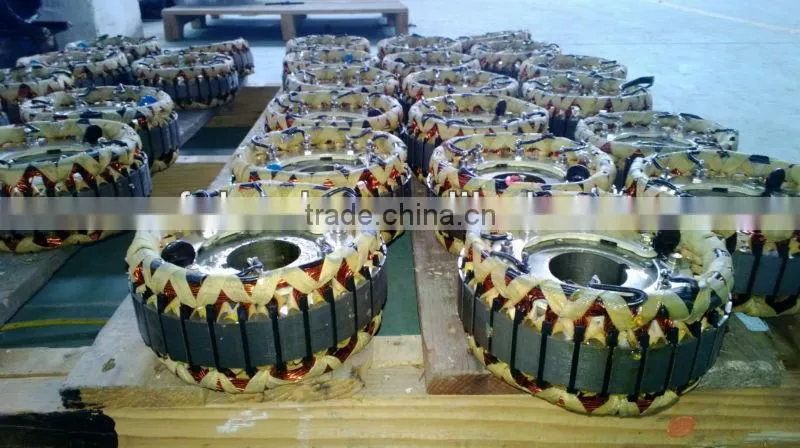

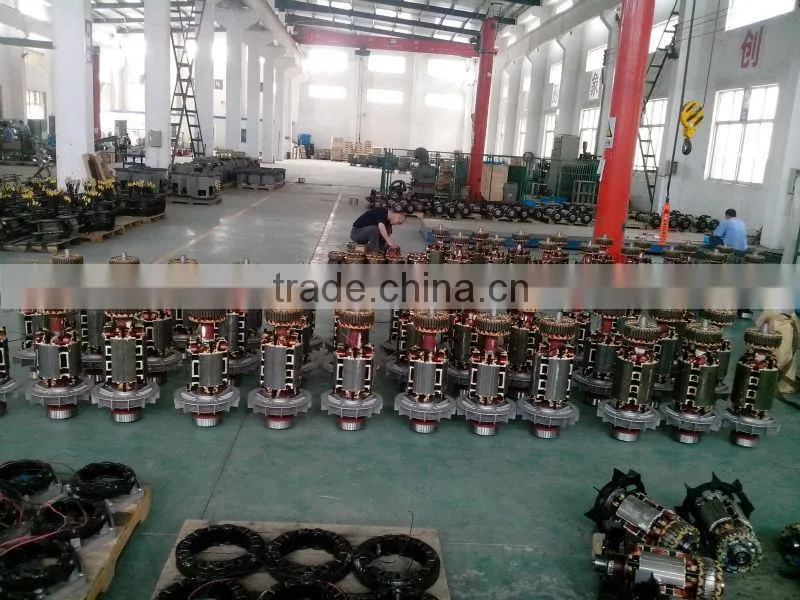

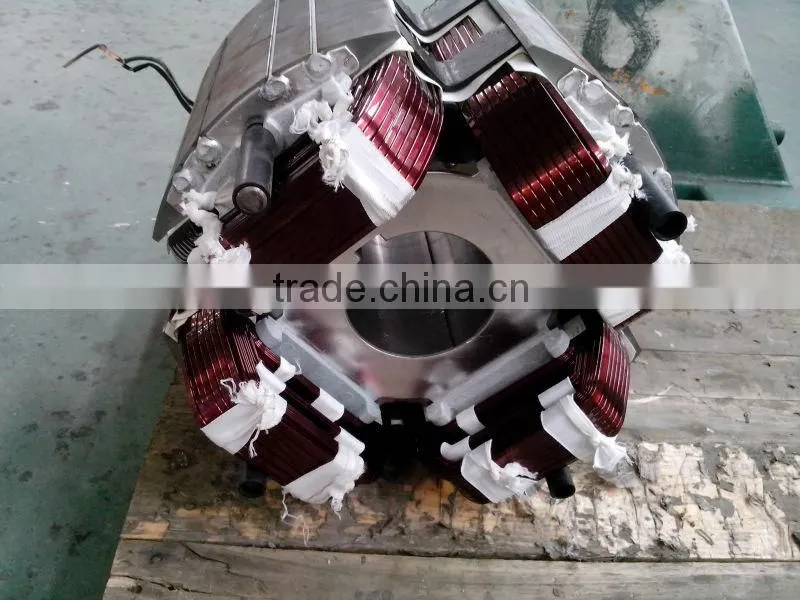

Details of goods:
