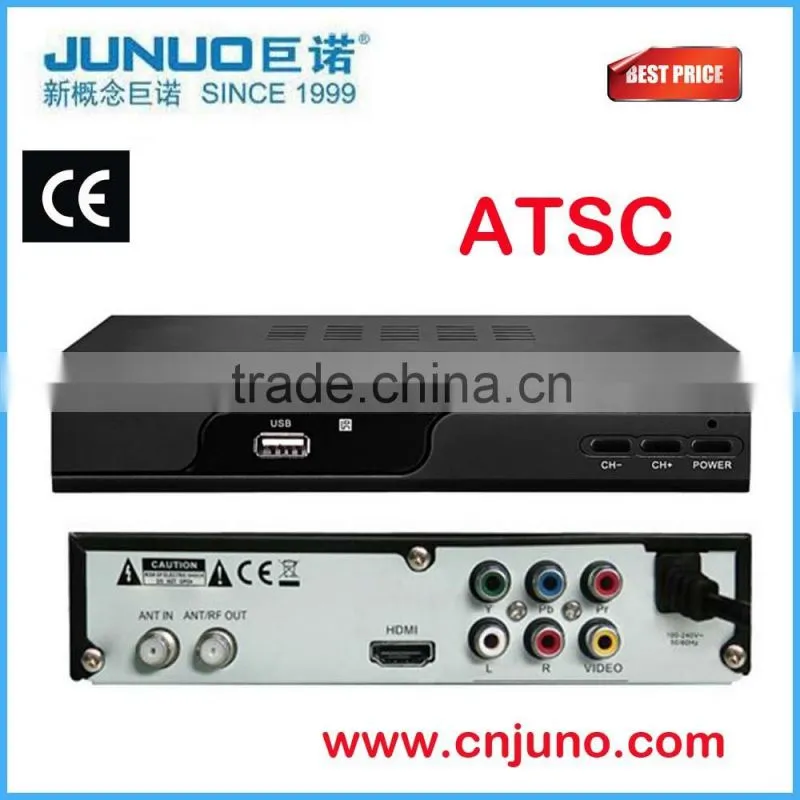

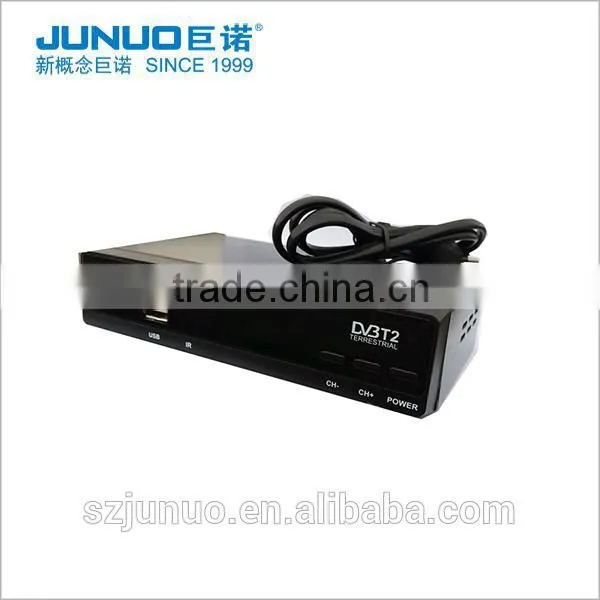

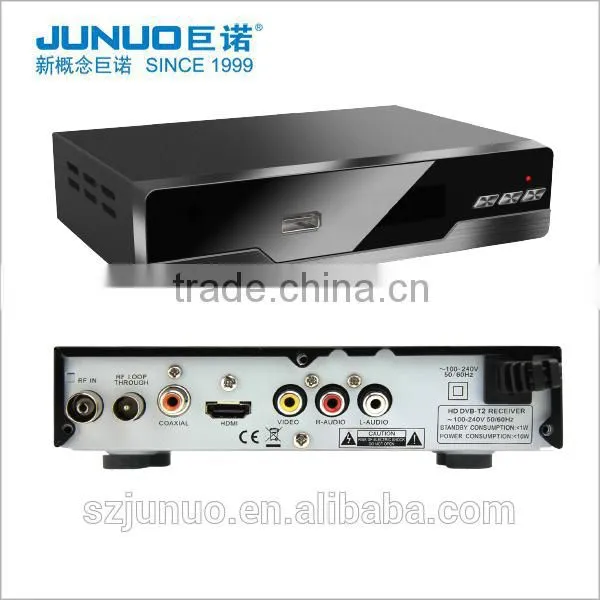

HOT USB TV Tuner DVB-T2 ATSC ISDB-T Digital TV Converter SET TOP BOX

HOT USB TV Tuner  DVB-T2 ATSC ISDB-T Digital TV Converter SET TOP BOX

Features

1.MPEG4 H.264 HD ATSC STB & Media Player & USB PVR & USB2.0 & HDMI
2.Fully ATSC compliant, support full HD 1080p
3.Support SD/HD MPEG2 and MPEG4 AVC H.264
4.Auto and manually scan all available TV and radio channels
5.Aspect ratio 16:9 and 4:3
6.HDMI, Scart/RCA, coaxial output, L/R audio
7.Multi-language subtitle output supported
8.Powerful and highly effective 7-day EPG function
9.Supports teletext
10.Parental lock
11.PVR, timeshift, software upgrade via USB 2.0
12.USB media playback

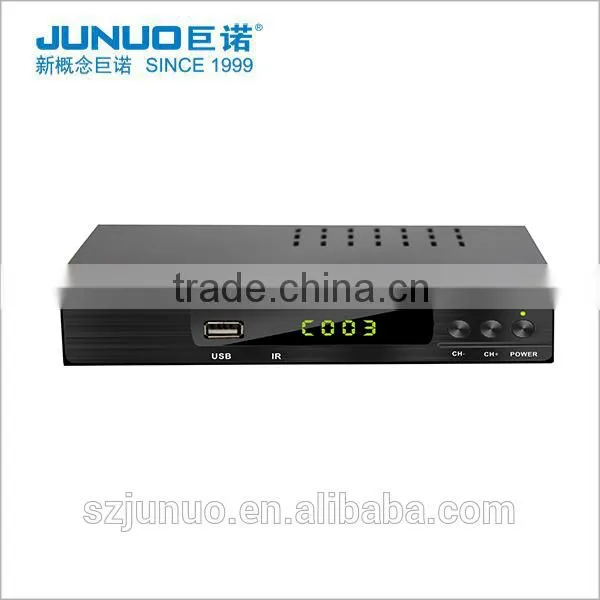

13.Four Digits LED Display

Specification

Fully ATSC compliant for North America with NTIA cert.
Photo: JPEG, BMP, PNG
ATSC Terrestrial broadcast channels 2-69
Audio: WMA, MP3, AAC (.wma, .mp3, .m4a)
HDMI for multimedia play, standard and high definition output
Video: MPEG1, MPEG2, MPEG4, H264
Auto and manually scan all available TV and radio channels
Motion JPEG (.avi,.mpg,.dat,.vob,.div,.mov,.mkv,.mjpeg,.ts,.trp)
Aspect ratio 16:9 and 4:3
JPEG/Audio combo playback
HDMI, Coaxial, YPbPr/YUV, RCA output
Multi-language OSD & Subtitles (English/French/Spanish)
Support EPG, display Present/Next TV program
Demodulation:
EIA 608 Closed Caption
ATSC NTIA Standard, 8VSB
Parental control (V-Chip)
QPSK, 64QAM, 256QAM
PVR ready function via USB 2.0,Timeshift function
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
NTSC Loop Through supported
Guard Interval: 1/4,1/8,1/16,1/32,1/128
Universal remote control
FFT Mode: 2K, 8K, 32K
Tuner
Demultiplexer
ATSC Terrestrial tuner
Standard ISO/IEC 13818-1; ARIB STB-B10
RF input frequency: 54-803MHz
Input max. bit stream rate: 36Mbps (serial)
Bandwith: 6MHz/ 9Mbps (parallel)
Input level: -83 - -5dBm
RF 3/4CH and loop through functionDecoding
Hardware Interface
MPEG transport stream and A/V decoding
Front Panel
Video decoder: ATSC A/72 MPEG2/4 H.264 SD&HD
Indicators
Aspect ratio: 4:3, 16:9
IR Receiver
MP@HL HDTV, MP@ML SDTV
USB: Firmware upgrade, PVR & Multimedia playback
ATSC formats
LED display (Option)
Video resolution: 720X480 NTSC/HDMI 1080P
Audio standard: ISO/IEC 14.496-3

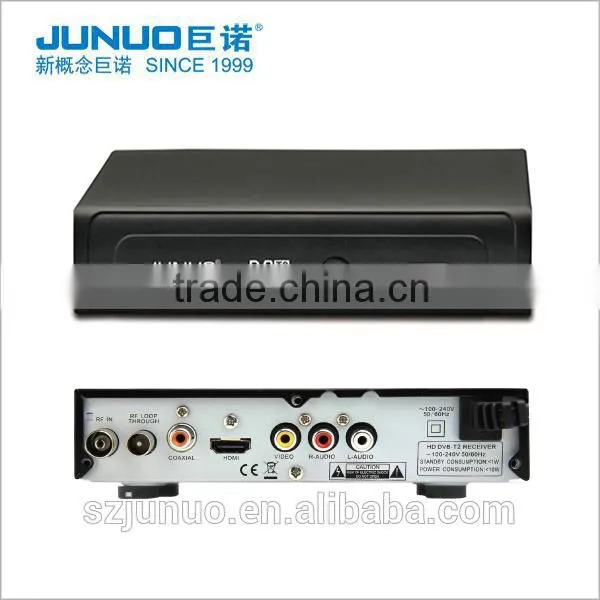

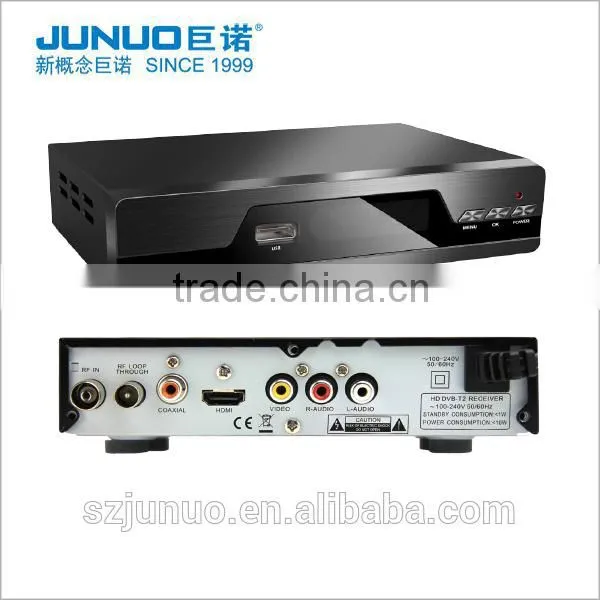

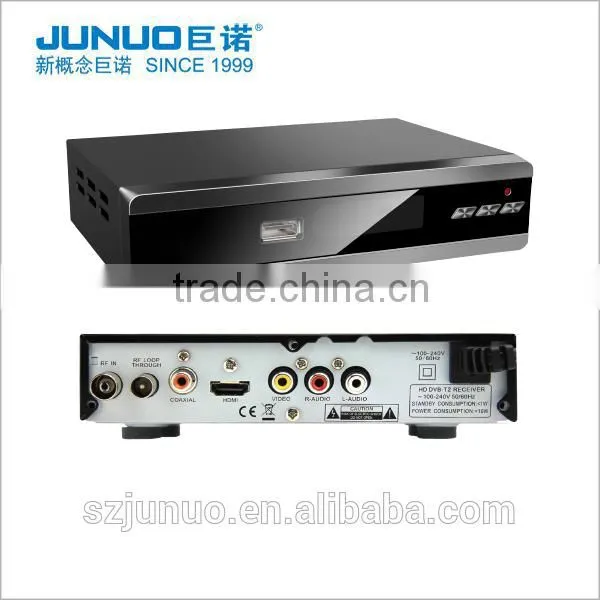

Rear Panel
Audio mode: mono, dual-channel, stereo
HDMI 1.3: 576i, 576p, 720p and 1080i,1080P
Loop through output: IEC-type, connector, single tuner Coaxial digital audio output: RCAx1
YPbPr: RCAx3
L/R output: RCA x2
CVBS
