SMA wide flange .062" End Launch PCB Mount SMA female RF connector1RoHS Compliant
2Brand New
3End-launch terminal connector
SMA wide flange .062" End Launch PCB Mount SMA female RF connector
SMA connectors usually female, are available as end-launch terminal connector for pcb. An interesting and unusual application is to use them on experimental boards or on laboratory prototypes, for example, for a quick test of how a certain filter behaves, or the response of a MMIC amplifier, etc.. all this without having to build a complex circuit board. The main advantage for this particular application is that they can be lined up horizontally, greatly easing the connection of cables attached to the network analyzer
1 Mechanical Specification:
| Category | Connectors, Interconnects |
| Family | Coaxial, RF Connector |
| Product Type: | End Launch PCB Mount .062''(1.57mm) |
| Gender: | Jack |
| Connector Body Style: | Straight |
| Connector Material: | Brass |
| Body Plating: | Goldplated |
| Contact Plating: | Goldplated |
| Impedance: | 50 Ohm |
| Insulator | PTFE |
| Operating Temperature | -65~ +165 Degree C |
| Durability | more than 500 cycles |
| RoHS Compliant | Yes |
2 Electrical Sepcification
| Frequency Range |
Flexible cable DC-12.4GHz Semi-rigid cable (0-18GHz) |
| Working Volttage | 335V max |
| Withstand Voltage | 1000V rms |
| Insertion Loss | more than 0.15 dB 6GHz |
| Resistance | 50 ohm |
| VSWR |
less than 1.1:1 less than 1.05:1 |
3 APPLECABLE STANDARD :
MIL-C-39012
CECC 22110
CECC 22210
IEC 60169-15
IEC 60169-24

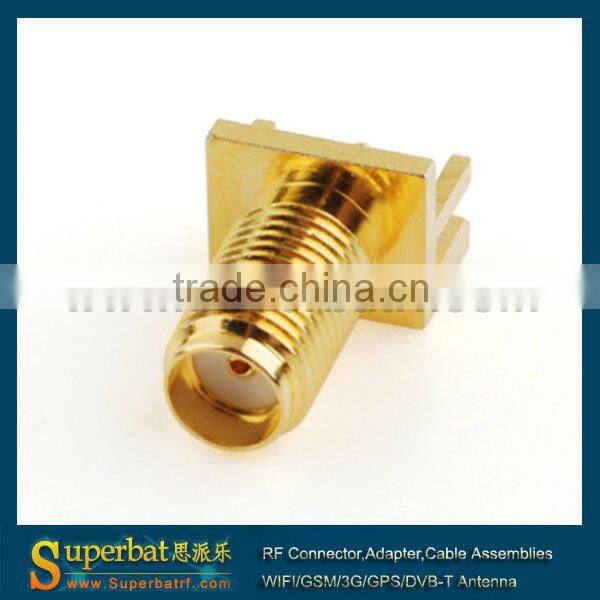

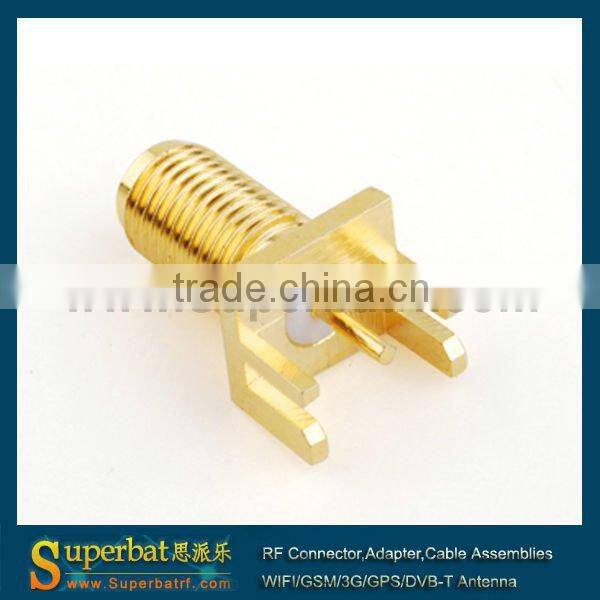

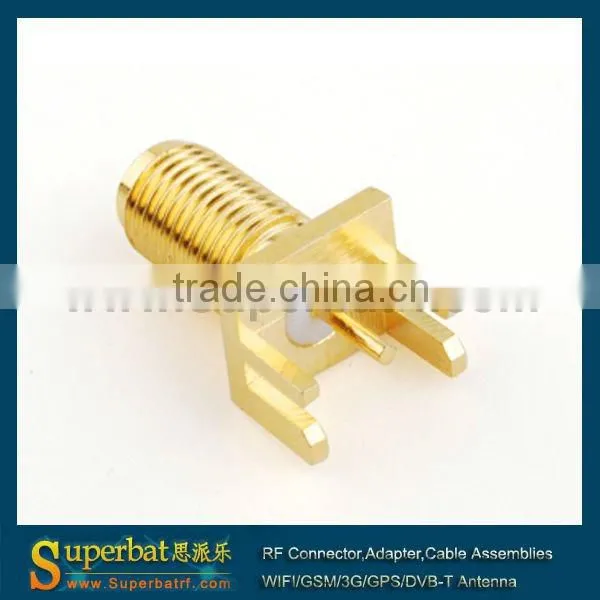

4 The details photos showed:
Package includes:
1 pcs Wide flange .062" medium version SMA FEMALE PCB MOUNT RF CONNECTOR
