Specifications
1.fakra jack connector2.Gender:jack
3.Style:straight
4.impendance:50 ohm

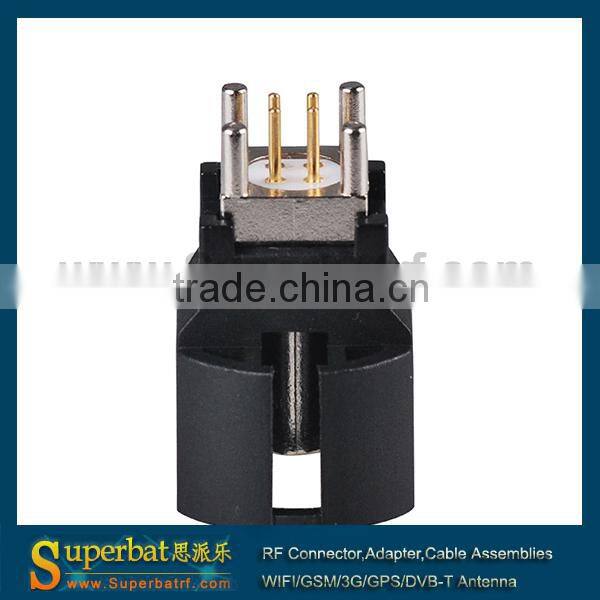

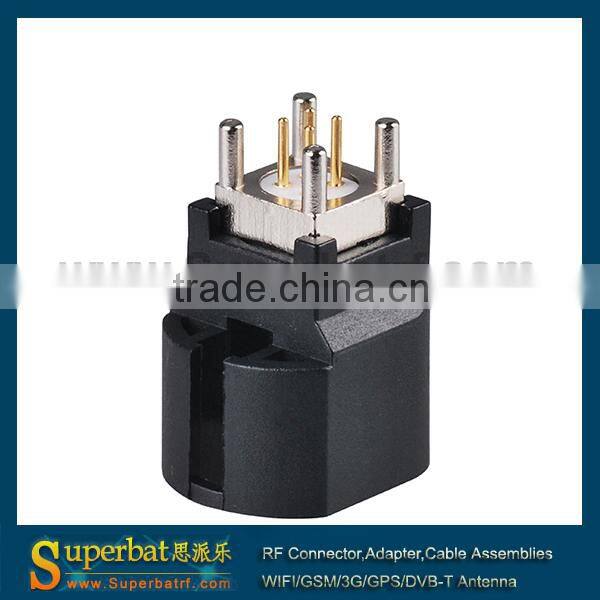

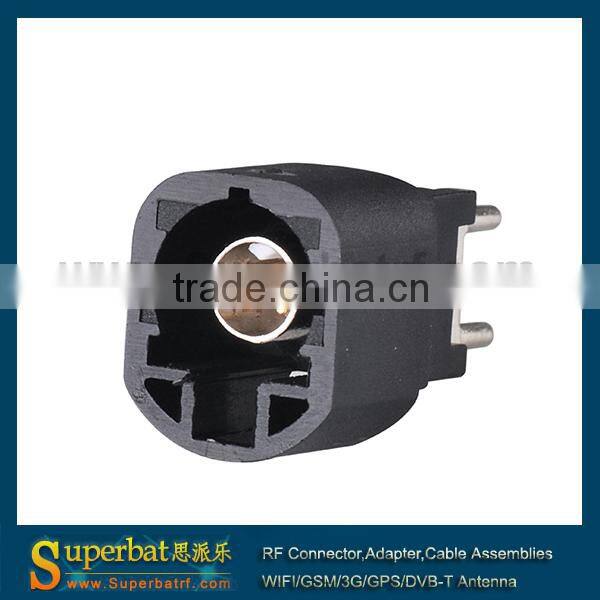

For Tesla Fakra Jack PCB mount 4Contact pin Connector insulation piercing connector
Model: F03-SJPT4-A
The high speed data (HSD) connector is normally used for the high speed data (HSD) connector system which is focused on various motor vehicle application areas such as the inside compartment for connections to displays, head units, cluster displays and rear seat infotainment modules
Specification :
Materials :
- Body : PA66
- Terminal :Brass ,Au Plated / Gold-plated
- Base die castings:zinc
Mechanical:
- Insertion force : ≤ 30N
- Withdrawal force : ≥ 5N
- Locking force: ≥ 100N
- Durability :> 25 times
Electrical:
- Frequency : 0-6Ghz
- Impedance : 100Ω
- Insulation resistance: 1000MΩ Min , After swapping 500MΩ Min
- Contact resistance: 15MΩ Max, After swapping 40MΩ Max
- Withstand Voltage :250V AC
- Working Voltage: 100V DC
- Working Current: ≤ 1.5A DC
Environment:
- High Temperature: 240°C
- Working temperature : -40 °C -85 °C
Application:
- Camera
- Display
- Consumer Ports
- Reverse image
- The central display
- Rear entertainment system
- Digital dashboards.
Features:
- It is compatible to USCAR requirements
- Suitable for sealed applications
- HSD product can be used in combination with a variety of protocols:
- 1 & 4 Channel Low Voltage Differential Signaling (LVDS)
- Gigabit Video Interface (GVIF)
- USB
- IEEE 1394
- Ethernet protocols
