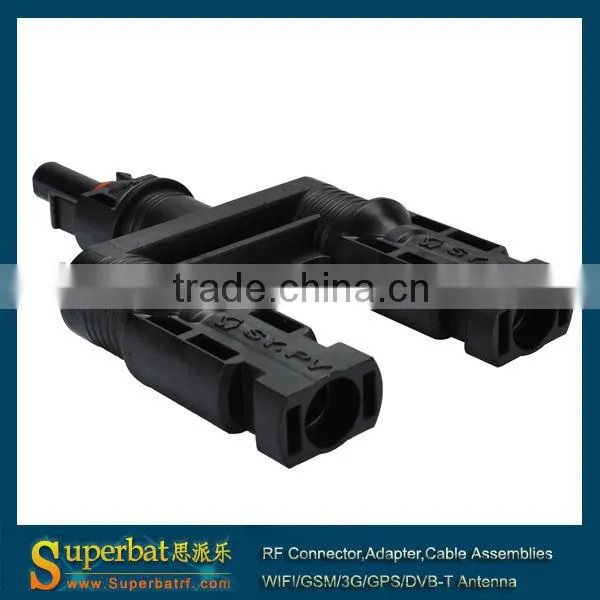

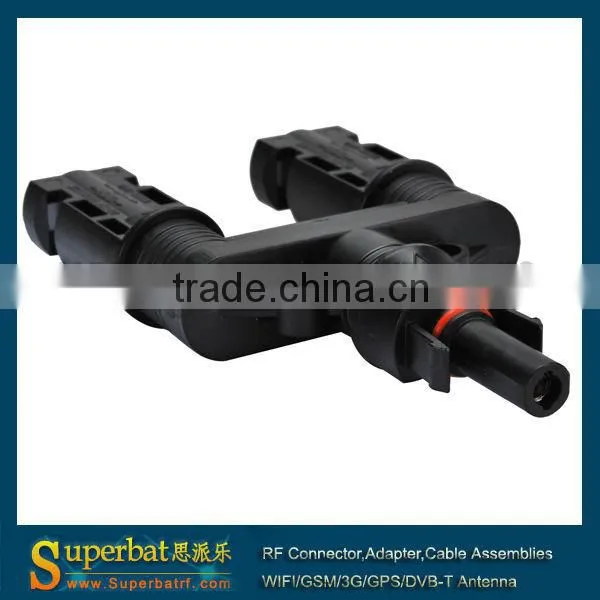

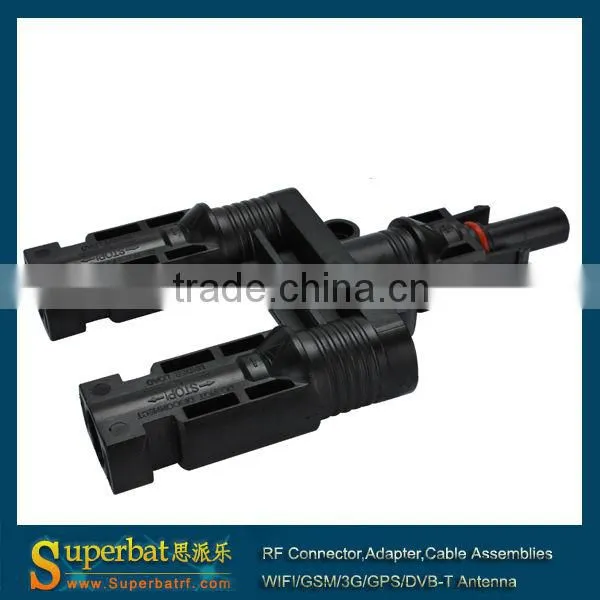

MC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY

MC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY thumbnail-1
MC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY photo-1
US$ 5.68 - 7.02 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
superbatrf
Model Number:
MC4-JJK-2327
Contact Supplier Request Quote Chat Now
Shenzhen Superbat Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name superbatrf
Model Number MC4-JJK-2327
Type Other, MC4

Specifications

1.TBRANCH ADAPTOR
2.MC4 TBranch Adapter ONE Female to TWO Male
3.Contact Material: Copper,Tin plated,PPO
4.hight quality



MC4 T BRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY #z

Model: MC4-JJK-2327





Description



Rated Voltage : TUV 1000V DC/ UL600V DC
Rated current : 20A-30A
Suitable cable cross section : 2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWG
Pin dimension : Ø4.0mm
Proof voltage : TUV 6000V AC(1 MIN)/ UL 2200V DC (1MIN)
Polution degree : 2
Protection class : Class 2
Contact Material : Copper, Tin plated,PPO
Contact Resistance : ≤ 5mΩ
Degree of protection : IP 67
Withdrawal Force : ≥ 50N
Insertion force : ≤ 50N
Temprature range : -40 C~+85 C
Flame class : UL94V-0



Package included:



1pcs MC4 T Branch Adapter ONE Female to TWO Male



Note:It is not one Set ,if you also need the MC4 T Branch Adapter ONE Male to TWO Female ,please click the Model:MC4-JKK-2328



 MC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIYMC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIYMC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY









============================Thanks for your attention==========================





MC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIYMC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIYMC4 TBRANCH ADAPTOR 30A TUV SOLAR PANEL Connector PV-1F2M DIY
