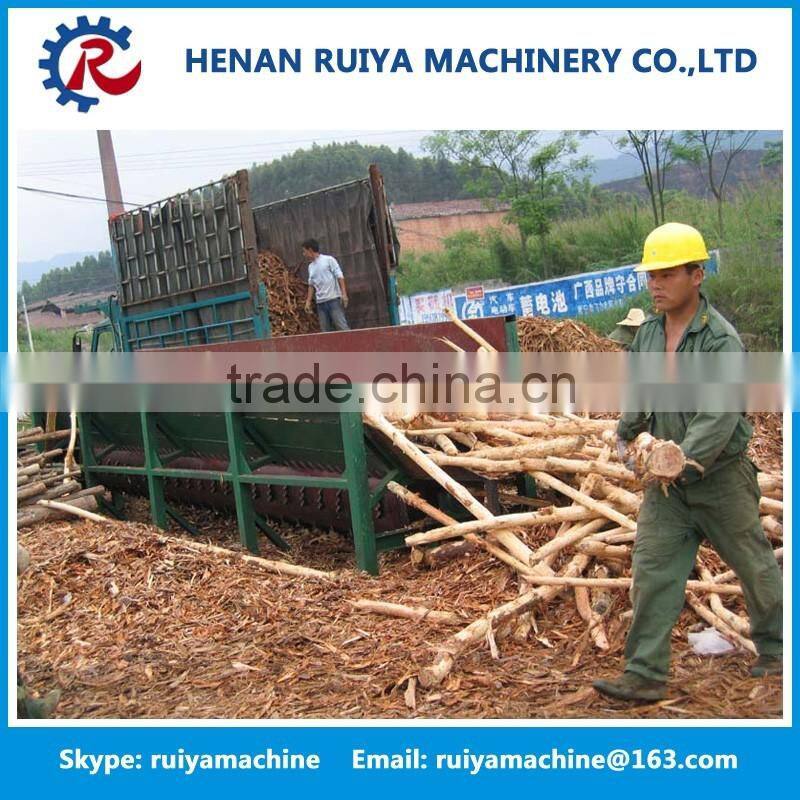

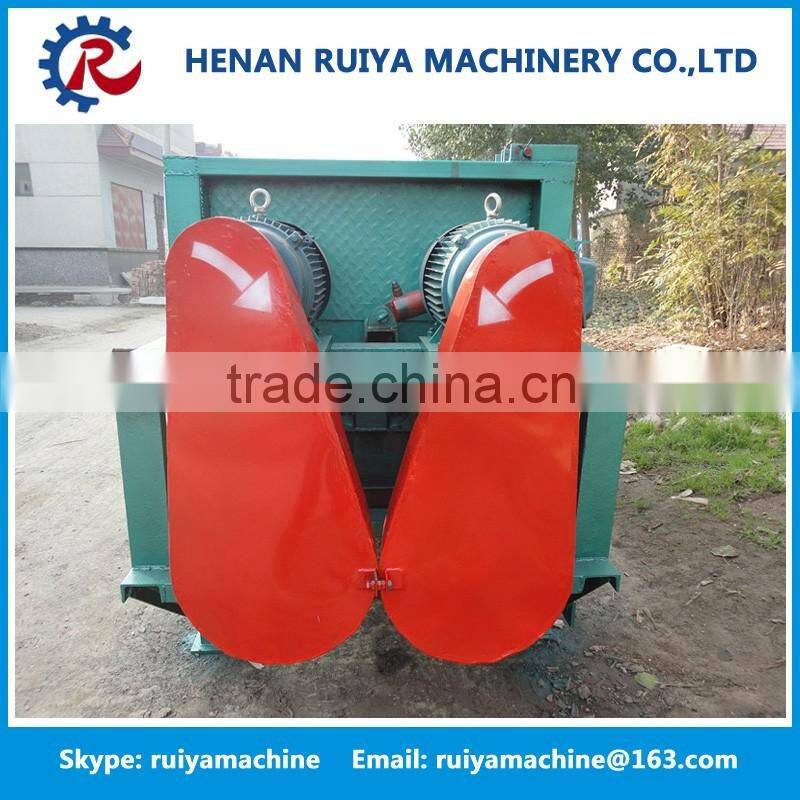

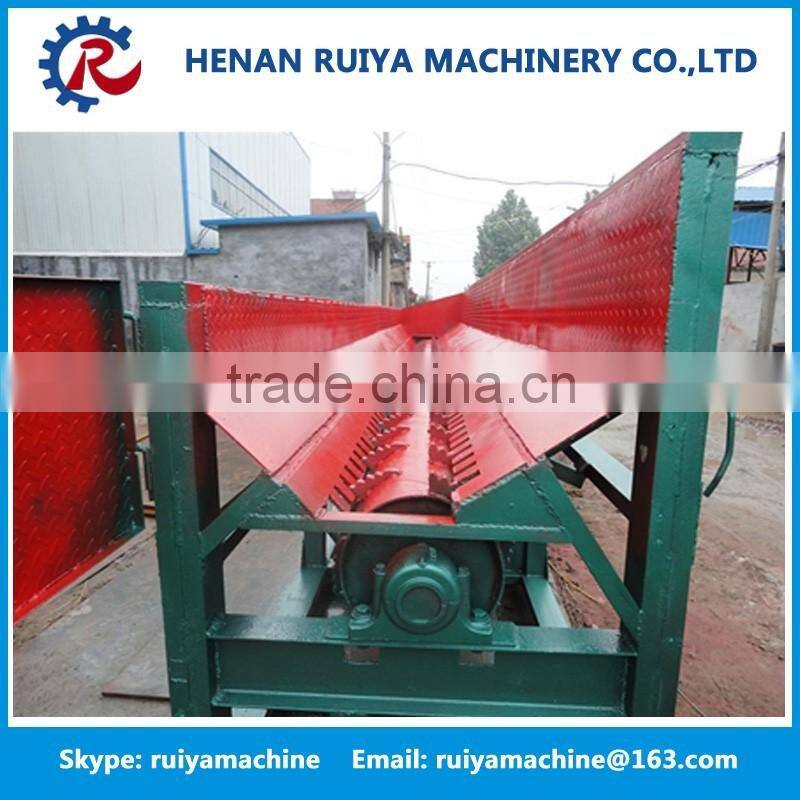

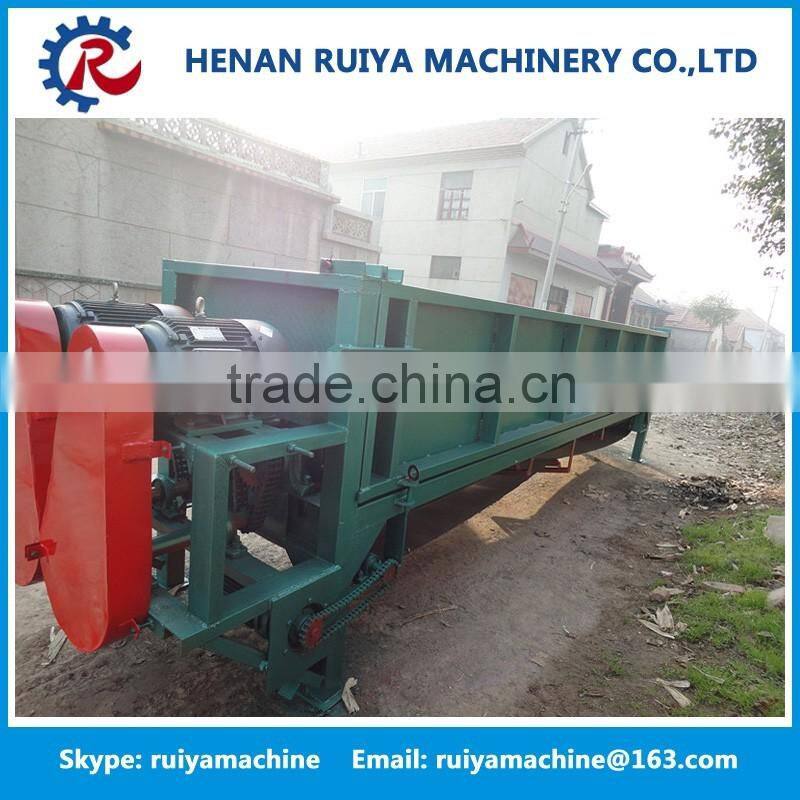

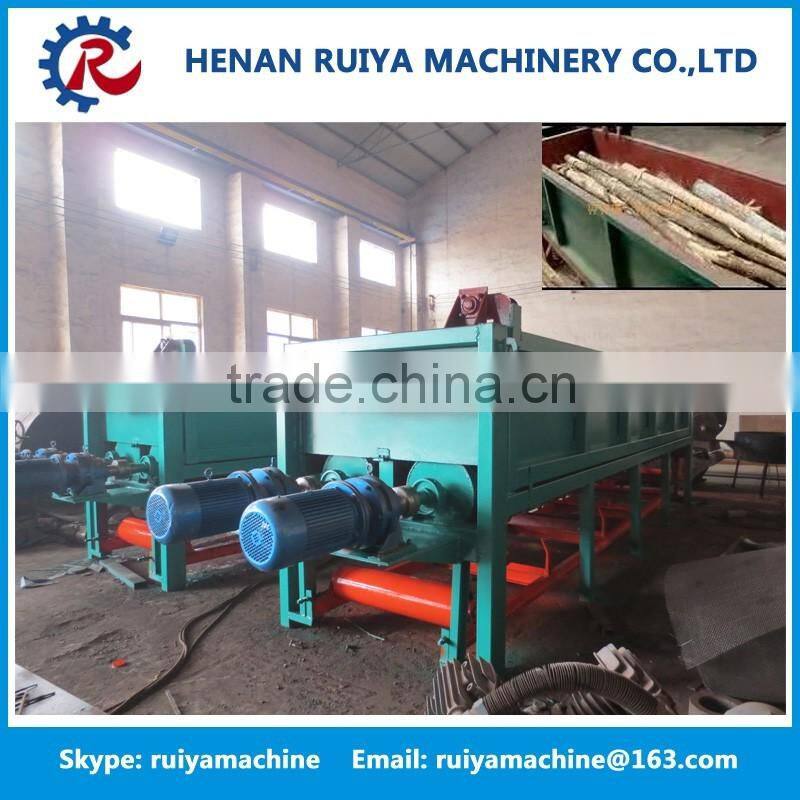

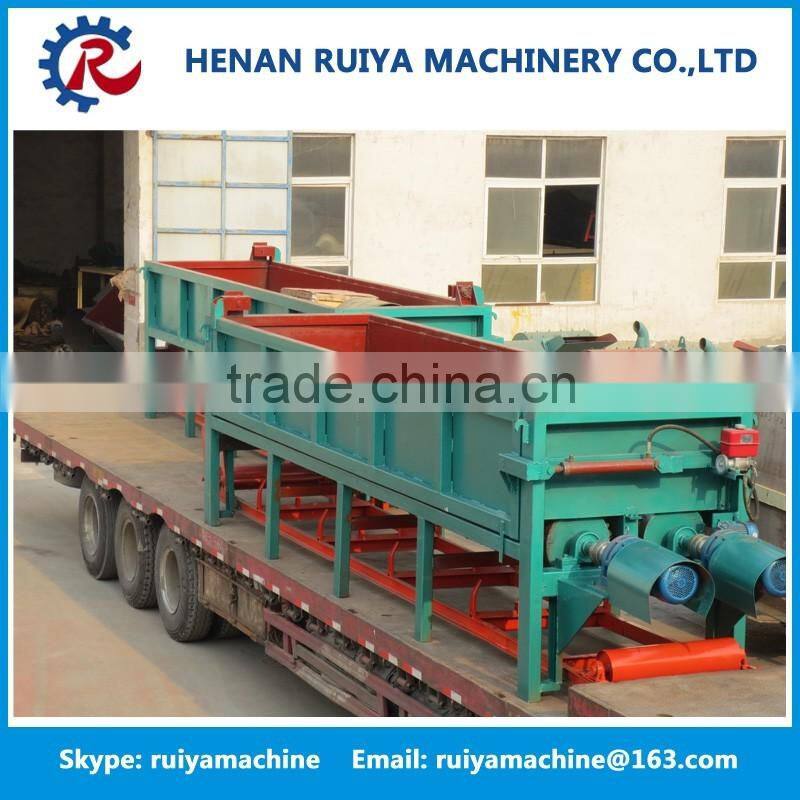

wood log debarker/log debarking machine
Contact:Ms. Annie
Skype:ruiyamachine
Mob/Wechat/Whatsapp:0086-18037159859
General introduction of slot type wood debarker machine:
a. Wood debarker machine use open silo, from one side feeds materials, from the other side discharge. The assembly line operation to overcome the existing peeling machine feed, discharge, storage shortcomings and with high efficiency.
b. Due to the impact of gear teeth on wood, the wood logs in the bin for circulating movement, so stripping efficiency is high. The peeling rate could reach 95%.
Wood debarker/Barking/peeler machine is suitable for large,medium and small paper mills, pulp mill, wood factory, wood processing plant, forestry factory, timber yard, artificial board factory (such as plywood plant, medium density fiberboard factory etc.).
Operation of slot type wood debarker machine:
a. Put the log and tree branches into the rotary drum,close the feeding baffle,then start the machine,with clockwise operation,the cutter will strip wood skin.
b. Fifteen minutes later,stop the machine,open discharging baffle, then start the machine and counterclockwise run two minutes,the peeled wood can be automatically sent out by roller.
Main parameters of slot type wood debarker machine:
Model |
RY-SWD-1 |
RY-SWD-2 |
RY-SWD-3 |
|
Motor |
11kw /22HP Diesel |
15kw / 38 Diesel |
22kw / 55 HP Diesel |
|
Capacity |
8-9t/h |
10-12t/h |
12-15t/h |
|
Debarking rate |
>95% |
>95% |
>95% |
|
Suitable length of wood |
6m |
8.3 m |
9m |
|
Suitable wood diameter |
20-500mm |
20-600mm |
20-700mm |
|
Machine weight |
3.8T |
5.2 T |
6.5T |
|
Machine size |
8000*1400*1700mm |
9300*1400*1700mm |
11*1.6*2m |
|
Worker needed |
1-2 persons |
1-2 persons |
1-2 persons |
|
Belt size |
Length |
16m |
18m |
22m |
Width |
600mm |
600mm |
600mm |
|
Our company will provide you good after services.We can help you solve the problem through video, email, phone.If needed, we can also let our engineer go to your country to solve the problem.
We hope all the customer will satisfied with our machine and services,also wish our cooperation could help you open more market and achieve win-win.
In short :
1. Accept the custom made
2. Highly pay attention to the after sell service and setting global engineer team.
3. Quality product and honest business is our principle
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
If you are interested in this equipment, plz feel free to contact Ms. Annie.
