Specifications
5.8G Base station High-Gain MIMO Panel Antenna Directional1.Freq:5150-5850MHz
2.Gain:3*16dBi
3.Antenna Size:395*370*35mm

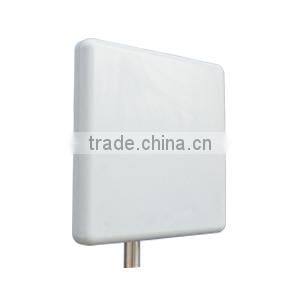

5.8G Base station High-Gain MIMO Panel Antenna Directional
Applications:
4.9/5.1/5.5/5.8GHz Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features:
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
With customer mounting plate
Electrical Specifications | |
Model | AC-D4958W16X3-90V3 |
Frequency Range | 4900-5850MHz |
Gain | 3×16dBi |
VSWR | <1.5Type; Max2.0 |
Polarization | 3×V |
Horizontal Beam Width | 90° |
Vertical Beam Width | 7° |
F/B Ratio | >20dB |
Impedance | 50ohm |
Maximum Input Power | 100W |
Connector | N×3 female |
Operating Temperature | -40°C to+60°C |
Mechanical Specifications | |
Antenna Dimension | 395×370×35mm |
Weight | 2Kg |
Mounting Mast Diameter | Ø30~Ø50mm |
Rated Wind Velocity | 241Km/h |
