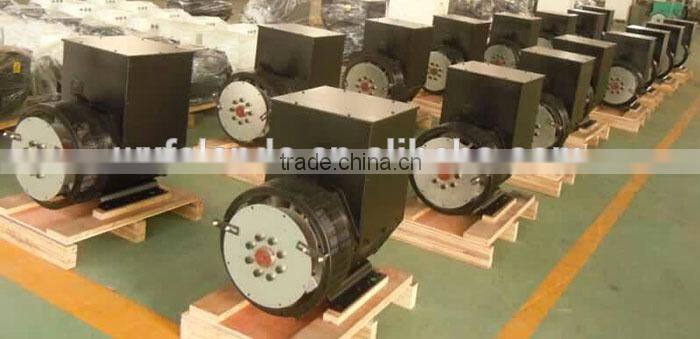

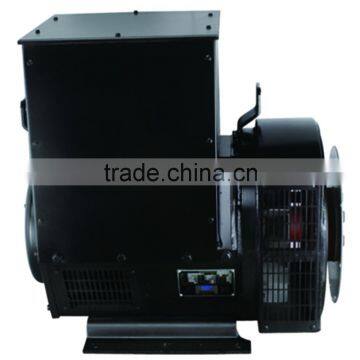

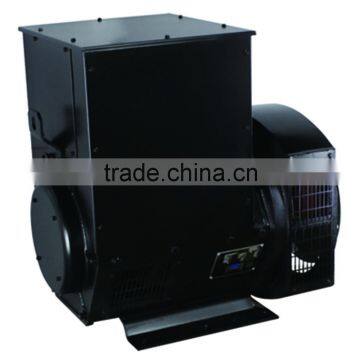

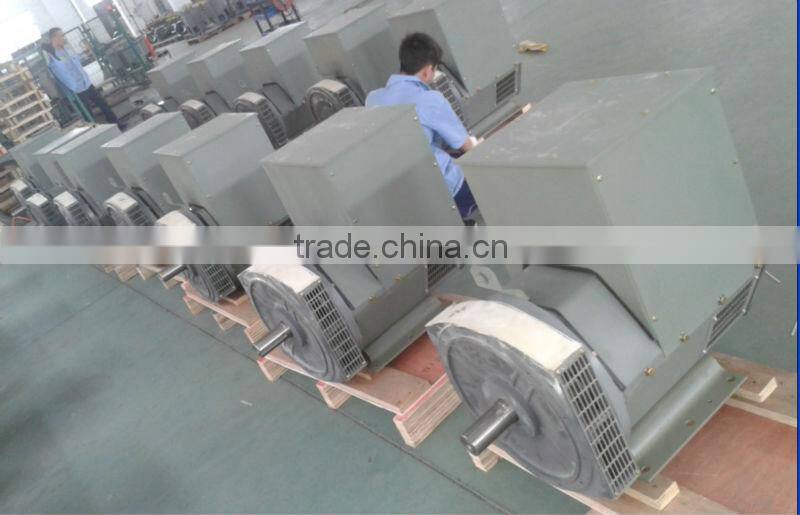

125kw ac brushless industrial alternator
1. +- 1.0 % Voltage regulation (max.) in static conditions
2. IP: 22 protection with insulation class H
3. Permissible overload of 10% for one hour in 12 hours of operation.
The alternator/generators have been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000M above sea level.
Arranges in order all voltages may obtain from the single wide winding ,also namely(three -phase) and 4(single -phase) reorganizes through 12 terminals may obtain.
Other special voltage can be met by Farrand company.
Alternator Model |
FLD274DL |
Power |
125kw |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Frequency |
60Hz |
Speed |
1800RPM |
Characters |
Single or double bearing, 4poles |
With AVR voltage regulation |
0.5%~+/-1%. |
THF/TIF |
THF<2%, TIF<50 |
Insulation Grade |
H |
Protection Grade |
IP22 |
AVR |
SX440 Standard |
|
FLD Type Stamford |
3 phase 50hz1500rpm |
3 phase 60hz1800rpm |
1 phase 50hz |
1 phase 60hz |
Packing Size | N.W | G.W | ||
| 110 ~ 690v | 110~690v | 110~240v | 110~240v |
Plywood packing |
|||||
| KVA | KW | KVA | KW | KVA | KVA | mm | kg | kg | |
| FLD274C | 100 | 80 | 125 | 100 | 66 | 90 | 850*650*990 | 385 | 415 |
| FLD274D | 114 | 91 | 138 | 110 | 74 | 100 | 850*650*990 | 405 | 435 |
| FLD274DL | 125 | 100 | 156 | 125 | - | - | 850*650*990 | 420 | 430 |
| FLD274E | 140 | 112 | 168 | 134 | 94 | 115 | 950*650*990 | 455 | 485 |
| FLD27FS | 150 | 120 | 187.5 | 150 | - | - | 950*650*990 | 455 | 485 |
| FLD274F | 160 | 128 | 190 | 152 | 110 | 135 | 950*650*990 | 500 | 530 |
| FLD274G | 175 | 144 | 213 | 170 | 120 | 150 | 1050*650*990 | 550 | 580 |
| FLD274H | 200 | 160 | 245 | 196 | 140 | 156.3 | 1050*650*990 | 600 | 630 |
The advantage of our material:
· The rotors and stators with 100% copper wire.
· The enamelled wire is Essex by America.
· The silicon steel sheet we use is the products of Wugang Brand,800 Series.which is the most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.
· The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
· All the components of our factory,the stator,rotor and excitation will be dipping lacquer twice.
· The rope of best nylon to be used in all the rotors and stators.We promise the security of our products,the phenomenon of ribbon burst will never happen.
· The TWB bearings are useing in our products.
· All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products should be tested by specialized Test Room.
Option Features:
l Adapters and drive disks
l three phase
l Remote voltage adjust
l IP22 enclosed
l Space heaters
Certificates
PAYMENT TERM AND DELIVERY TERMS
payment term:T/T or L/C,30%deposit,70%balance before goods delivery
Best quality Best service with Competitive price
Start your internet business with us here
The best power support for your life
♥ Guarantee/Warranty And After-sale Service
♣ one year guarantee for whole machine except of tube and lens
♣ 24 hours technical support by e-mail
♣ use-friendly English software,user manual and instruction
The alternator has silent fetures,outstanding performance, reliable quality, and convenient maintenance. Using steel or flexible material, it can be easy connected with the engine as a gensets to use in factories, buildings,rail way,home use and marine use.
Farrand series brushless alternator are compatible with Stamford alternator, but offer the most competitive/ affordable price.
