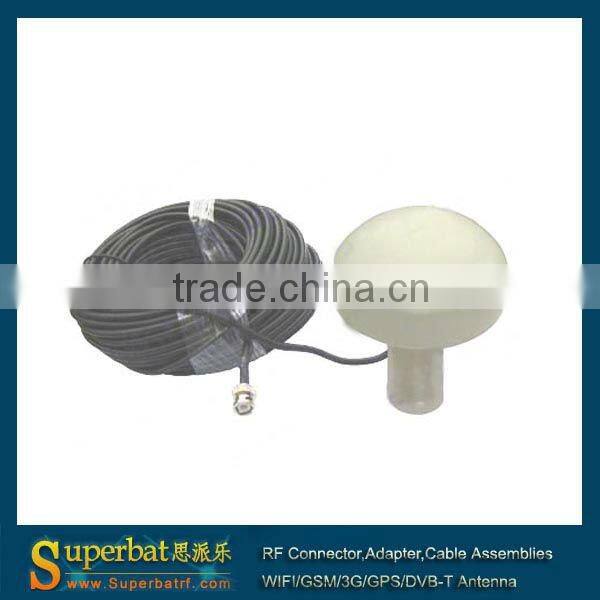

New Gps Receiver Timing Antenna 5 Meter BNC Plug Gps Receiver Module

FOB Price

US$ 0.73 - 0.89 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	superbatrf
Model Number	GA14-500-B01SP

1.gps receiver module
2.Connector type:BNC
3.Connector Style:straight
4.Product Type:GPS
5.Cable Type:SYV50-3

New GPS timing antenna 5 meter BNC Plug # C01

Model: GA14-500-B01SP

Description:

Dielectric antenna specification
Center frequency	1575.42mhz+/-2 MHZ
V. S. W. R	1.5:1
Band width	Band width
Attenuation fo	+/-100mhz>30db
Impendence	50 ohm
Peak gain	>3dbic based on 7*7cm ground plane
Gain coverage	>-4dbic at -90<0<+90(over 75% volume)
Polarization	rhcp
Lna specification
Lna gain(without cable)	28dB,35dB,45dBtypical
Noise figure	1.5db
Dc voltage	3-5V
Dc current	13ma max
Mechanical specification
Weight	< 400g
Cable	SYV50-3
Cable Length	5 meter ,(Optional 10meter ,contact us firstly)
Connector	SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting base	Screw
Environmental specification
Working temp	-40~+85
Storage temp	-40~+100
Vibration sine sweep	1g(0-p)10~50~10hz each axis
Humidity	95%~100%rh
Weatherproof	100%

Easy-Using & Cheap! Don't Hesitate~! Just take it~!
