800-2500MHz GSM/GPRS/EDGE/UMTS/HSPA/CDMA/3G Ceiling Antenna 3dBi 2.4 Ghz Wifi Grid Antenna

Specifications

Product Description:

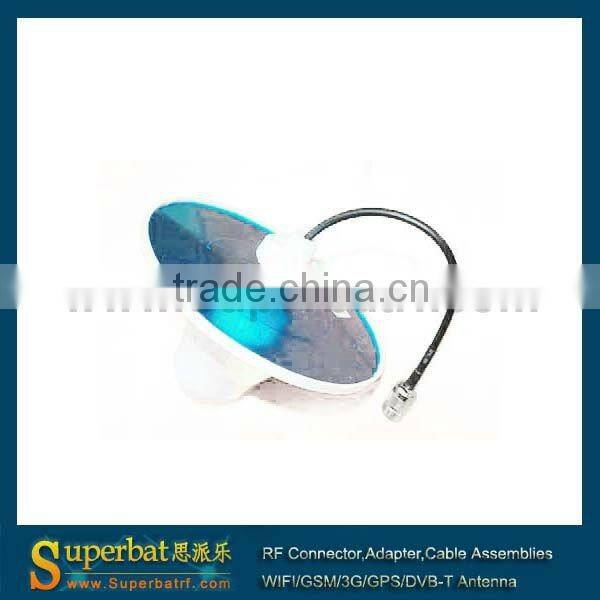

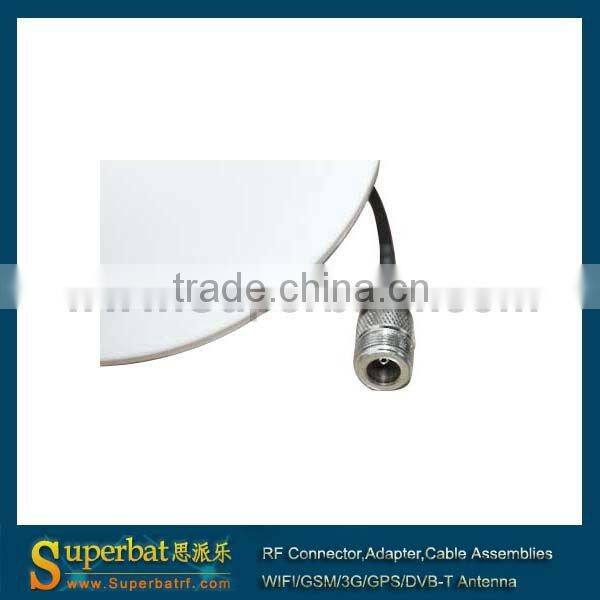

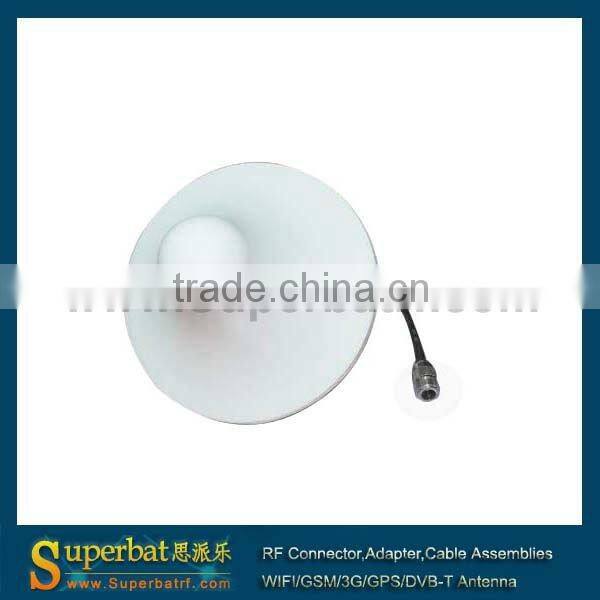

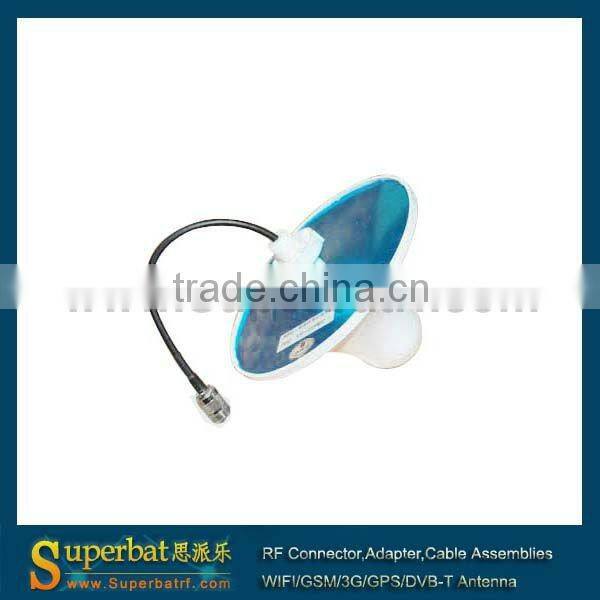

800-2500 MHz indoor wireless Omnidirectional Dome antenna series are constructed of white ABS plastic. The low profile attractive styling blends well in almost any office or home environment. Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings. The antenna comes with a bulkhead N Female connector standard which is long enough to mount thru thick ceiling.

Ceiling antenna is the ideal solution for offices hotels and rooms where we can mount our antenna on the ceiling for GSM and WIFI, the 3dbi of gain in 360 degrees omni direction gives very good coverage in large areas from the 800MHZ to 2.5GHz frequency range.

• Specifications :
• Model:3A3-880-N01SJ-030-16
• Frequency Range:806-960MHz/1710-2500MHz
• Bandwidth:100 MHz
• Gain:3 dBi
• F/B ratio:15 dB
• VSWR:≤1.5
• Max power:100 W
• Nominal Impedance:50Ω
• Antenna Connector:N-Type
  Notes:If you choose the SSMB/CRC9/TS9/MS147/MC-Card/SMA/MCX/RP-SMA/RP-TNC,The extra adapter or pigtail will be included in the package to fix your devices !

• Dimension:Φ180×90 mm
• Weight:0.2 KG

800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN

GSM 850/900: 824 - 960Mhz

GSM 1800/1900:1710 - 2500Mhz

UMTS: 1900 - 2170 MHz

800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN Ceiling

Features:
High gain omni-directional indoor antenna
Operates simultaneously on Cell, GSM, PCS, and ISM
Attractive housing ;
Surface mount in drop ceiling or solid ceiling

Applications:
Cellular applications
Wireless LAN systems
806 - 960MHz CELL/GSM
1710-1990MHz DCS/PCS/GSM
2300-2500MHz ISM (BT) & Wimax
