Specifications
1.Stamford type2.100%copper wire,100%output,2/3 winding
3.IP22/23,Insulated class H
4.CE ISO SGS BV approve
5.1year warraty
1, Alternator Details :
Alternator |
Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ |
Model |
FLD184J |
Rated Output(KVA/KW) |
31.3KVA/25KW(50HZ) ,37.5KVA/30KW(60HZ) |
Voltage |
400V/380V/240V/230/220V/can be indicated |
Frequency |
50Hz/60Hz |
Speed |
1500rpm/1800rpm/3000rpm/3600rpm |
Power Factor |
0.8/1 |
Insulation Class |
Class H |
Ingress Protection |
IP21/IP23 |
AVR(Option) |
SX460,SX440,MX341,AS440,SX440T,MX321 |
2. Features:
1. Optional permanent magnetic alternator , provide invariable excitation in any situation.
2. Easy to be connected with power network or other alternators. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial and marine standards.
3. Electrical Character:
Excitation system:The main stator supplies power to exciter stator via Automatic Voltage Regulator (AVR) .The output of exciter rotor is fed to the main rotor through a three phase full wave rectifier. There are varistors at the both ends of the rectifier for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss. Exciter stator is equipped with permanent magnetic steel in order to start up the alternator smoothly in any occasion.
4. Insulation & Immersion:
Insulation class H.
All wound components are made up with specialized material and immersed in varnish by especially technology. Resin matrix material is developed to strengthen the process and machinery intensity of windings and revolving parts for the alternator working under harsh environment.
5. Windings and electric features:
Standard 2/3 pitch windings design can eliminate the triple frequency harmonics on the voltage waveform which is the optimum design for trouble-free supply of non-linear loads.
6. Physical features:
Shaft & key
All generator rotors are dynamically balanced to better than BS6861: Part 1 Grade 2.5 for minimum vibration in operation. Two bearing generators are balanced with a half key.
Wiring terminal and terminal box
Standard alternator is 3 phase re-connectable to 12 ends brought out to the terminals, which are mounted on a cover at the non-drive end of the alternator .A sheet steel terminal box contains the AVR and provides ample space for customer’s wiring and gland arrangements. It has removable panel easy access.
Plywood packing case,fumigation-free .
Shipping :Not more than 7days since get full payment in Shanghai Port .

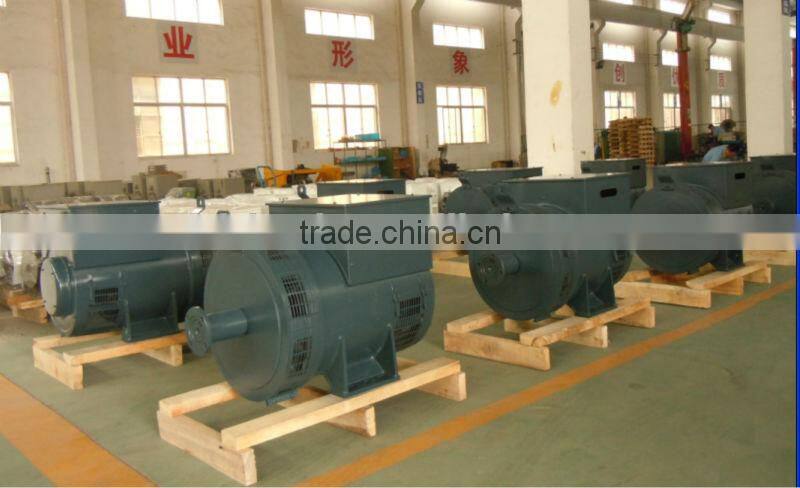

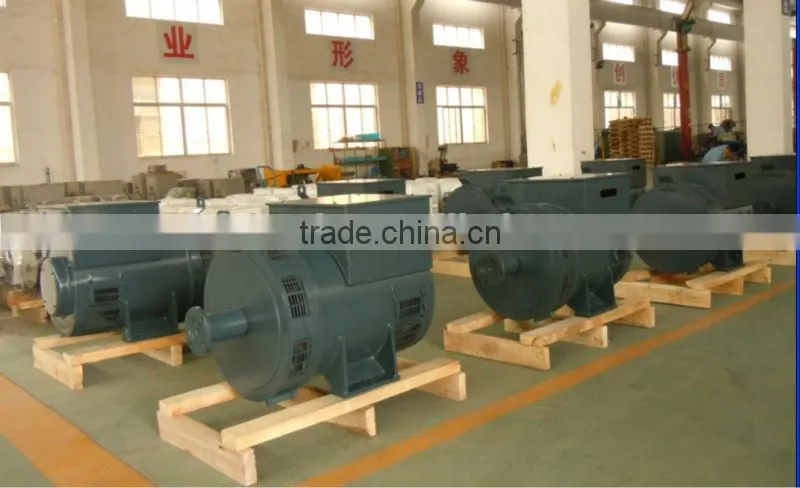

Reference Pictures
Jiangsu Farrand Alternator Technology Co., Ltd.located in Wuxi , Jiangsu ,which
is engaged in the research&development, design, producing, sale and maintain
services of generating equipment in past 7 years,we have great experience of export brushless alternators and engines , such as Cummins, Deutz, MTU, Perkins, Volvo, etc. generators (power: 5KW -1250KW; frequency: 50HZ -60HZ; RPM:1500 r/min, 1800 r/min, 3000 r/min and 3600 r/min; voltage: 110V-690V).
All brushless alternator/generator are designed in accordance to international standards. We can offer many kinds of generator to mtach famous brand
Workshop
Our company is located at No. 32, Jingxin Road, Xibei Industrial Park, Xishan District, Wuxi City, Jiangsu Province, enjoying convenient transportation. Our factory covers an area of about 5,000 square meters, with more than 30 sets of advanced production equipment. Our company focuses on technological innovation and development and scientific management.
We have great experience in OEM and ODM service all over the world. Welcome to visit us and further communication.
Farrand R&D Department :
We passed the CE and IS9001 certification. We have our quality control system and procedures to ensure that each alternator&egnerator with good quality before delivery .
Best quality Best service with Competitive price
Start your internet business with us here
The best power support for your future life
♥ Guarantee/Warranty And After-sale Service
♣ one year guarantee for whole machine except of tube and lens
♣ 24 hours technical support by e-mail
♣ calling or door-to-door service
♣ use-friendly English software,user manual and detailed Videos/CD
