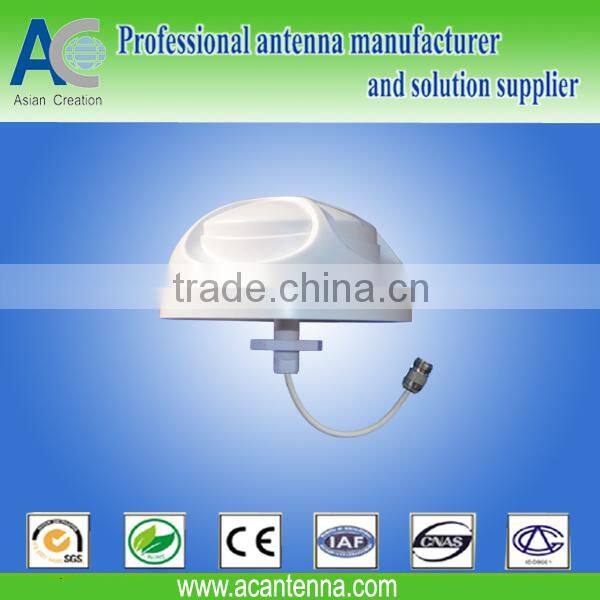

LTE extremely light antenna
Applications:
AMPS/GSM/DCS/PCS/UMTS/3G Indoor Coverage .Broad Band
Low VSWR,Small Size, Low Profile, Good
Appearance,Ceiling Mount
Electrical Specifications | |
Model | AC-D8027I09 |
Frequency Range | 806-960/1710-2700MHz |
Band width | 154/ 990MHz |
Gain | 3dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50ohm |
Operating Temperature | -40℃ to+70℃ |

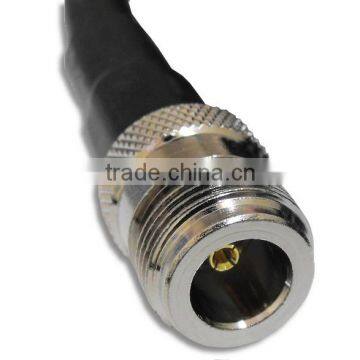

Connector | N Female |
Cable Type | RG 58/U |
Cable Length | 30cm |
Mount way | Ceiling Mount |
Mechanical Specifications | |
Antenna Dimension | Φ170×85mm |
Weight | 250g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
