Home > Electrical & Electronics > Passive Components > Capacitor > 433mhz rf Module Wireless Transceiver With Antenna

433mhz rf Module Wireless Transceiver With Antenna

Name: 433mhz rf Module Wireless Transceiver With Antenna
Brand: superbatrf
SKU: 121479183

433mhz rf Module Wireless Transceiver With Antenna thumbnail-1

433mhz rf Module Wireless Transceiver With Antenna photo-1

US$ 18 - 25 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

superbatrf

Model Number:

E-1629

Contact Supplier Request Quote Chat Now

Shenzhen Superbat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name superbatrf

Model Number E-1629

Specifications

1.433mhz rf module
2.TI-Chipcon
3.transmission distance reached to be 300 meters
4.Wireless wake-up functionas

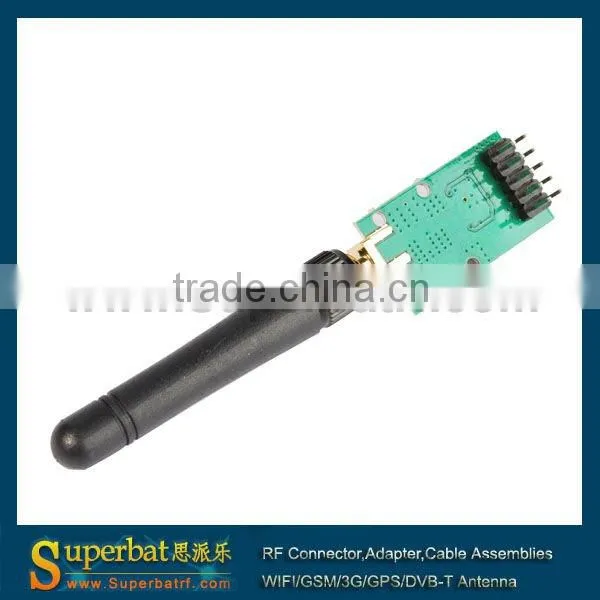

433MHz Module CC1101 RF Transceiver matched with Antenna RF1629

Features:

Using high-performance TI-Chipcon's CC1101 radio chip,the maximum transmission data rates up to 500Kbps,and can modify the software Porter rates, transmission distance reached to be 300 meters,having wireless wake-up functions.sensitivity to-110dBm, high reliability,
Work on the 433MHz band
Operating voltage: 1.8V ~ 3.6V, recommend close to 3.6V, but not more than 3.6V (3.3V is recommended )
The maximum operating rate of 500kbps, support for 2-FSK, GFSK and MSK modulation
High sensitivity (1.2Kbps under-110dBm, 1% packet error rate)
The built-in hardware-to-multipoint communication CRC error detection, and address control
A lower current consumption (RX in, 15.6mA, 2.4Kbps, 433MHz)
Programmable control of output power, for all the support frequencies of up to +10 dBm
Wireless wake-up functionality to support low-power electromagnetic activation, wireless wake-up low-power sleep state of the equipment
Support the transmission channel before the auto-clean-up visits (CCA), the Carrier Sense System
Fast frequency changes brought about by a suitable synthesizer frequency hopping systems
module can be software-based address, software programming is very convenient
Standard DIP spacing interfaces for embedded applications
Separate 64-byte RX and TX data FIFO
Transmission Distance:to the actual transmission distance 250-300 meters (depending on the specific situation of the environment and communication baud rate settings, etc. may be)
Module Size: 29mm * 16mm (the size without including-SMA head and antenna)
