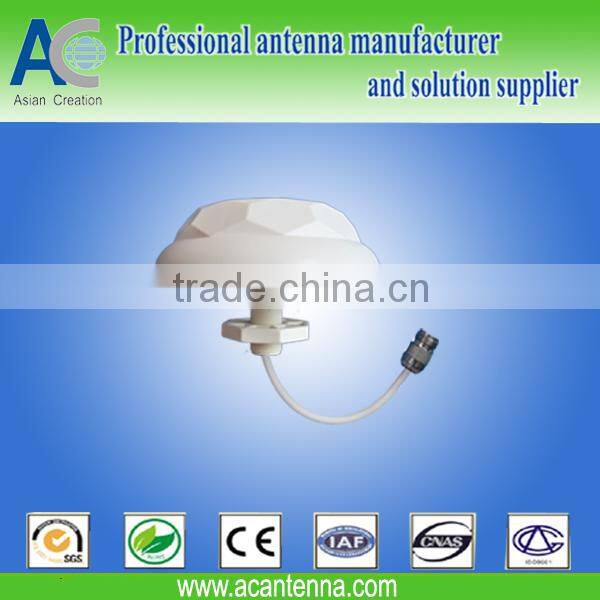

home antenna
Applications:
AMPS/GSM/DCS/PCS/UMTS/3G system.
Features:
Indoor Ceiling Antenna, the use of broadband
technology designed for GSM signals transmitted
spread spectrum communication system.The antenna
for the nut installation extremely easy to use.
Electrical Specifications | |
Model | AC-DGC-I03 |
Frequency Range | 1710-2500MHz |
Gain | 3dBi |
VSWR | ≤1.5 |
Polarization | Vertical |
Impedance | 50ohm |
Maximum Input Power | 50W |
Cable type | RG58U |
Length | 30CM |
Connector | N Female |
Operating Temperature | -40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension | Φ120×40mm |
Weight | 200g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
