2.4GHz 14dBi WiFi Antenna Directional Panel N Female

Specifications

2.4GHz 14dBi Gain WiFi Directional Panel Antenna N female

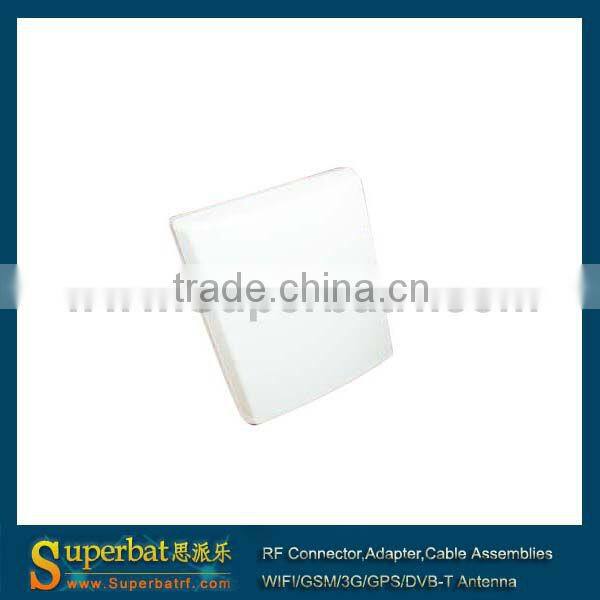

This flat panel directional antenna offers high gain in a low profile package. This very durable and weatherproof antenna is made to last a long life. The antenna comes with an industry standard N Female connector to ensure compatibility.

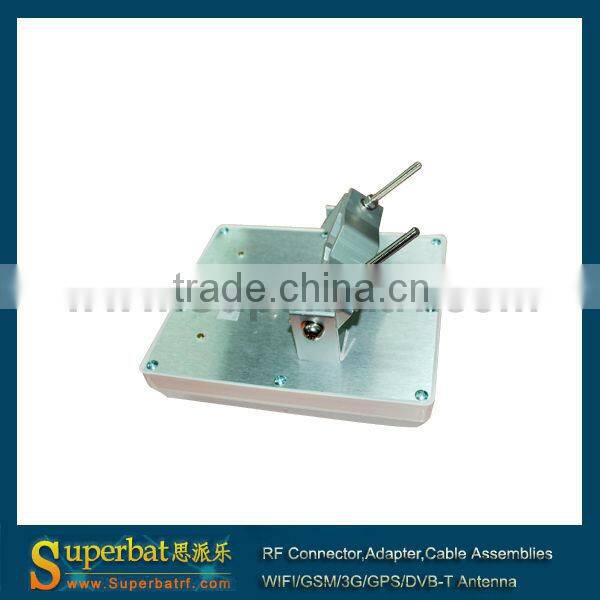

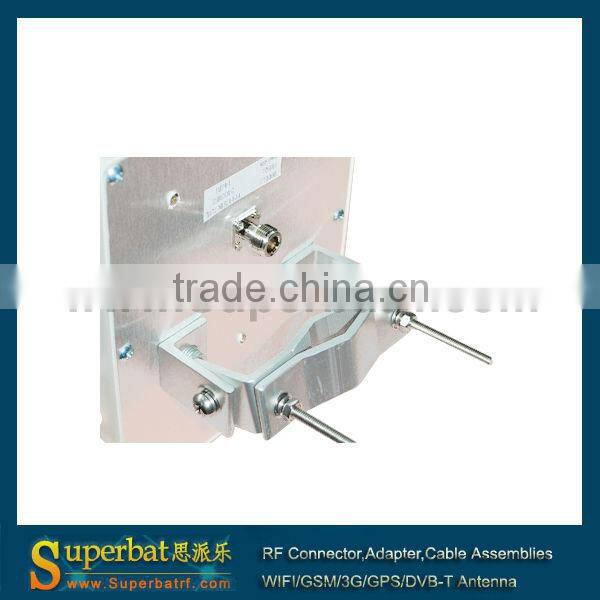

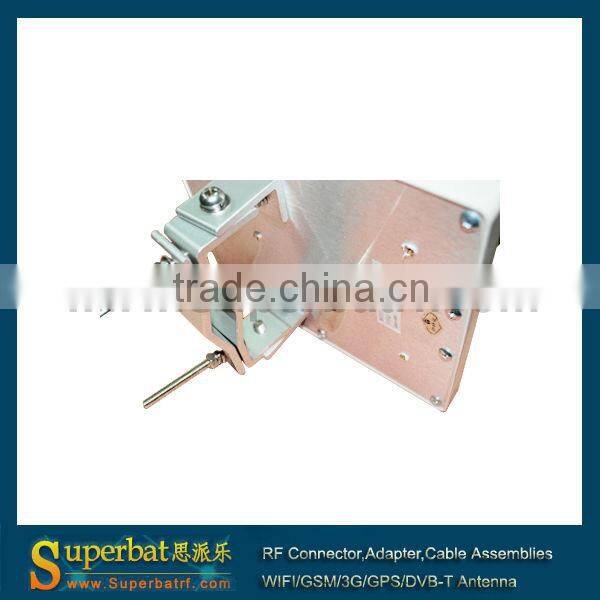

The antenna comes with an easy to install mounting plate. It allows for post mounting or surface mounting to a wall or side of a building .

This high performance low profile, panel antenna offers a powerful 14dBi gain in a compact 176mm x 208 mm x 20mm

Box including:

1 X 14dBi gain directional panel antenna

1 X mounting bracket.

Technical Specifications

Frequency Range:2.4 GHz

Input Impedance:50 Ohm

V.S.W.R.:<=1.5

Gain:14 dBi

Polarization:Vertical, Linear

Max. Input Power:50 W

Connector location:Back

Connector:Standard N Female Connector

Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!

Mechanical Specifications

Dimension:176mm X 208mm X20 mm

Weight:Approx 560g

Radiating Element Material:CuAg

Reflector Material:Electrolysis Board

Radom material:ABS

Horizontal Beamwidth:13 degrees

Vertical Beamwidth:17.5 degrees
