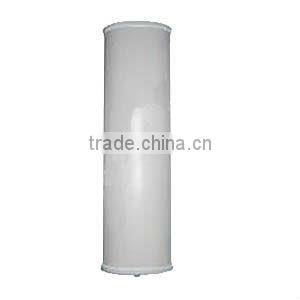

GSM Outdoor Flat Panel Antenna
- FO SHAN
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | AC | |
| Model Number | AC-D90V15-65 |
1pcs per box
Product Description
Specifications
GSM Outdoor Flat Panel Antenna1.Frequency Range:800-900MHz
2.Gain:15dBi
3.Connector:N Female
GSM Outdoor Flat Panel Antenna
Applications:
AMPS800/GSM900 system,base station or repeater,Antennas Sector coverage
Features:
broadband high gain, low VSWR provides an adjustable ,angle of pole mounting kit
Electrical Specifications | |
Model | AC-D90V15-65 |
Frequency Range | 800-900MHz |
Gain | 15dBi |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beamwidth | 60° |
Vertical Beamwidth | 16° |
F/B Ratio | >25dB |
Impedance | 50ohm |
Maximum Input Power | 200W |
Connector | N Female |
Operating Temperature | -40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension | 1230×260×120mm |
Weight | 8.8kg |
Mounting Mast Diameter | Ø50~Ø115 mm |
Rated wind velocity | 60m/s |
