Home > Products > GSM Antennas > 12dBi Outdoor Directional Sector GSM Antenna Factory

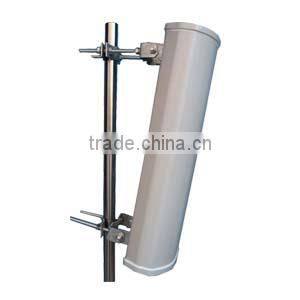

12dBi Outdoor Directional Sector GSM Antenna Factory
- FOSHAN
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | AC | |
| Model Number | AC-D90P12-120 |
1pcs per box
Product Description
Specifications
12dBi Outdoor Directional Sector GSM Antenna Factory1.Frequency Range:824-960MHz
2.Gain:12dBi
12dBi Outdoor Directional Sector GSM Antenna Factory
Applications:
AMPS800/GSM900 system base station or repeater,Antennas Sector coverage
Features:
broadband high gain,
low VSWR provides an adjustable
angle of pole mounting kit
Electrical Specifications | |
Model | AC-D90P12-120 |
Frequency Range | 824-960MHz |
Gain | 12dBi |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beamwidth | 120° |
Vertical Beamwidth | 15° |
F/B Ratio | >25dB |
Impedance | 50ohm |
Maximum Input Power | 200W |
Connector | N Female |
Operating Temperature | -40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension | 1280×260×120mm |
Weight | 5.3kg |
Mounting Mast Diameter | Ø50~Ø115 mm |
Rated wind velocity | 60m/s |
Company Profile

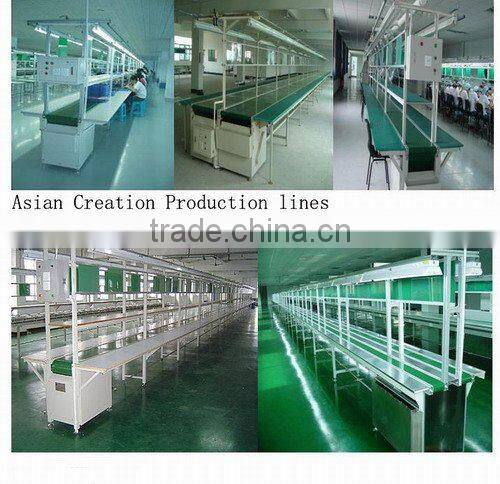

Asian Creation Communication co.,Ltd is a Professional Antenna Manufacturer in China, established in 2001. Based on a 5000 square metre site, Asian Creation have 110 employees ,now we has 6 engineers, 5 senior technicians and a regular company structure. Asian Creation Communication Equipment Factory is a hi-tech enterprise specialized in the development and production of communication antennas; our leading portfolio are the high quality antenna products, including wlan antenna, wifi antenna, wimax antenna, wireless antenna, MIMO antenna, UHF/VHF antenna, GSM/UMTS/AMPS antenna, 2.4GHz antenna, 5.8GHz antenna, LTE antenna, 3G antenna, DVB antenna, GPS antenna, RFID antenna, etc.. We also supply a full range of antenna components: power splitters, couplers, surge protectors, router enclosure etc. To guarantee the quality and deliver time,our company have 8 production lines and uses advanced testing equipment, such as HP87 network analyzer, frequency spectrum analyzer, standard microwave anechoic chamber, antenna near field-testing After 5 years of development, our existing distributors located in the United States, Lebanon, Israel, Germany, Italy.etc. . System and far field automatic testing systems amongst other standard testing equipments. Our manufacturing standards of wlan antenna, wifi antenna and wimax antenna conform to ISO9001:2000. The strong growth of our wlan antenna, wifi antenna and wimax antenna products in the communication area demonstrate our commitment to strict quality management standards, first class equipment performance professionals providing technical support and efficient after services to all our customers.
