Specifications
1.residential solar power2.Rated Voltage:1000V
3.Diodes Details:2PCS
4.Overall dimensions:59.5*59.5*21mm
5.Rated Current:7A

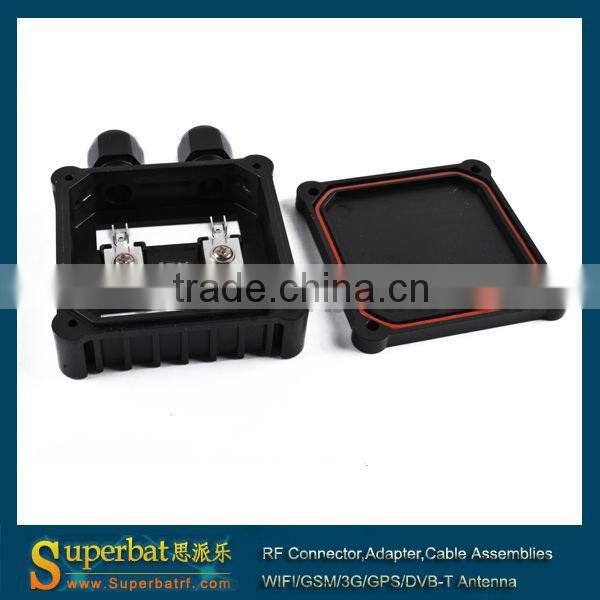

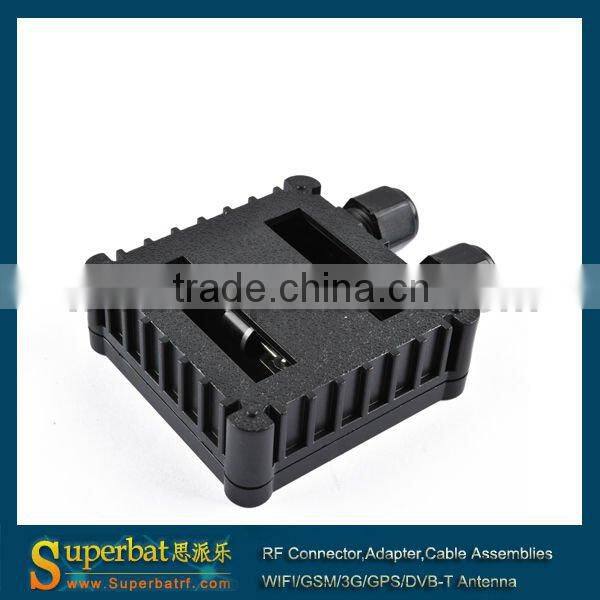

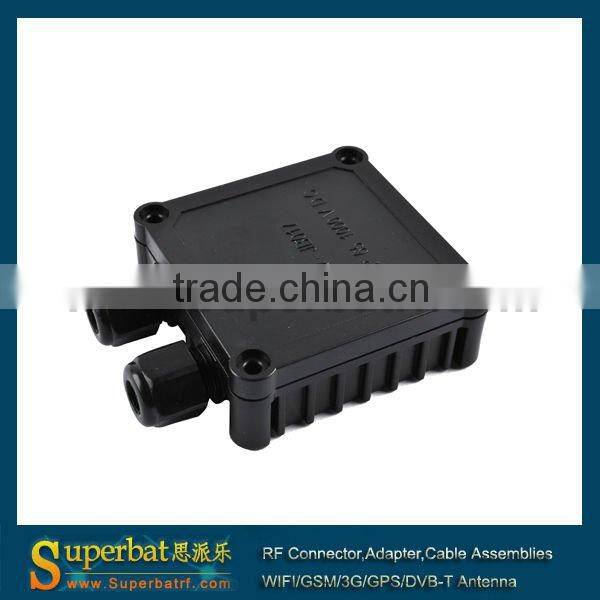

PV Solar Junction Box for Lowpower PV module,2rails # C01
Model: PV-2123-JB017-2
The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.
Main technical parameters
| Current for PV Module | 7A |
| Rated Voltage | DC 1000V |
| Protection Degree | IP65 |
| Power Capacity | 40-50W Solar panel |
| Touch Protection Class | Ⅱ |
| Temperature Range | -40°C ~ 85°C |
| Diodes Details | 1pcs |
| Number of terminals | 2 rails |
| Wire Size | 1.5mm2__ 4mm2 or1.5mm2__ 2.5mm2 |
| Contact Resistance | <5 Ohm |
| Flame Class | UL94-V0 |
| Contact Material | Copper |
| Insulation Material | PPO |
| Overall dimensions | 59.5*59.5*21mm |
| N.W(KG) | 0.050KG |
Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3. Excellent sealing performance, waterproof and dustproof rating up to IP65.
4 With one or two output hole,provide various wire connect way.
These cables and connctor will be fitted to Juncation Box:
Cable/wire: 1.TUV & UL certificated PV cable 1*2.5mm2
2.TUV & UL certificated PV cable 1*4mm2
Shiping inlcuded : 1pcs Solar Junction Box
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
Please note these information
